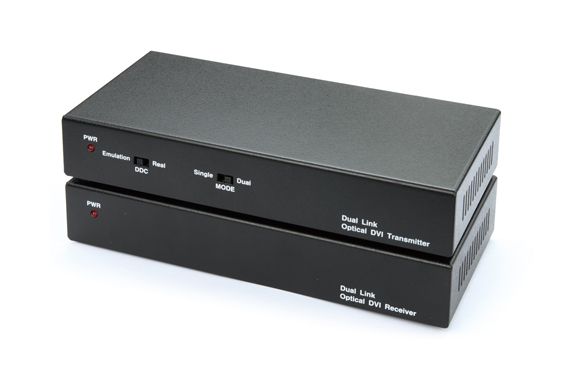

OPHIT DQL DVI dual link fiber optic 7ch extender
OPHIT DQL DVI dual link fiber optic 7ch extender
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
OPHIT’s DQL with fiber optical cable system let your Dual digital flat panel display extend up to 100 meters (330 feet) away from host by TMDS digital signal transmission.

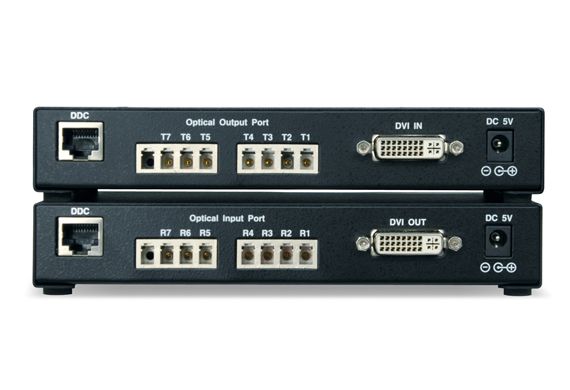

• Connector (transmitter) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Connector (receiver) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Optic Fiber : 7ch / Multi-mode(50/125μm)
• Video Bandwidth (pixel clock): Single link (max 225MHz) / Dual link
• Supporting Resolution & Distance
- WQXGA (2560 x 1600) @ 60Hz / 100M (330ft)
• Power Consumption (transmitter) : Single link 1.0W (max) / Dual link 1.4W (max)
• Power Consumption (receiver) : 2.5W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 180W x 90D x 30H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
