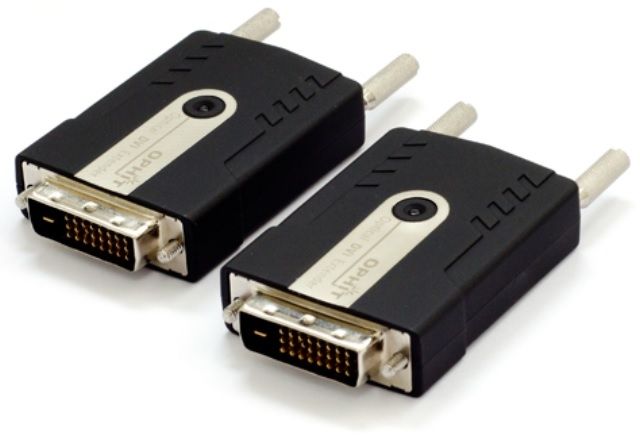

OPHIT DOL-TX DVI Fiber Optic 1 Channel Extender
OPHIT DOL-TX DVI Fiber Optic 1 Channel Extender
- • Ophit DOL-TX / DOLTX DVI Fiber Optic 1-Channel Extender
- • Sales, replacement and exchange
- • New and refurbished units, call for availability
- • Part# DOL-TX / DOLTX, Sales and Exchange
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Ophit DOL-TX (DOLTX) DVI Fiber Optic 1-Channel Extender. Ampronix offers new and refurbished Ophit DOL-TX units for sales, replacement and exchange. Both the DOL-TX and DOLTX model numbers are supported.

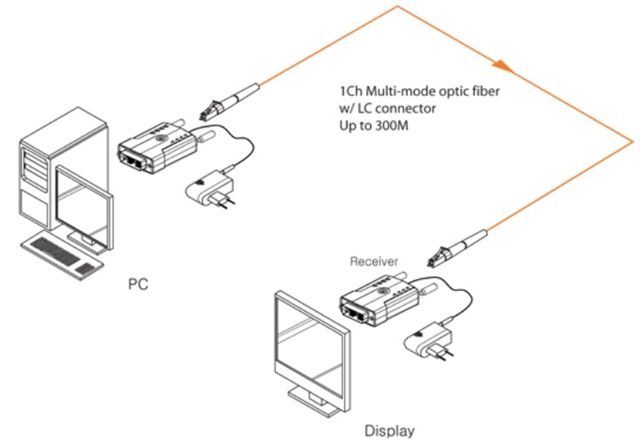

DOL, Optical DVI extension module, is designed to let digital flat panel display extend over 300meters(1,000ft) away from host based on DVI Standard by optical transmission. It can transmit EDID data and HDCP over fiber in real time. DOL can be used with DVI device as well as HDMI standard device such as Blu-ray player, PS-3 as well as DVI devices.

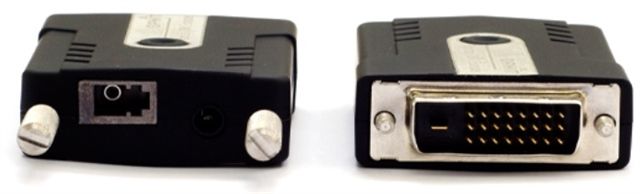

- Connector (transmitter) : DVI-D (male), LC connector (female)
- Connector (receiver) : DVI-D (male), LC connector (female)
- Optic fiber : 1ch / Multi-mode(50/125μm)
- Pixel Clock : 225MHz (single link)
- Supporting Resolution & Distance
- WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft) - 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)
- Power Consumption (transmitter) : 2.5W (max)
- Power Consumption (receiver) : 2.0W (max)
- Power Supply (transmitter) : 100~240V DC 5V, 2A
- Power Supply (receiver) : 100~240V DC 5V, 2A
- Dimensions : 82W x 41D x 15H (mm)
- Operating Temperature range : 0°C ~ 50°C
- Storage Temperature range : -20°C ~ 70°C
Model: DOL-TX / DOLTX
Related: Video Solutions.
Frequently asked questions about the Ophit DOL-TX
Is the Ophit DOL-TX DVI Fiber Optic 1-Channel Extender available for sales, replacement and exchange?
Yes. Ampronix offers new and refurbished units of the Ophit DOL-TX, plus replacement and exchange, subject to availability. Both the DOL-TX and DOLTX versions are covered. Call Ampronix for current availability and a quote.
Where can I buy a Ophit DOL-TX DVI Fiber Optic 1-Channel Extender?
Ampronix sells the Ophit DOL-TX (DOLTX). Call Ampronix for current availability, pricing and lead time.
Can I exchange or replace my DOL-TX?
Yes. Ampronix offers replacement and exchange options for the DOL-TX. Call Ampronix to confirm availability and pricing.
Is the DOL-TX the same as the DOLTX?
Yes. DOL-TX and DOLTX are two ways of writing the same model number, and Ampronix supplies both.
What should I have ready when I request a quote for the DOL-TX?
Have the model number (DOL-TX or DOLTX) and the quantity you need, and whether you need a unit or an exchange. Ampronix will confirm availability and pricing.
