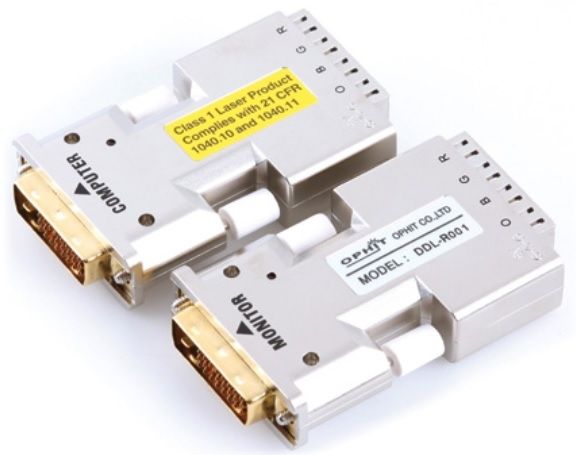

OPHIT DDL-TX DVI Fiber Optic 4 Channel Extender
OPHIT DDL-TX DVI Fiber Optic 4 Channel Extender
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
SKU: OPHIT-DDLTX
Couldn't load pickup availability
Details
Details

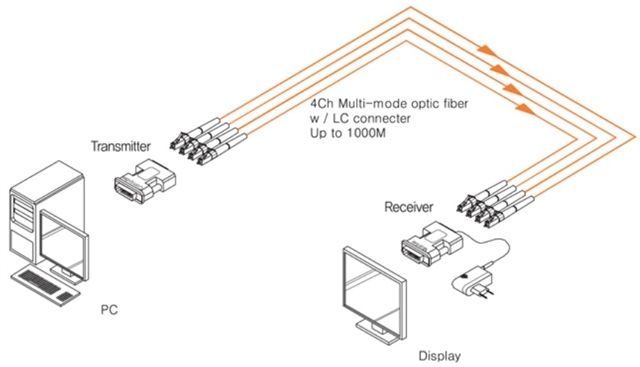

OPHIT’s DDL with fiber optical cable system let your digital flat panel display extend up to 1,000meters (3,300 feet) away from host by TMDS digital signal transmission.

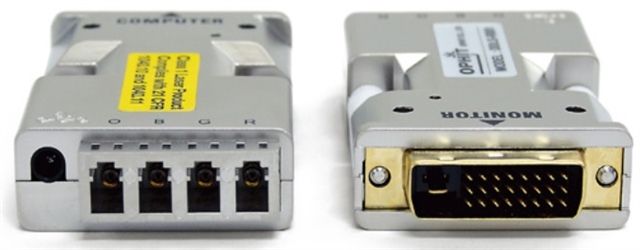

- Connector (transmitter) : DVI-D (male), LC connector (female)
- Connector (receiver) : DVI-D (male), LC connector (female)
- Optic fiber : 1ch / Multi-mode(50/125μm)
- Pixel Clock : 165MHz (single link)
- Supporting Resolution & Distance
- WUXGA (1920 x 1200) @ 60Hz / 500M (1,650ft)
- SXGA (1280 x 1024) @ 60Hz / 1,000M (3,300ft)
- Power Consumption (transmitter) : 0.65W (max)
- Power Consumption (receiver) : 1.15W (max)
- Power Supply (transmitter) : Optional
- Power Supply (receiver) : 100~240V DC 5V, 2A
- Dimensions : 40W x 70D x 15H (mm)
- Operating Temperature range : 0°C ~ 50°C
- Storage Temperature range : -20°C ~ 70°C
