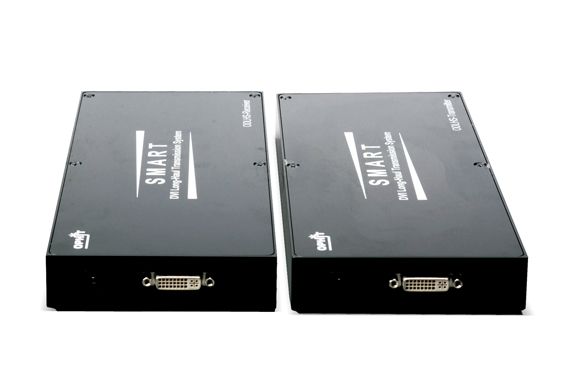

OPHIT DAS DVI long distance fiber optic 1ch extender
OPHIT DAS DVI long distance fiber optic 1ch extender
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

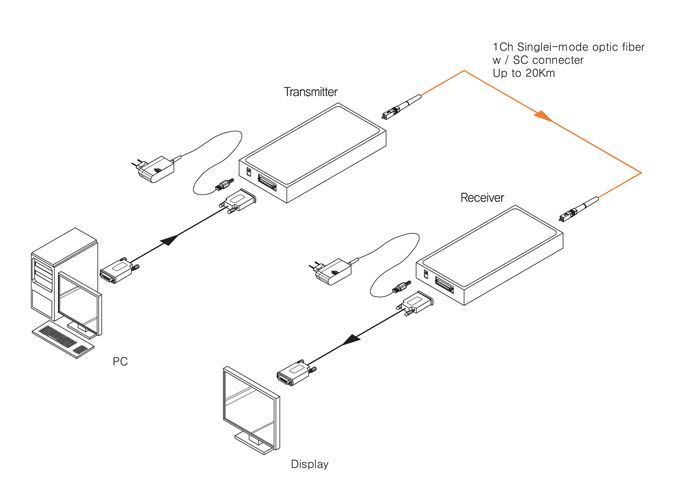

OPHIT’s DAS with single channel optical port transmits your video signal in computer or workstation over 20km for long distance transmission with based on DVI standard without any degradation of video quality.
• Connector (transmitter) : DVI-I (female), SC connector (female)
• Connector (receiver) : DVI-I (female), SC connector (female)
• Optic Fiber : 1ch / Single-mode(9/125㎛)
• Video Bandwidth (pixel clock) : 165MHz (single link)
• Supporting Resolution & Distance
- WUXGA (1920 x 1200 )@ 60Hz / 20Km (66,000ft)
• Power Consumption (transmitter) : 0.25W (max)
• Power Consumption (receiver) : 0.25W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 300W x 125D x 30H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
