Manufacturer: NEC | Model: MultiSync P462 | Part number: 60003172

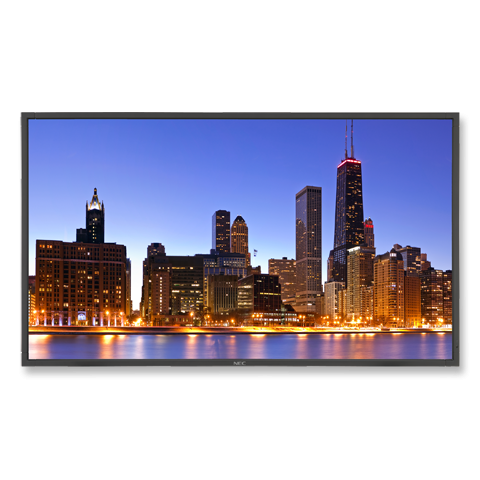

The NEC MultiSync P462 is a refurbished 46-inch professional large format LCD display built for 24/7 continuous operation in demanding commercial and clinical environments. Part number 60003172, the P462 pairs a Full HD 1920 x 1080 S-PVA panel with 500 cd/m2 brightness (700 cd/m2 max) and a 3500:1 contrast ratio, giving clear, stable images in hospital hallways, control rooms, and high-traffic public spaces. Ampronix supplies this NEC MultiSync P462 refurbished and tested.

Key capabilities

• Full HD 1920 x 1080 S-PVA panel with 178 degree horizontal / 178 degree vertical viewing angle
• 500 cd/m2 brightness (700 cd/m2 max) and 3500:1 contrast ratio for high-visibility 24/7 display

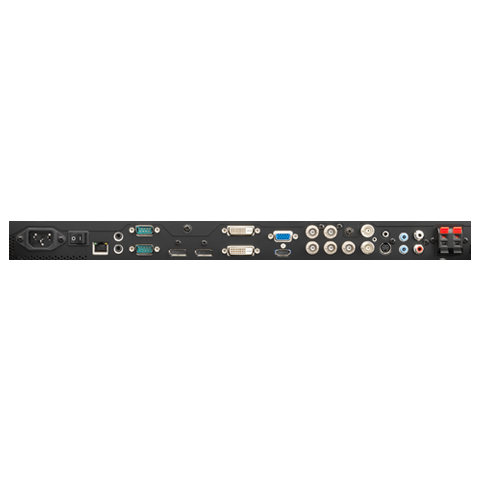

• DisplayPort, DVI-D, HDMI 1.3, RGBHV, Component/Composite, and S-Video inputs with LAN/RS-232 control
• Dual option slot (OPS) supports a built-in PC, media player, CAT5 receiver, or HD-SDI board
• DICOM support for clinical image review applications
• Daisy chain via DVI (up to 9 displays) and DisplayPort (up to 100 displays) for video wall builds

Where it is used

The NEC MultiSync P462 60003172 is deployed in hospital lobbies and patient wayfinding displays, nurse station dashboards, control rooms, conference rooms, reception areas, and DICOM-compatible clinical review stations. Its 24/7-rated panel and OPS expansion slot also support retail signage, transport information displays, and video wall installations built from multiple P462 units.

Specifications at a glance

• Part number: 60003172
• Resolution: 1920 x 1080 Full HD, 60 Hz
• Brightness: 500 cd/m2 typical (700 cd/m2 max) | Contrast: 3500:1

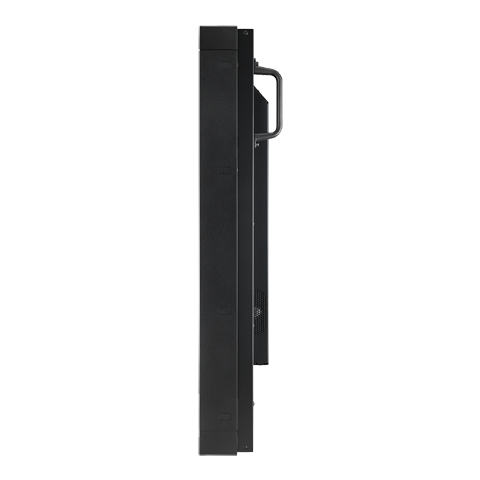

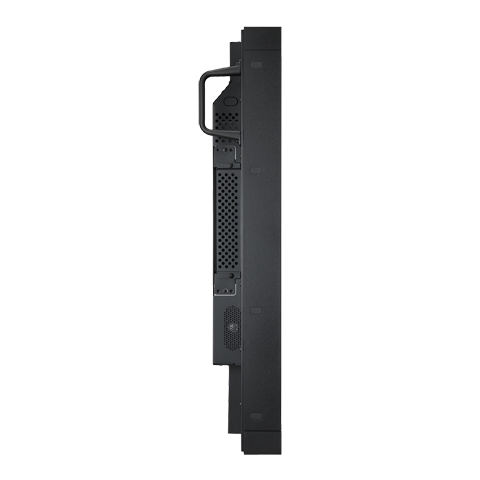

• Dimensions (without stand): 1,055.4 x 608.6 x 103 mm | Weight (without stand): 23.8 kg (52.5 lb)
• Power consumption: 155 W typical / 315 W max
• VESA mount: 300 x 300 mm (4-hole, M6)

Frequently asked questions

• Is the NEC MultiSync P462 60003172 available refurbished? - Yes. Ampronix supplies the NEC MultiSync P462 as a tested, refurbished unit since the model has been discontinued by NEC/Sharp NEC.
• How does the NEC MultiSync P462 compare to the P402 and P552? - The P462, P402, and P552 share the same S-PVA panel technology, OPS option slot, and DICOM support, differing mainly in screen size: 40-inch (P402), 46-inch (P462), and 55-inch (P552).
• Does Ampronix service the NEC MultiSync P462? - Yes. Ampronix offers professional sales, service, repair, and exchange replacement support for the NEC MultiSync P462 and the broader NEC MultiSync display line.

Ampronix supplies the NEC MultiSync P462 and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader NEC MultiSync display line.

Also referenced as: NEC MultiSyncP462, NEC-MultiSync-P462, NEC P462, MultiSync P-462, part number 60003172, order code 60003172.
