Manufacturer: NEC | Model: NL8048BC19-02 | Part number: NL8048BC19-02 (also written NL8048BC1902)

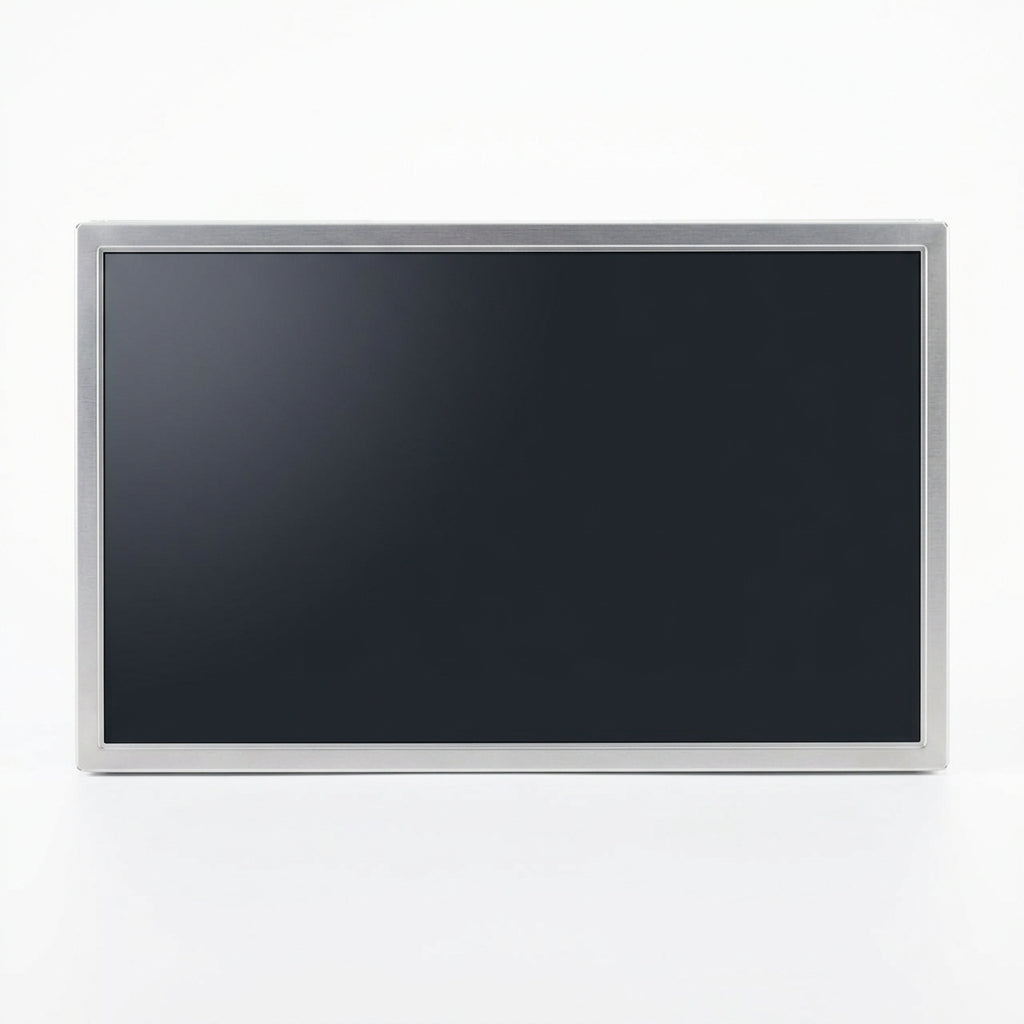

The NEC NL8048BC19-02 is a 7.0 inch WVGA TFT LCD panel with an 800 x 480 pixel resolution, a single-channel LVDS interface and an LED backlight. Ampronix supplies the NEC NL8048BC19-02 (NL8048BC1902) as a refurbished replacement panel for equipment makers, biomed teams and service shops that need to restore a compact display without redesigning the host system.

Key capabilities

• 7.0 inch diagonal with an 800 x 480 WVGA pixel grid and a 152.4 x 91.44 mm active area.
• 400 cd/m2 typical luminance and 1000:1 typical contrast ratio for a clear image in lit rooms.
• Wide viewing angle of 80 degrees typical in all four directions.
• One-channel LVDS interface, 20 pins, supporting 6-bit or 8-bit color (up to 16,777,216 colors).
• LED backlight rated for 50,000 hours, supplied without an LED driver.
• Slim 170.0 x 111.0 x 8.5 mm module weighing about 165 g typical.

Where it is used

The NL8048BC19-02 is a compact industrial panel used in handheld and bench instruments, portable test equipment, point-of-sale and control terminals, and embedded operator displays. Service teams replace it when a unit shows a dim backlight, dead lines, or a cracked screen on the original 7 inch NEC module. Confirm the LVDS pinout and mounting of your host device against the NL8048BC19-02 outline before ordering.

Specifications at a glance

• Part number NL8048BC19-02 (NL8048BC1902), 7.0 inch, 800 x 480 WVGA
• 400 cd/m2 typical, 1000:1 contrast, 18 ms typical response time
• 1-channel LVDS, 20 pins, 6/8-bit, 3.3 V typical supply
• Operating temperature -20 to 70 C, storage -30 to 80 C
• Outline 170.0 x 111.0 x 8.5 mm, 165 g typical (175 g maximum)

Frequently asked questions

• Is the NEC NL8048BC19-02 NL8048BC1902 available refurbished? - Yes. Ampronix supplies the NEC NL8048BC19-02 as a refurbished unit. Contact Ampronix for current availability and pricing.
• What is the difference between the NL8048BC19-02 and the NL8048BC19-02C? - Both are 7.0 inch 800 x 480 NEC panels, but they are separate part numbers. Match the exact suffix to your original panel before ordering.
• What interface does the NL8048BC19-02 use? - A single-channel 20-pin LVDS interface supporting 6-bit or 8-bit color, with a 3.3 V typical panel supply.
• Does Ampronix repair or exchange the NEC NL8048BC19-02? - Yes. Ampronix offers sales, service, repair and exchange replacement for this panel.

Ampronix supplies the NEC NL8048BC19-02 and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader NEC display panel line.
