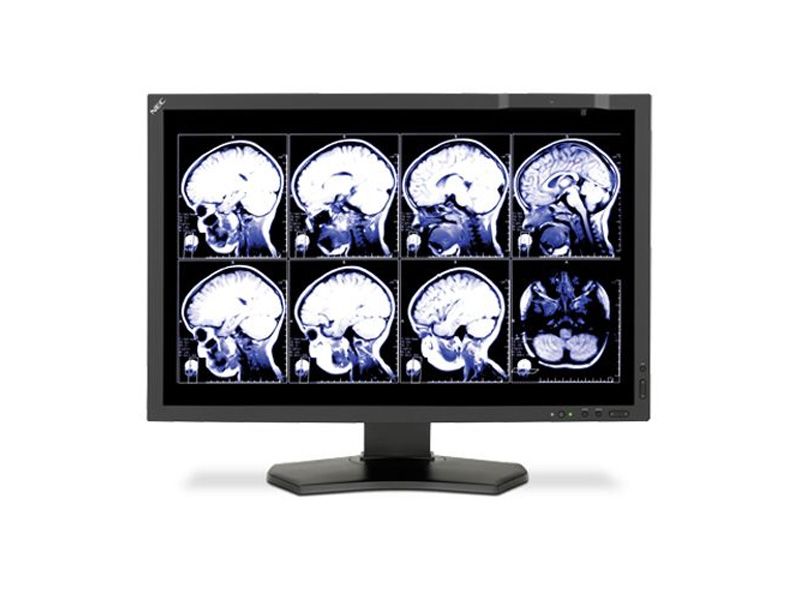

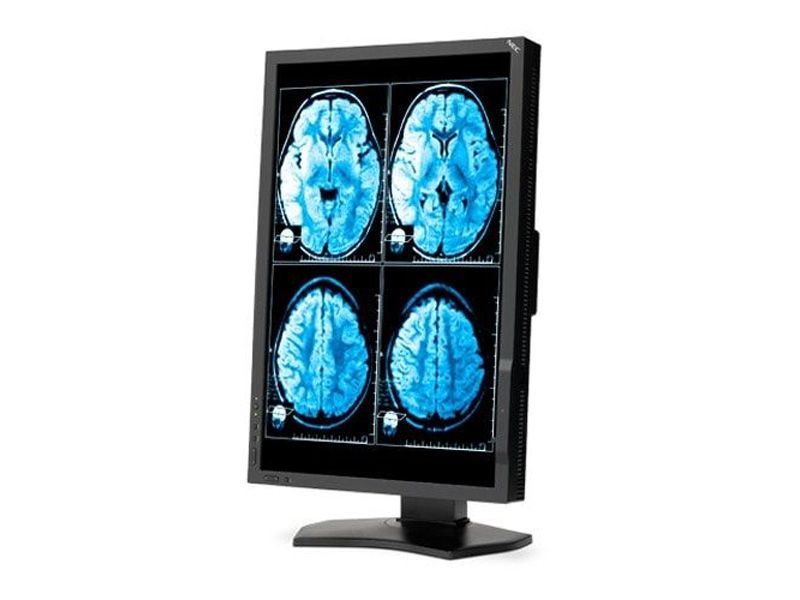

NEC MD242C2 2.3MP Clinical Review Display Monitor

Details

The 24 inch NEC MultiSync MD242C2, a referral-grade widescreen diagnostic display, is designed for the demanding needs of healthcare professionals in medical imaging and PACS. This 2.3-megapixel model has an IPS panel to provide precise color reproduction and wide viewing angles, as an integrated front sensor which constantly monitor and adjust brightness to maintain the factory DICOM GSDF calibration. The display offers DisplayPort, DVI-D, HDMI and VGA inputs, built-in three-port USB hub with DisplaySync Pro, 14-bit lookup tables (LUTs) with 1024 levels of gray for smooth images and hardware calibration.

Specifications

Manufacturer: NEC

Condition: Refurbished

Modality: Clinical Review

Calibrated Luminance: 180 cd/m²

Certifications: UL60950-1, UL60601-1, PSB, SASO, CCC, GOST/PCT, CE-MDD, NOM, TUV GM, FCC Class B, C-tick, FDA 510(k) peniding, VCCI class 2, RoHA, AAPM-TG18, WEEE, DIN V6868-57

Contrast Ratio: 1000:1

Dimensions (With Stand): 21.9 x 14.9-20.8 x 9 in. / 556.3 x 378.5-528.3 x 228.6mm

Dimensions (Without Stand): 21.9 x 14.3 x 3.3 in. / 556.3 x 363.2 x 83.8mm

Maximum Luminance: 350 cd/m²

Mounting Options: 100 x 100mm

Pixel Pitch: 0.27mm

Power Consumption: 29.5W

Power Save Mode: 0.2W

Response Time: 8ms

Screen Size: 24 Inch

Warranty: 5 years parts and labor including backlight

Weight (With Stand): 10.2 kg, 22.5 lbs

Weight (Without Stand): 6.8 kg, 15.0 lbs

Resources

• NEC-MD242C2-Spec-Brochure.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

NEC MD242C2 2.3MP Clinical Review Display Monitor

Name: NEC MD242C2 2.3MP Clinical Review Display Monitor
Brand: NEC
SKU: NEC-MD242C2
Availability: InStock

Manufacturer: NEC

Type: Clinical Review Displays

NEC MD242C2 24-inch Medical Review Display with front sensor

• Superior screen performance (1000:1 contrast ratio, 1920 x 1200 native resolution, 350 cd/m² 180 cd/m² calibrated brightness)
• Out-of-the-box calibration to the DICOM grayscale display function for luminance
• Uniformity control provides accurate imaging across the screen
• Integrated three-port USB 2.0 hub with DisplaySync Pro easily shares your keyboard & mouse between two computers
• Quick QA feature for easy DICOM conformance check

This model is out of production
