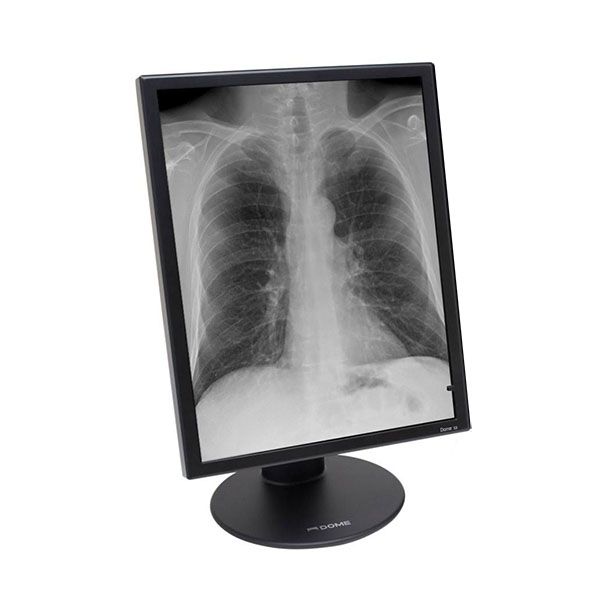

NDSsi DOME S3 Diagnostic Display Monitor

Details

NDSsi DOME S3 3MP Diagnostic display monitor. Ampronix offers refurbished NDSsi DOME S3 units, service and repair, and replacement and exchange.

The NDSsi Dome S3 is an innovative display system equipped with Dome RightCheck front sensor technology. The S3 delivers high luminance and contrast and superior image quality ideal for diagnostic imaging.

Ampronix can quote the NDSsi DOME S3 as a unit, a repair or an exchange. Call with the model number (S3) and your application for current availability.

Model: S3

Frequently asked questions about the NDSsi DOME S3

Is the NDSsi DOME S3 diagnostic display monitor available for sales, service and repair, replacement and exchange?

Yes. Ampronix offers refurbished units of the NDSsi DOME S3, plus service and repair, replacement and exchange, subject to availability. Call Ampronix for current availability and a quote.

Does Ampronix repair the NDSsi DOME S3?

Yes. Ampronix provides service and repair for the S3 with free evaluation and fast turnaround. Call Ampronix for a repair quote.

Can I exchange or replace my S3?

Yes. Ampronix offers replacement and exchange options for the S3. Call Ampronix to confirm availability and pricing.

Where can I buy a NDSsi DOME S3 diagnostic display monitor?

Ampronix sells the NDSsi DOME S3. Call Ampronix for current availability, pricing and lead time.

Should I repair or replace my S3?

Ampronix can quote repair, exchange or replacement for the S3 so you can compare options. Call Ampronix for a free evaluation.

What should I have ready when I request a quote for the S3?

Have the model number (S3), the serial number from the unit label if you have one, and whether you need a unit, a repair or an exchange.

What are the key features of the NDSsi DOME S3?

Key points for the NDSsi DOME S3: 3MP, High Brightness, DICOM Part 14, 10-bit Grayscale; RightCheck Sensor, Remote Conformance Testing; Ideal for X-Ray, Chest CT & MRI, Non-Reflective Panel. Call Ampronix to confirm details for your application.

Specifications

Manufacturer: NDSsi

Condition: Refurbished

Modality: Diagnostic

Calibrated Luminance: 600 cd/m²

Certifications: FDA registration #2954921 and #1226517; 510(k), ANSI/AAMI ES60601-1, EN60601-1, EN60601-1-2, CAN/CSA-C22.2 No.60601-1, FCC, CE, CCC, TUV-GM, VCCI, KCC, RoHS, WEEE, REACH

Contrast Ratio: 900:1 typical

Dimensions (Without Stand): 18.7" x 14.3" x 3.9" (475mm x 363mm x 99mm)

Maximum Luminance: 1450 cd/m² typical

Mounting Options: 100 x 100 mm VESA mounting standard. Desktop stand includes height, pivot, swivel, and tilt adjustment.

Pixel Pitch: 211.5µm, 120 DPI

Power Consumption: 70 Watts typical

Power Input: 100 to 240 VAC 50-60 Hz

Resolution: 1536 x 2048 Portrait, 2048 x 1536 Landscape

Response Time: 16 ms typical

Screen Size: 21.3 Inches (541mm)

Screen Technology: TFT AMLCD Dual Domain IPS, 3 subpixels per pixel

Video Inputs: DisplayPort 1.1 and Dual Link DVI-D

Viewing Angle: 176° horizontal and vertical

Warranty: 1 Year

Weight (With Stand): 21 lbs (9.3 kg)

Weight (Without Stand): 14 lbs (6.4 kg)

Resources

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

NDSsi DOME S3 3MP Grayscale Diagnostic Display Monitor

Name: NDSsi DOME S3 3MP Grayscale Diagnostic Display Monitor
Brand: NDSsi
SKU: NDSSI-DOME-S3
Availability: InStock

Manufacturer: NDSsi

Type: General Radiology Displays

NDSsi DOME S3 3MP Grayscale Diagnostic Display Monitor

• NDSsi DOME S3, 3MP Grayscale PACS Diagnostic Monitor
• 10-bit grayscale with DICOM Part 14
• RightCheck sensor, remote conformance testing
• Service, repair, replacement and exchange
• Part# S3, Sales and Repair

This model is out of production

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: NDSSI-DOME-S3

Details

NDSsi DOME S3 3MP Diagnostic display monitor. Ampronix offers refurbished NDSsi DOME S3 units, service and repair, and replacement and exchange.

Ampronix can quote the NDSsi DOME S3 as a unit, a repair or an exchange. Call with the model number (S3) and your application for current availability.

Model: S3

Frequently asked questions about the NDSsi DOME S3

Is the NDSsi DOME S3 diagnostic display monitor available for sales, service and repair, replacement and exchange?

Yes. Ampronix offers refurbished units of the NDSsi DOME S3, plus service and repair, replacement and exchange, subject to availability. Call Ampronix for current availability and a quote.

Does Ampronix repair the NDSsi DOME S3?

Yes. Ampronix provides service and repair for the S3 with free evaluation and fast turnaround. Call Ampronix for a repair quote.

Can I exchange or replace my S3?

Yes. Ampronix offers replacement and exchange options for the S3. Call Ampronix to confirm availability and pricing.

Where can I buy a NDSsi DOME S3 diagnostic display monitor?

Ampronix sells the NDSsi DOME S3. Call Ampronix for current availability, pricing and lead time.

Should I repair or replace my S3?

Ampronix can quote repair, exchange or replacement for the S3 so you can compare options. Call Ampronix for a free evaluation.

What should I have ready when I request a quote for the S3?

Have the model number (S3), the serial number from the unit label if you have one, and whether you need a unit, a repair or an exchange.

What are the key features of the NDSsi DOME S3?

Specifications

Manufacturer: NDSsi

Condition: Refurbished

Modality: Diagnostic

Calibrated Luminance: 600 cd/m²

Certifications: FDA registration #2954921 and #1226517; 510(k), ANSI/AAMI ES60601-1, EN60601-1, EN60601-1-2, CAN/CSA-C22.2 No.60601-1, FCC, CE, CCC, TUV-GM, VCCI, KCC, RoHS, WEEE, REACH

Contrast Ratio: 900:1 typical

Dimensions (Without Stand): 18.7" x 14.3" x 3.9" (475mm x 363mm x 99mm)

Maximum Luminance: 1450 cd/m² typical

Mounting Options: 100 x 100 mm VESA mounting standard. Desktop stand includes height, pivot, swivel, and tilt adjustment.

Pixel Pitch: 211.5µm, 120 DPI

Power Consumption: 70 Watts typical

Power Input: 100 to 240 VAC 50-60 Hz

Resolution: 1536 x 2048 Portrait, 2048 x 1536 Landscape

Response Time: 16 ms typical

Screen Size: 21.3 Inches (541mm)

Screen Technology: TFT AMLCD Dual Domain IPS, 3 subpixels per pixel

Video Inputs: DisplayPort 1.1 and Dual Link DVI-D

Viewing Angle: 176° horizontal and vertical

Warranty: 1 Year

Weight (With Stand): 21 lbs (9.3 kg)

Weight (Without Stand): 14 lbs (6.4 kg)
