Manufacturer: NDS | Model: ZeroWire G2 WRP4211 (nameplate model; also written WR-P42-11, WRP-4211)

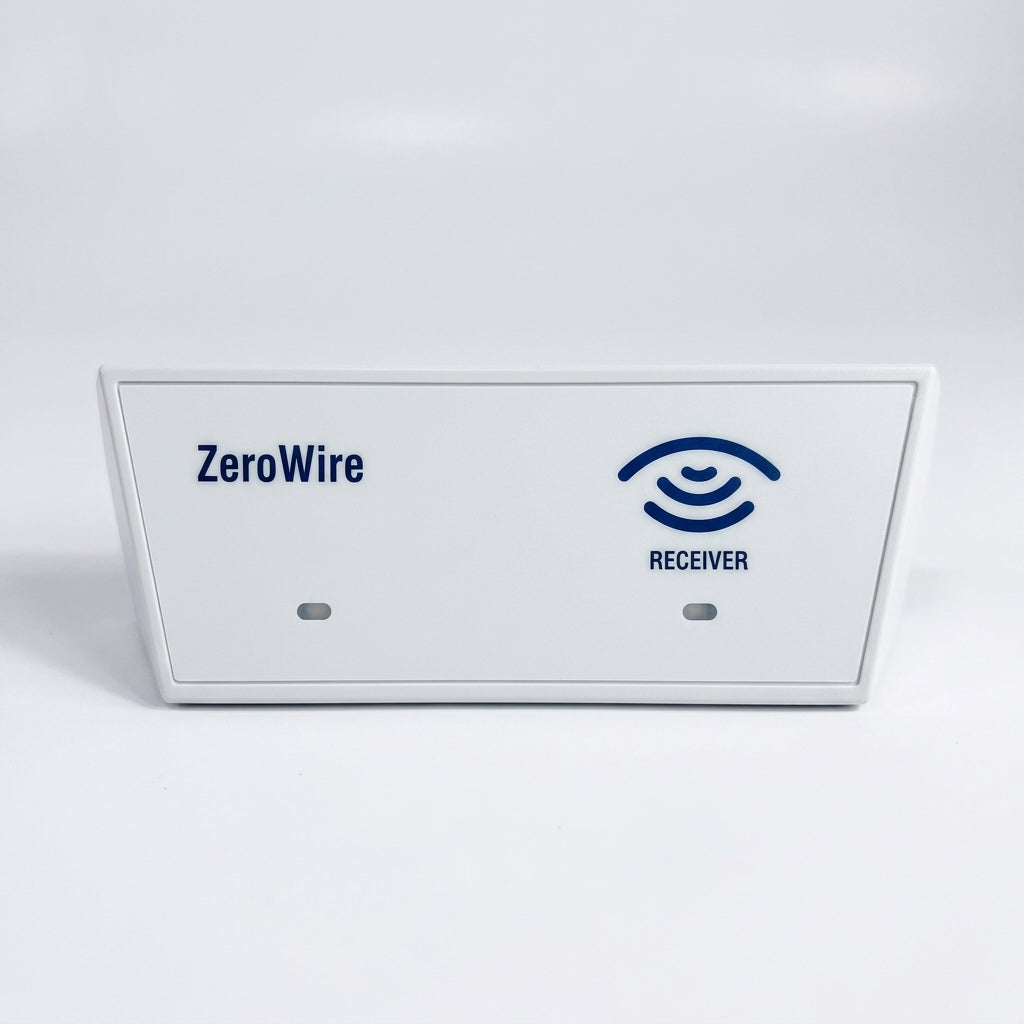

The NDS ZeroWire G2 WRP4211 is the wireless receiver unit of the NDS ZeroWire G2 operating room video system, the nameplate model WR-P42-11 (also written WRP4211 and WRP-4211) that is supplied with ZeroWire G2 receiver kits for NDS Radiance and EndoVue surgical displays. It receives uncompressed video from a paired ZeroWire G2 transmitter and passes it to the display over DVI-D, removing the video cable run between the surgical video source and the monitor. Ampronix supplies the NDS ZeroWire G2 WRP4211 as a refurbished, tested unit.

Where it is used

The ZeroWire G2 WRP4211 receiver mounts at the monitor in operating rooms and endoscopy suites where cabled video is impractical, for example laparoscopic cholecystectomy, knee and shoulder arthroscopy, cystoscopy, ureteroscopy and hysteroscopy. NDS lists ZeroWire G2 receiver kits for Radiance 24 inch and 26 inch, EndoVue 24 inch and Radiance Ultra 42 inch and 55 inch displays, and the WRP4211 is the receiver side of that link.

System components and compatible part numbers

• Transmitter: NDS 90T2072 ZeroWire G2 transmitter (Tx) only, with DVI-D and 3G-SDI inputs
• Receiver and transmitter pair: NDS 90T2070 ZeroWire G2 pair
• Receiver only (separate listing): NDS 90T2071 ZeroWire G2 receiver
• Receiver kits: NDS 90T3011 (Radiance 24 inch, 26 inch, EndoVue 24 inch) and 90T3015 (Radiance Ultra 42 inch, 55 inch)
• Mounting: NDS 90T0115 receiver and transmitter mounting bracket

Specifications at a glance

• Video output: DVI-D, up to 1080p60, no compression, 4:4:4 chroma over DVI-D
• Wireless band 57 to 64 GHz, range under 30 ft (9.14 m), up to 2 pairs per room
• Encryption: 256-bit AES patient privacy data encryption
• Single unit 9.3 x 3.4 x 2.0 in (236 x 87 x 52 mm), 1.0 lb (0.45 kg)
• Nameplate model WRP4211, also written WRP-4211 and WR-P42-11; manufacturer discontinued, FCC and CE marked

Frequently asked questions

• Is the NDS ZeroWire G2 WRP4211 available refurbished? - Yes. Ampronix supplies the NDS ZeroWire G2 WRP4211 as a tested, refurbished unit. Contact Ampronix to confirm current availability.
• What is the difference between the ZeroWire G2 WRP4211 receiver and the transmitter? - The receiver outputs video over DVI-D to the display. The transmitter takes video in over DVI-D or 3G-SDI from the surgical video source.
• Does Ampronix repair or exchange the NDS ZeroWire G2 WRP4211? - Yes. Ampronix offers repair, service and exchange replacement for the WRP4211 (WR-P42-11) and the ZeroWire G2 line.

Ampronix supplies the NDS ZeroWire G2 WRP4211 and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader NDS ZeroWire G2 wireless video line.

Also referenced as: NDSZeroWireG2, NDS-ZeroWire-G2, ZeroWire G2 receiver, ZeroWireG2 Rx, WRP4211, WRP-4211, WR-P42-11, WR P42 11.
