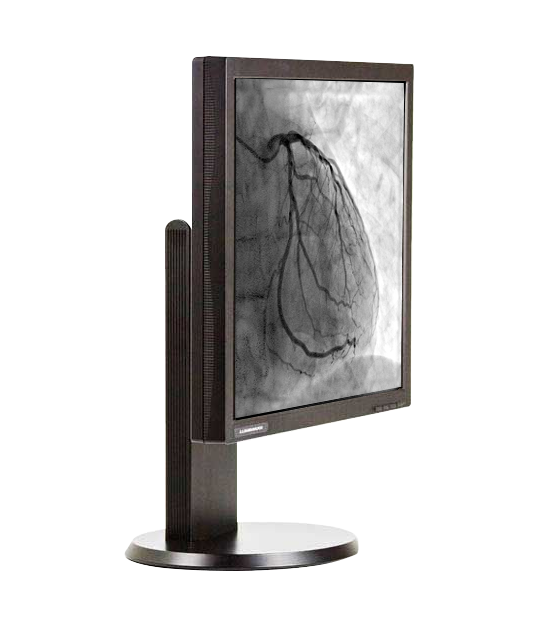

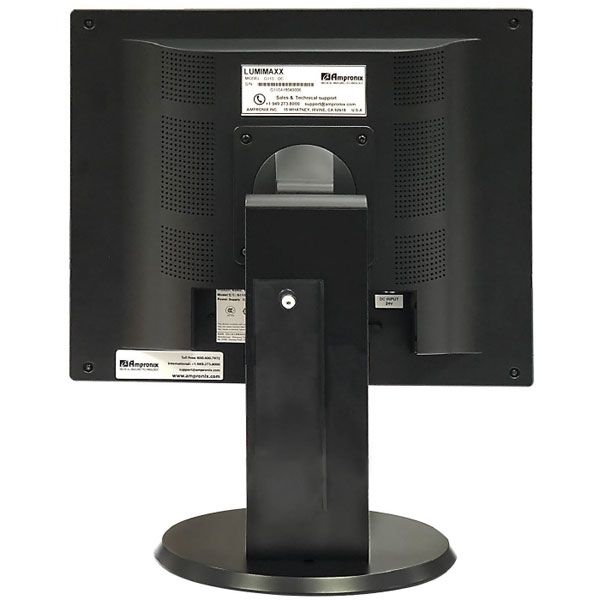

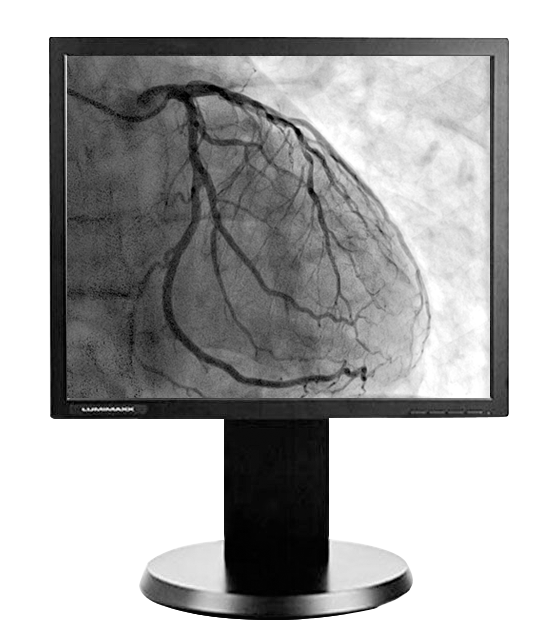

Lumimaxx G11S-DC 1MP 19" Medical Grade Grayscale LCD Monitor

Details

The Lumimaxx G11S-DC 1MP Grayscale Medical Display with multiple display modes, the Lumimaxx G11S-DC allows medical professionals to review multiple images at a time. The displays excellent performance allows for clear clinical imagery for hospitals and staff to make crucial decisions, as well as improve the overall efficiency of the institution and patient satisfaction

Calibration of each monitor is compliant with DICOM standards to ensure accuracy of the medical images displayed and the built-in backlight stabilization system provides assurance of consistent long-term performance.

Specifications

Manufacturer: Ampronix

Condition: New

Accessories: DVI Cable, VGA Cable, BNC Cable, Medical grade U.S power cable, 1 Ft. power extension,User Manual

Calibrated Luminance: 1000 cd/m²

Certifications: EN 60601-1, IEC 60601-1, ANSI/AAMI ES60601-1, UL 60601- 1: 2003 R6.03 / CAN/ CSA- C22.2 No.601.1- M90 ser vice: cTUVus cer tificate CCC, CB ( NCB Lab.) ,FCC

Contrast Ratio: 1000:1

Dimensions (With Stand): 415(W) x 344(H) x 225(D) mm

Dimensions (Without Stand): 415(W) x 344(H) x 80(D) mm

Maximum Luminance: 1300 cd/m²

Mounting Options: VESA 100 x 100 mm

Pixel Pitch: 0.294 x 0.294 mm

Power Consumption: 60 W max

Power Input: DC-24V

Power Save Mode: < 5W

Resolution: 1280 x 1024

Response Time: 30 ms

Screen Size: 19 Inches

Screen Technology: TFT, Grayscale, LCD screen, anti-glare, hard coating

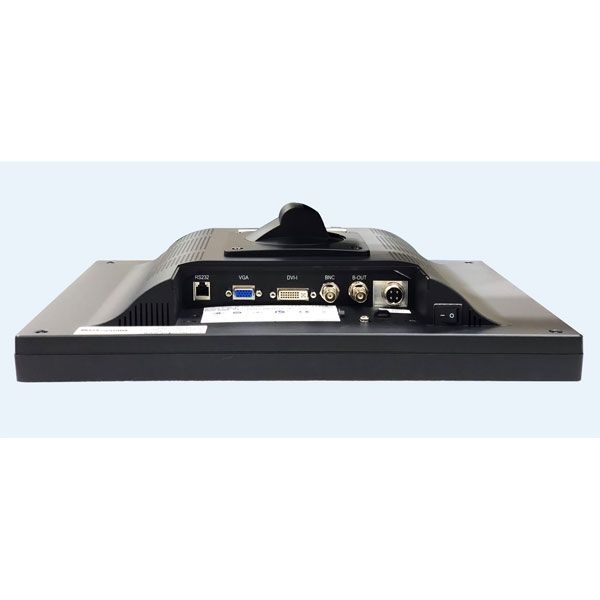

Video Inputs: DVI-D, VGA, Video(SOG): BNC IN, BNC OUT

Viewing Angle: H 170° x V 170°

Warranty: 1 Year

Weight (With Stand): 7.4 kg (16.3 lbs)

Weight (Without Stand): 7 kg (15.4 lbs)

Resources

• Ampronix-Lumimaxx-G11SDC-Spec-Sheet-EN-RevB.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Lumimaxx G11S-DC 1MP 19" Medical Grade Grayscale LCD Monitor

Name: Lumimaxx G11S-DC 1MP 19" Medical Grade Grayscale LCD Monitor
Brand: Ampronix
SKU: LUMIMAXX-G11SDC
Availability: InStock

Manufacturer: Ampronix

Type: Surgical Displays

Lumimaxx G11S-DC 1MP 19-inch Medical Grade Grayscale LCD Monitor

• 19 Inch grayscale display
• Built-in multiple display mode
• Backlight stabilization system
• Compliant with DICOM standard
• Wide viewing angle

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
