Details

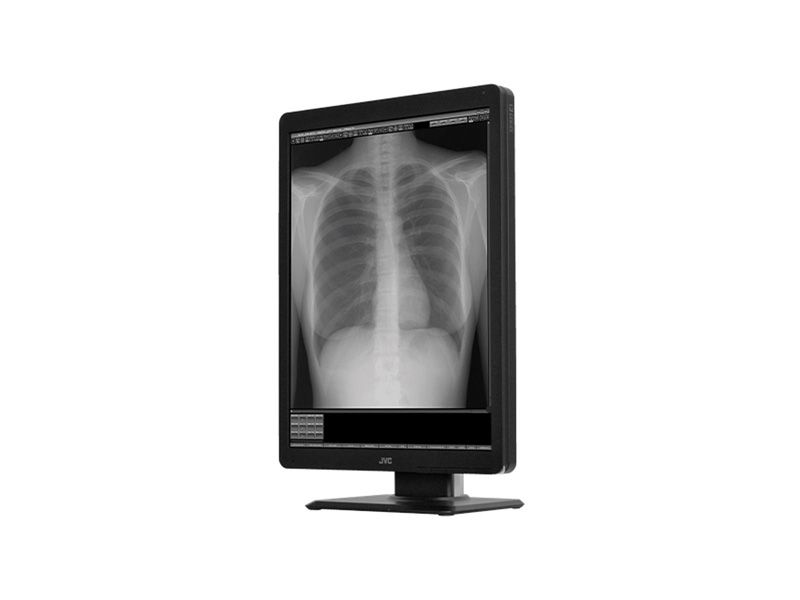

The JVC MS-S300 with high luminance & High contrast 3MP monochrome monitor for Diagnostic imaging

JVC MS-S300 comes with 1,000 cd/m² calibration to make it the best solution for diagnostic imaging of DR, CT, MRI etc. The brighter screen dramatically increases the number of perceptual grayscale steps to improve visibility of structures.

Specifications

Manufacturer: JVC

Condition: New

Modality: Diagnostic

Calibrated Luminance: 500 cd/m² / 1000 cd/m² (calibrated)

Certifications: ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, J-Moss, RoHS, EAC

Contrast Ratio: 1500:1 (typ.)

Dimensions (With Stand): Landscape : 493 mm x 451.3 / 546.3 mm x 196.5 mm Portrait : 361.5 mm x 517 / 612 mm x 196.5 mm

Maximum Luminance: 2000 cd/m² (typ.)

Mounting Options: VESA standard (100 mm x 100 mm)

Pixel Pitch: 0.2115 mm x 0.2115 mm

Power Consumption: 35W (typ.)

Power Input: 100V - 240 V 50/60 Hz

Resolution: 1536 x 2048(Independent Sub-pixel Drive technology ON : 1536 x 6144)

Screen Size: 324 mm x 433 mm

Screen Technology: 21.3-inch, monochrome, TFT, IPS technology

Video Inputs: DVI-D (DVI 1.0 compliant) DisplayPort (DisplayPort 1.2a compliant)

Viewing Angle: 178° vertical and horizontal

Weight (With Stand): approx. 10.2 kg

Resources

• JVC-MSS300-Brochure-EN.pdf
