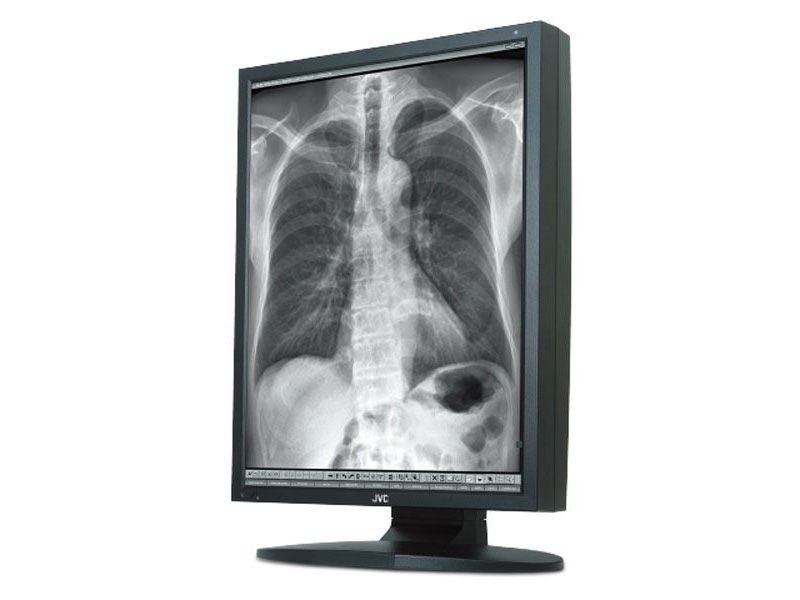

JVC MS35i2 3MP Diagnostic Radiology Monitor

Details

JVC MS35i2 formerly Totoku 21.3-inch 3MP LCD Monochrome Medical Monitor Display. High Luminance and High Contrast 3MP Monochrome Monitor for diagnostic imaging.

In addition to being a standard solution for diagnostic imaging, the JVC MS35i2 with Independent Sub-pixel Drive technology enables this 3MP monitor to render 9 mega sub-pixel images, exceeding the current standards of care for primary mammography diagnosis. MS35i2 with Independent Sub-pixel Drive technology is cleared for FDA (510K) for the use of Digital Mammography.

Specifications

Manufacturer: JVC

Condition: Refurbished

Modality: Diagnostic

Accessories: Power cord (3P), DVI cable, DisplayPort cable, USB cable, User manual, Cleaning kit (AR coating model only)*

Calibrated Luminance: 410 cd/m² / 500 cd/m²: (Calibrated)

Certifications: ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, CCC, FDA510(k), J-Moss, RoHS

Contrast Ratio: 1400:1 (typ)

Dimensions (With Stand): Landscape : 474 mm × 471.4 / 532.9 mm × 220 mm, Portrait : 367 mm × 524.9 / 586.4 mm × 220 mm

Maximum Luminance: 1700cd/m² (typ)

Mounting Options: VESA standard (100 mm x 100 mm)

Pixel Pitch: 0.2115 mm x 0.2115 mm

Power Consumption: 60W (typ.)

Power Input: 100V - 240V, 50/60Hz

Resolution: 1536 x 2048, 1536 x 6144 (sub-pixel), Optional Independent Sub-pixel Drive Technology

Screen Size: 325 mm x 433 mm

Screen Technology: 21.3-inch , monochrome, TFT, IPS

Video Inputs: DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.1a compliant)

Viewing Angle: 176° horizontal and vertical (typ)

Warranty: 5 Years

Weight (With Stand): 12.3 kg

Resources

• JVC-MS35i2-Brochure-EN.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

JVC MS35i2 3MP Diagnostic Radiology Monitor

Name: JVC MS35i2 3MP Diagnostic Radiology Monitor
Brand: JVC
SKU: JVC-MS35I2
Availability: InStock

Manufacturer: JVC

Type: General Radiology Displays

JVC MS35i2 21.3-inch 3MP LCD Monochrome Medical Monitor Display

• Luminance Stabilizing System λ-Sentinel
• Independent Sub-pixel Drive Technology
• Front Protective Filter
• Uniformity Equalizer
• DICOM Conformance Check
• Ecological Technology – Considering the Global Environment
• Worldwide Medical Safety Standards

This model is out of production
