Details

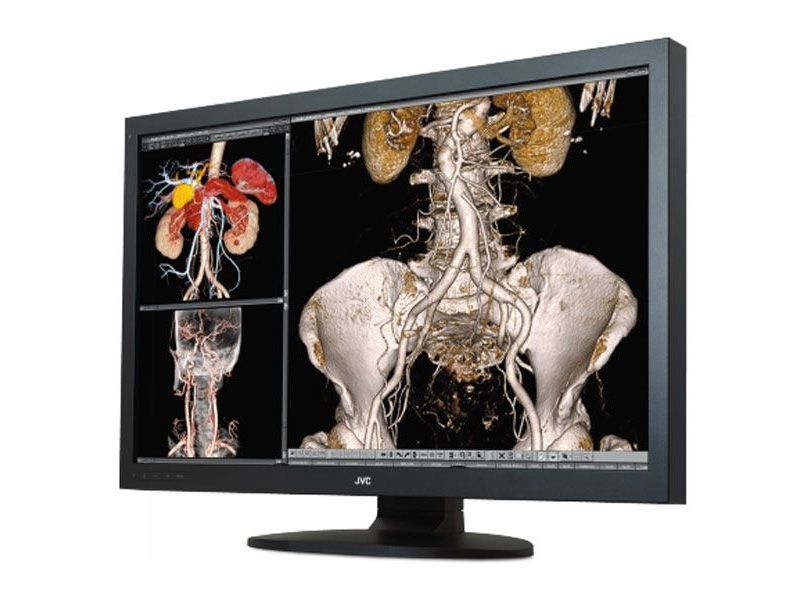

Wide screen JVC CCL650i2 6MP Color LCD Diagnostic Monitor Display for new possibilities with a streamlined workflow. Providing optimal functions for diagnostic viewing, this seamless and wide LCD improves your workflow efficiency while ensuring space and energy saving.

Specifications

Manufacturer: JVC

Condition: Refurbished

Modality: Diagnostic

Accessories: Power cord (3P), DVI cable (x2), DisplayPort cable (x2) , USB cable, User manual, Cleaning kit (AR coating model only)*

Calibrated Luminance: 410cd/m² / 300cd/m² (Calibrated)

Certifications: ANSI/AAMI ES60601-1(2005)+A1(2012), CAN/CSA C22.2 NO. 60601-1(2008), CE (EN60601-1, EN60601-1-2), FCC class B, VCCI class B, ICES-3-B, FDA510(k), RCM, J-Moss, RoHS

Contrast Ratio: 1000:1 (typ)

Dimensions (With Stand): 696 mm x 574 mm x 244 mm

Maximum Luminance: 800cd/m² typ

Mounting Options: VESA standard (100 mm x 200 mm, 100 mm x 100 mm)

Pixel Pitch: 0.197 mm x 0.197 mm

Power Consumption: 180W (typ)

Power Input: 100V - 240V 50/60Hz

Resolution: 3280 x 2048

Screen Size: 646 mm x 403 mm

Screen Technology: 30.0-inch , color, TFT, IPS

Video Inputs: DVI 1.0 compliant, DisplayPort 1.1a compliant

Viewing Angle: 170° horizontal and vertical (typ)

Warranty: 5 Years

Weight (With Stand): 15.8 kg

Weight (Without Stand): 11.3 kg

Resources

• JVC-CCL650i2-Brochure-EN.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

JVC CCL650i2 6MP Diagnostic Radiology Monitor

Name: JVC CCL650i2 6MP Diagnostic Radiology Monitor
Brand: JVC
SKU: JVC-CCL650I2
Availability: InStock

Manufacturer: JVC

Type: General Radiology Displays

JVC CCL650i2 6MP Color LCD Diagnostic Monitor Display

• 6MP, 30-inch wide screen Color LCD Diagnostic Monitor Display
• Dynamic Gamma --- One Pixel Based Contrast and Brightness, Gamma
• Auto Text Mode --- Auto Brightness Blinding Mode for Text Area
• LED Backlight for Image Stability and Energy Saving
• Built-in Sensor
• Remote Calibration
• Uniformity Equalizer
• Diversified Utility
• Multiple Signal Sources
• Special AR Coating for Film-like Black and Improved Sharpness
• User-selectable Monitor Configurations
• Worldwide Medical Safety Standards

This model is out of production
