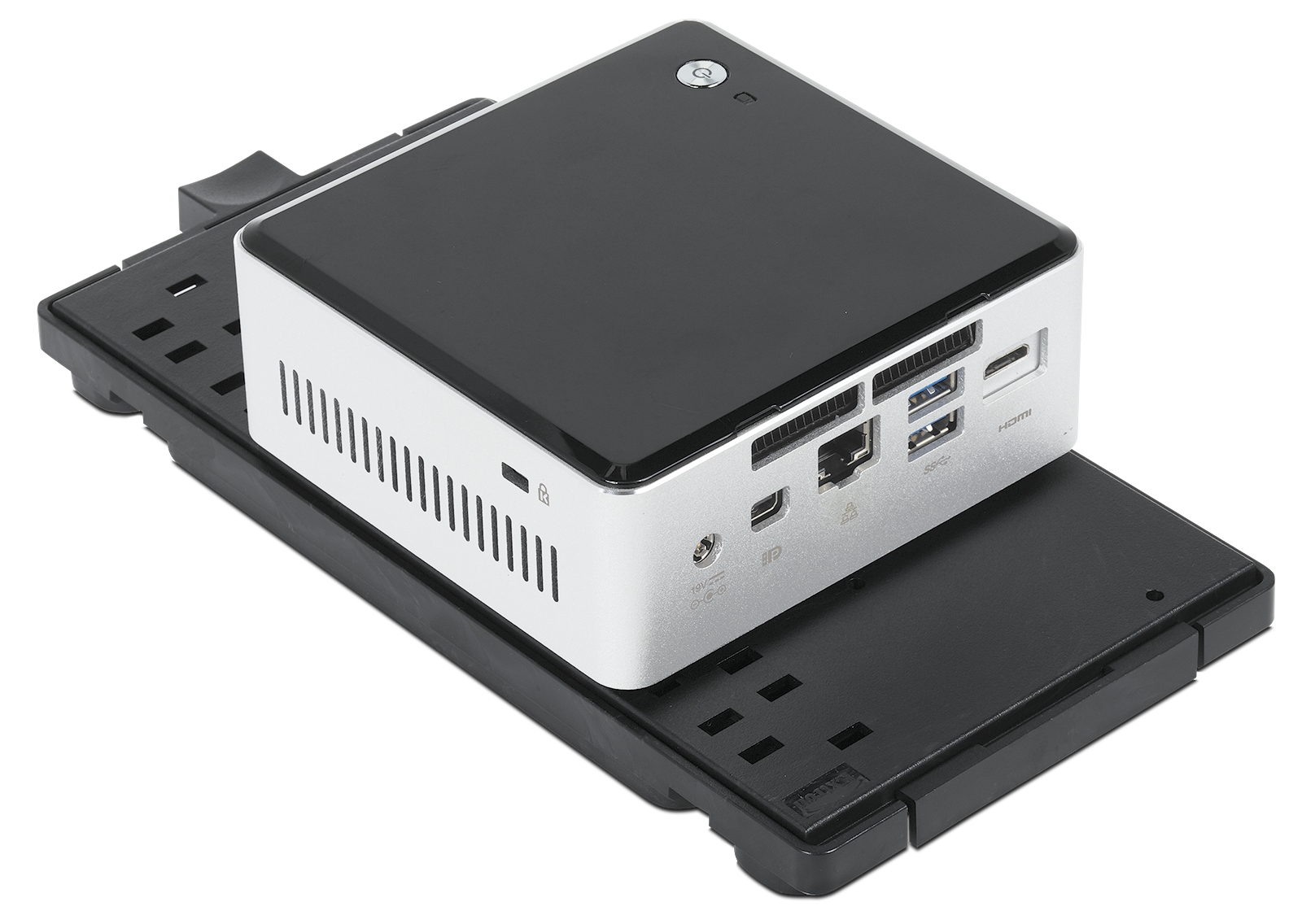

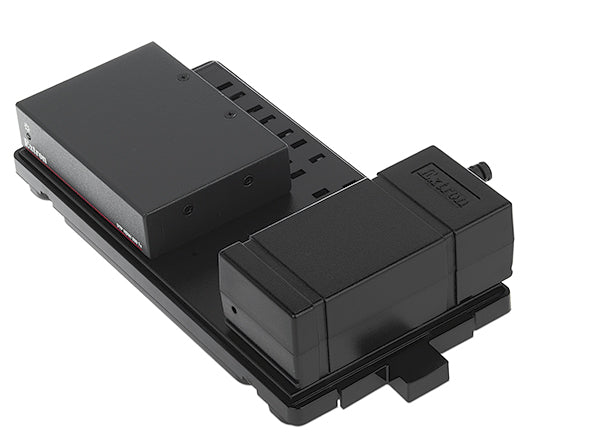

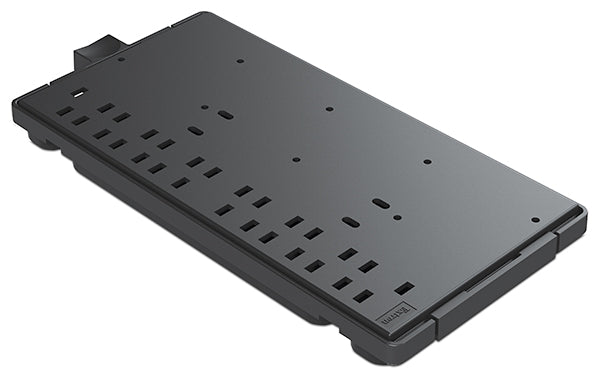

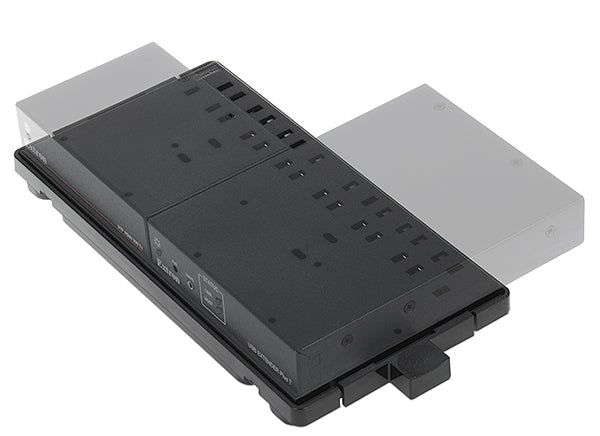

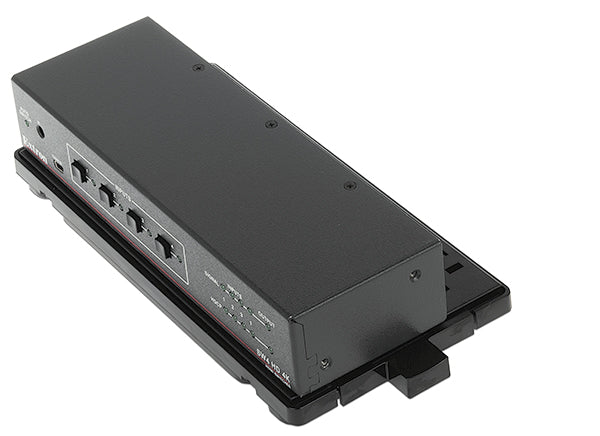

Extron ZipClip 400 (part number 101-031-01) — a 10-pack combining 10 ZipClip 400 clips and 10 ZipCaddy 400 plates for mounting eighth- through half-rack width Extron products.

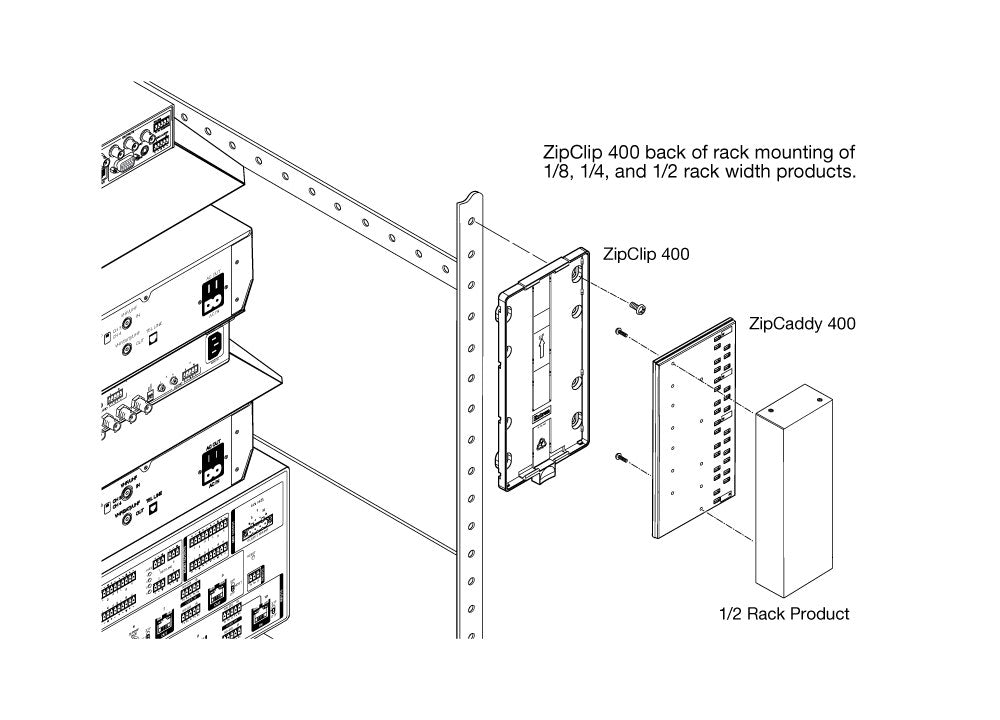

The 400 series is the heaviest-duty ZipClip kit, rated to carry more weight than the 100 or 200 series in both orientations - 9.5 lbs when the mounted device hangs vertically and 5.0 lbs mounted horizontally. Extron states it supports eighth-rack, quarter-rack and half-rack width products, covering a wider size range than the smaller kits. Installation follows the same pattern as the rest of the family: screw the base down, click the device in, and use the release tab to remove it without tools.

Key Capabilities

• Includes 10 ZipClip 400 clips and 10 ZipCaddy 400 plates
• Supports eighth-rack, quarter-rack and half-rack width products
• 9.5 lb (4.3 kg) vertical / 5.0 lb (2.27 kg) horizontal load rating
• Click-to-lock installation with tool-free release tab
• Fits rack rails and furniture with included/required hardware
• High impact plastic construction

Where It Is Used

Racks, tables, shelves and lecterns where larger Extron devices, up to half-rack width, need a fixed, tool-free mounting point rather than a full rack shelf.

Specifications at a Glance

• Model: Extron ZipClip 400 and ZipCaddy 400, part number 101-031-01

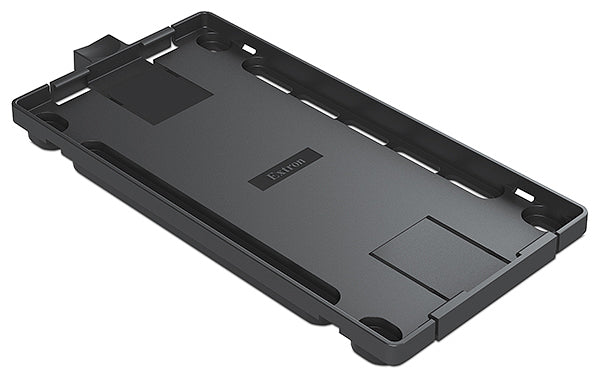

• ZipClip 400: 9.5 in H x 4.6 in W x 0.6 in D (241 x 116 x 15 mm)

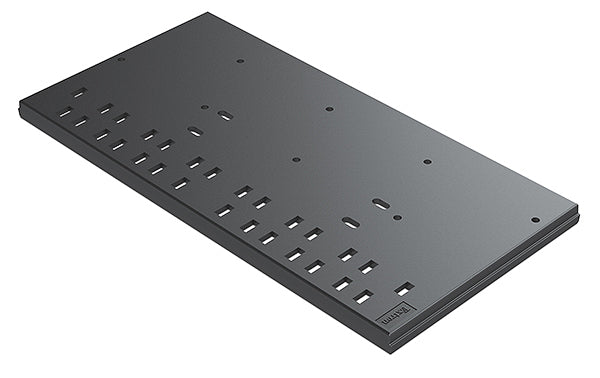

• ZipCaddy 400: 8.6 in H x 4.4 in W x 0.4 in D (218 x 111 x 10 mm)
• Load: 9.5 lbs (4.3 kg) vertical, 5.0 lbs (2.27 kg) horizontal
• Product weight: 0.3 lb per clip/plate pair; 2.8 lbs (1.3 kg) per 10-pack

Also referenced as Extron ZipClip400, ZipClip-400, part number 10103101.
