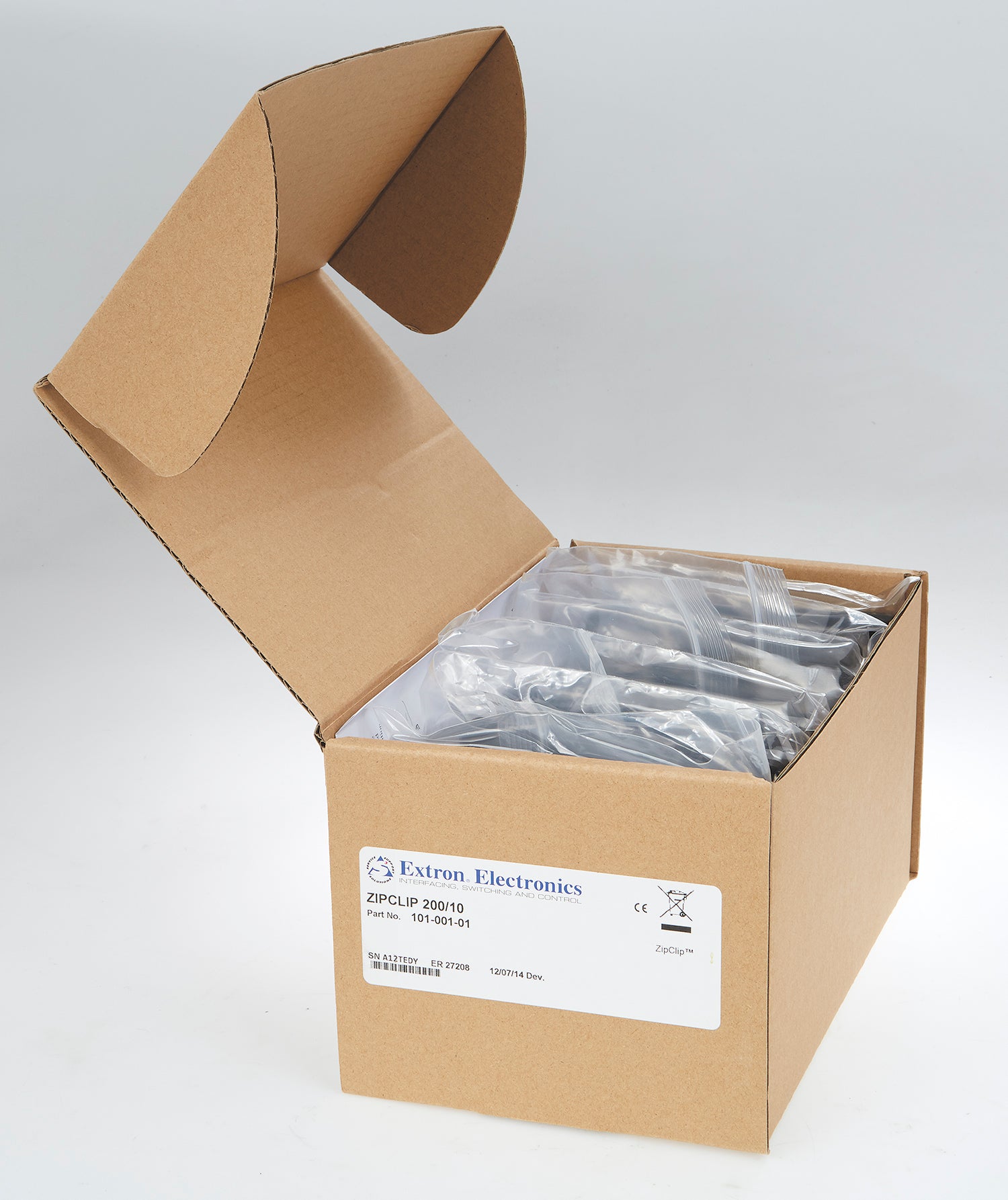

Extron ZipClip 200 (part number 101-001-01) — a 10-pack combining 10 ZipClip 200 clips and 10 ZipCaddy 200 plates for mounting eighth- and quarter-rack Extron devices.

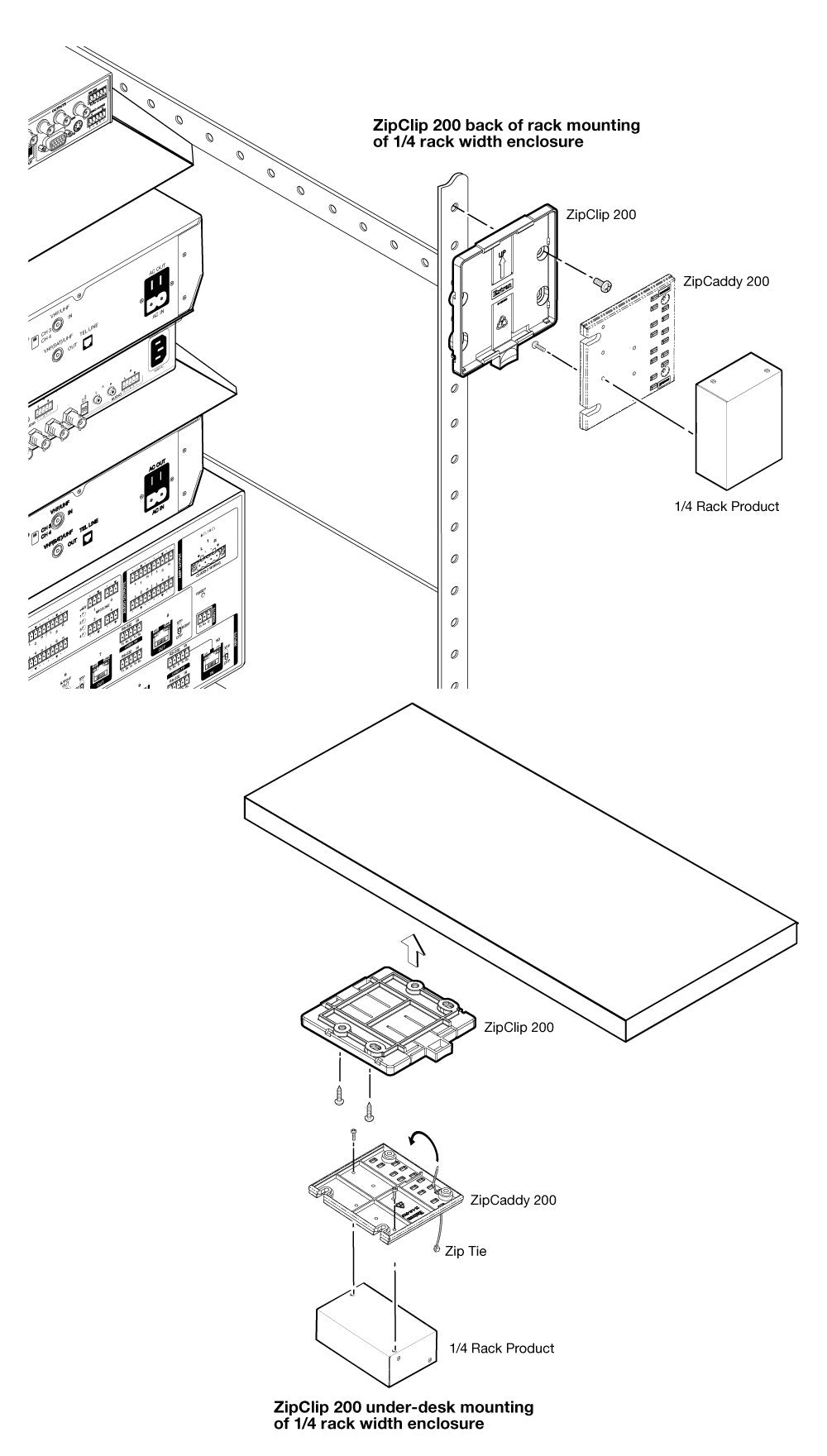

This kit covers a wider range of devices than the ZipClip 100 by pairing two piece sizes: the ZipClip 200 clip for 3-inch deep products and the ZipCaddy 200 plate for quarter- or eighth-rack devices in the same depth. Both mount the same way - screw down the base, press the device in until it clicks, and release with a tab when it needs to come off. The kit also secures products such as the PS 1220, PS 1230 and PS 1242 power supplies and mounts beneath Cable Cubby F55 enclosures.

Key Capabilities

• Includes 10 ZipClip 200 clips and 10 ZipCaddy 200 plates
• Mounts quarter- and eighth-rack width, 3 in deep devices
• Covers PS 1220, PS 1230 and PS 1242 power supplies
• Click-to-lock installation with tool-free release tab
• Fits beneath Cable Cubby F55 enclosures
• High impact plastic construction

Where It Is Used

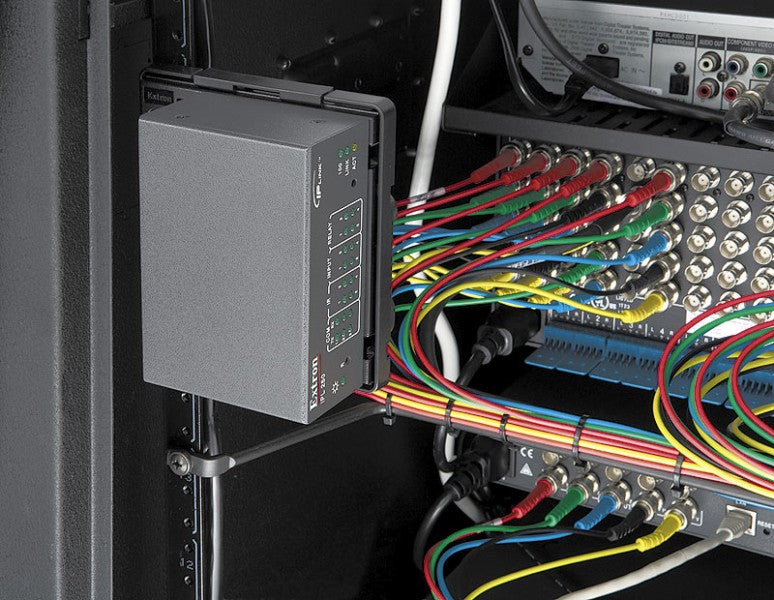

Racks, tables, shelves and lecterns where PS Series power supplies or similar quarter- and eighth-rack devices need dedicated, tool-free mounting points.

Specifications at a Glance

• Model: Extron ZipClip 200 and ZipCaddy 200, part number 101-001-01

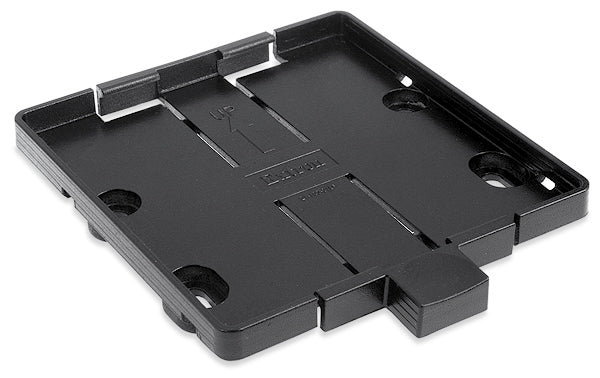

• ZipClip 200: 5.3 in H x 4.6 in W x 0.6 in D (13.5 x 11.6 x 1.5 cm)

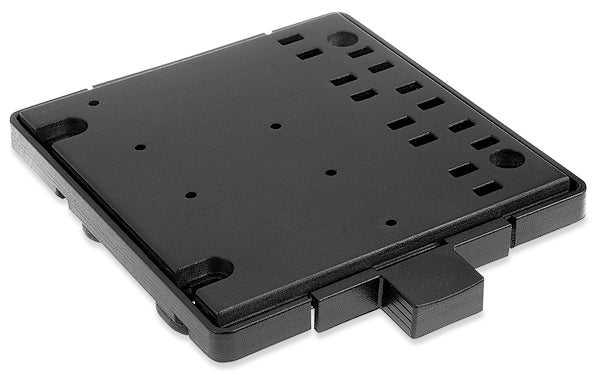

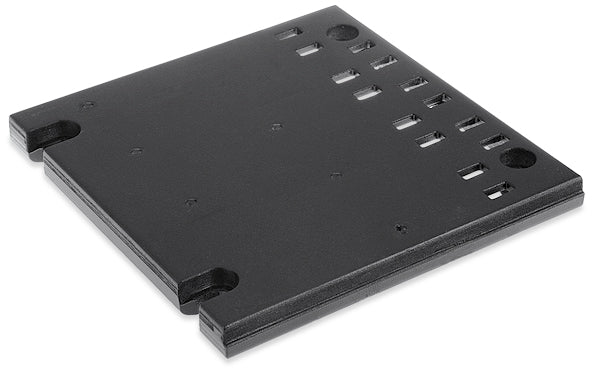

• ZipCaddy 200: 4.4 in H x 4.3 in W x 0.4 in D (11.3 x 11.0 x 1.0 cm)
• Product weight: 0.3 lb per clip/plate pair; 2.8 lbs (1.3 kg) per 10-pack
• High impact plastic; 3 years parts and labor warranty

Also referenced as Extron ZipClip200, ZipClip-200, part number 10100101.
