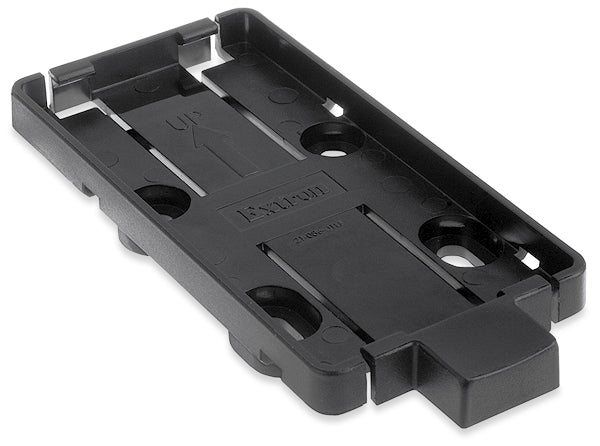

Extron ZipClip 100 (part number 101-002-01) — a 10-pack of clips that mount eighth-rack width, 3-inch deep Extron products to rack rails, tables, shelves or lecterns.

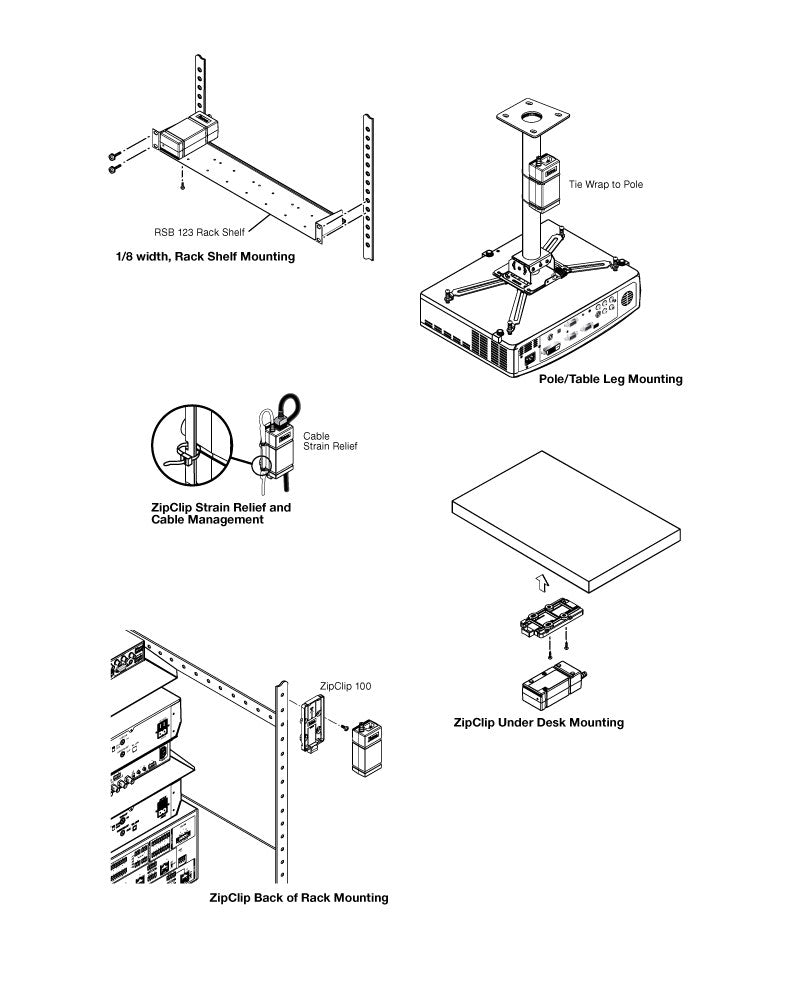

PS Series power supplies and similarly sized eighth-rack devices are easy to lose track of once they are disconnected from a fixed rack position. ZipClip 100 gives each one a dedicated mounting point: the clip screws down first, then the device presses in and locks with a click, held until a release tab lets it back out. The clips also work under Cable Cubby F55 and F55 Edge enclosures for keeping a power supply out of sight below the connectivity panel.

Key Capabilities

• Mounts eighth-rack, 3 in deep products to racks or furniture
• Click-to-lock installation with tool-free release tab
• Fits beneath Cable Cubby F55 and F55 Edge enclosures
• Wire-tie slots for cable dressing
• High impact plastic construction
• Sold as a 10-pack of clips

Where It Is Used

Racks, tables, shelves and lecterns where a small PS Series power supply or similar eighth-rack device needs to be fixed in place rather than left loose or zip-tied ad hoc.

Specifications at a Glance

• Model: Extron ZipClip 100, part number 101-002-01
• Enclosure dimensions: 5.3 in H x 2.4 in W x 0.6 in D (13.5 x 6.1 x 1.5 cm)
• Product weight: 0.1 lb per clip; 1.5 lbs (0.5 kg) per 10-pack
• High impact plastic; RoHS, WEEE compliant
• 3 years parts and labor warranty

Also referenced as Extron ZipClip100, ZipClip-100, part number 10100201.
