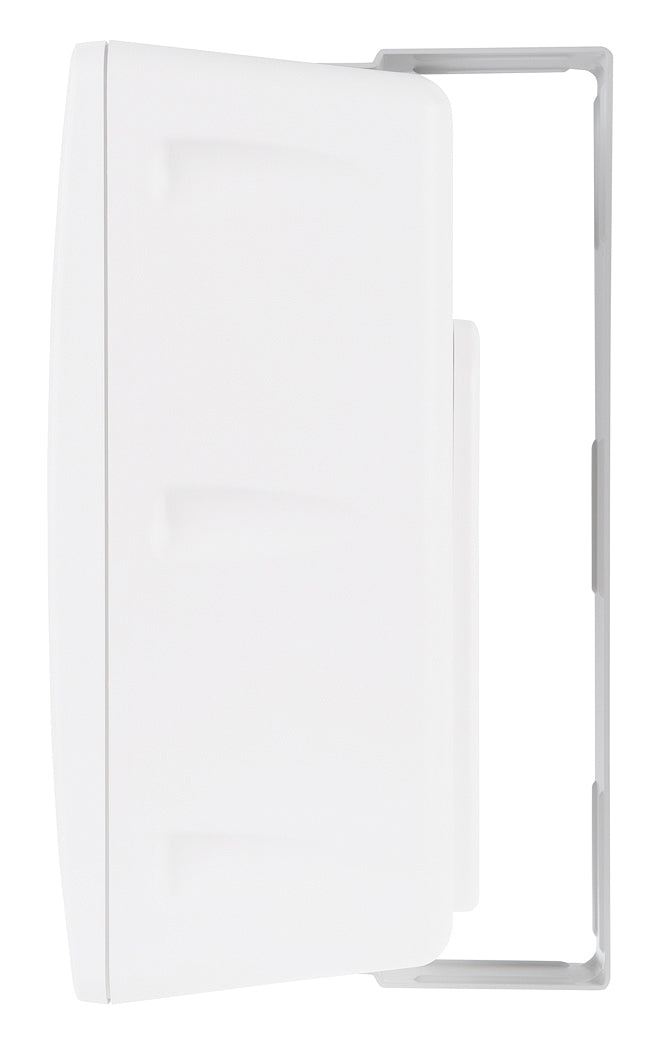

Extron Yoke Mount (part number 70-994-03) — white yoke mount kit, supplied as a pair, for the Extron SM 28 SpeedMount surface mount speaker.

Same mechanism as the black 70-994-02, finished white for pale ceilings and light-toned walls where a dark yoke would draw the eye. What distinguishes this mount from a generic bracket is the detented pivot: 180° of travel broken into 10° steps that click into place. Angles become numbers rather than judgement calls, which is exactly what a commissioning engineer wants when twelve SM 28 cabinets have to be aimed identically across a hall, and what a maintenance team wants when one of them is knocked and has to be reset months later. The yoke is installed in conjunction with the 0° mounting plate that Extron includes with the SM 28, and supports wall mounting in either orientation as well as ceiling mounting.

Key Capabilities

• 180° of pivot travel, clicking through 10° detents.
• Consistent, numerically repeatable aim across every speaker position.
• Wall mounting vertically or horizontally, or ceiling mounting.
• Installed together with the 0° mounting plate included with the SM 28.
• Optional accessory dedicated to the SM 28 SpeedMount speaker.
• Supplied in pairs, white to match SM 28 cabinets.

Where It Is Used

Light-finished sports and assembly halls, university lecture theatres, transport and civic buildings, hospitality venues and large worship spaces — SM 28 installations where high-level mounting demands accurate downward aim and the hardware is expected to recede against a pale surface.

Specifications at a Glance

• Pivot range: 180°
• Detent increments: 10°
• Compatible speaker: SM 28 SpeedMount surface mount speaker
• Mounting: wall (vertical or horizontal) or ceiling
• Sold as: pair, white

Also referenced as Extron YokeMount, Yoke-Mount, part number 7099403.
