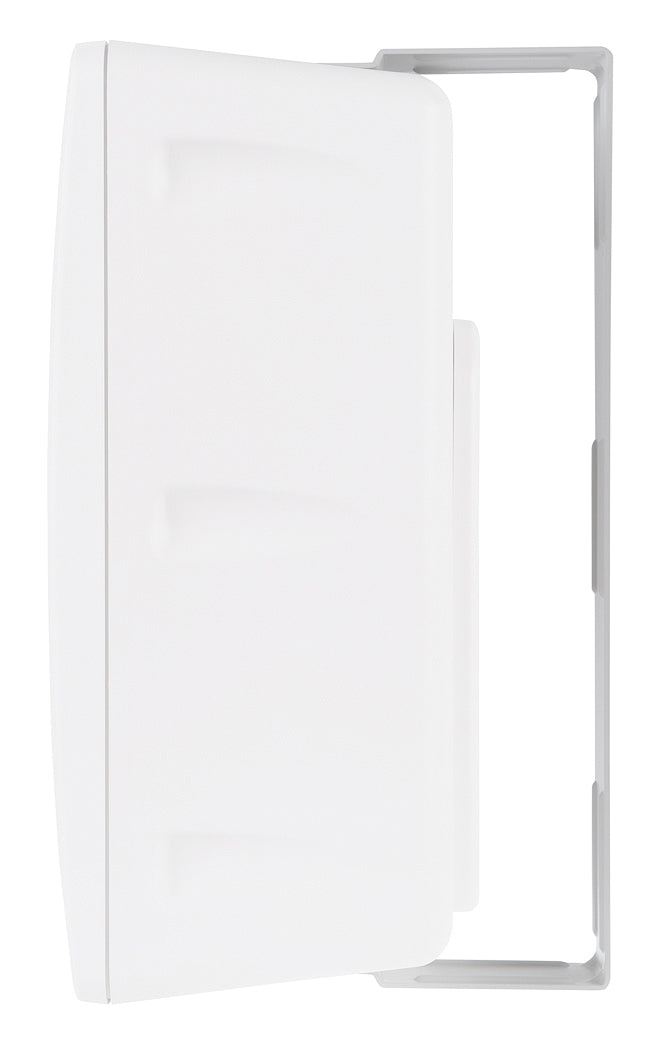

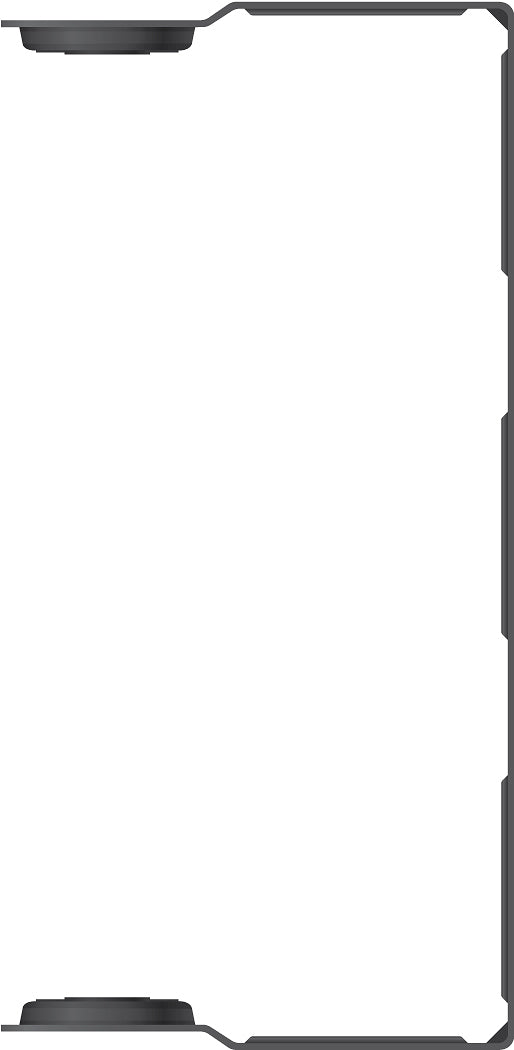

Extron Yoke Mount (part number 70-993-03) — white yoke mount kit, supplied as a pair, for the Extron SM 26 SpeedMount surface mount speaker.

White-finish version of Extron's detented yoke for the SM 26. The mechanism is the point: rather than a friction joint that has to be judged by eye and re-judged after every knock, the yoke gives 180° of pivot broken into 10° detents. An angle is chosen once, and the same detent count reproduces it at every other speaker position in the building — useful in an estate of identical classrooms, and useful again when a speaker is knocked out of position and needs to go back exactly where it was. The yoke installs alongside the 0° mounting plate that comes with the SM 26 as part of Extron's concealed SpeedMount system, so it adds aiming without giving up the wired-at-rough-in workflow. It can be fitted vertically or horizontally on a wall, or overhead on a ceiling.

Key Capabilities

• 180° of pivot in 10° detented steps.
• Repeatable angles across every speaker in a multi-room deployment.
• Wall mounting in vertical or horizontal orientation, or ceiling mounting.
• Fits with the 0° mounting plate included with the SM 26.
• Optional accessory dedicated to the SM 26 SpeedMount speaker.
• Sold in pairs, white to match SM 26 cabinets.

Where It Is Used

Schools and colleges with repeating classroom layouts, healthcare and civic buildings finished in light tones, hospitality function rooms and open offices — anywhere multiple SM 26 speakers must present the same aim and the mounting hardware should stay visually neutral.

Specifications at a Glance

• Pivot range: 180°
• Detent increments: 10°
• Compatible speaker: SM 26 SpeedMount surface mount speaker
• Mounting: wall (vertical or horizontal) or ceiling
• Sold as: pair, white

Also referenced as Extron YokeMount, Yoke-Mount, part number 7099303.
