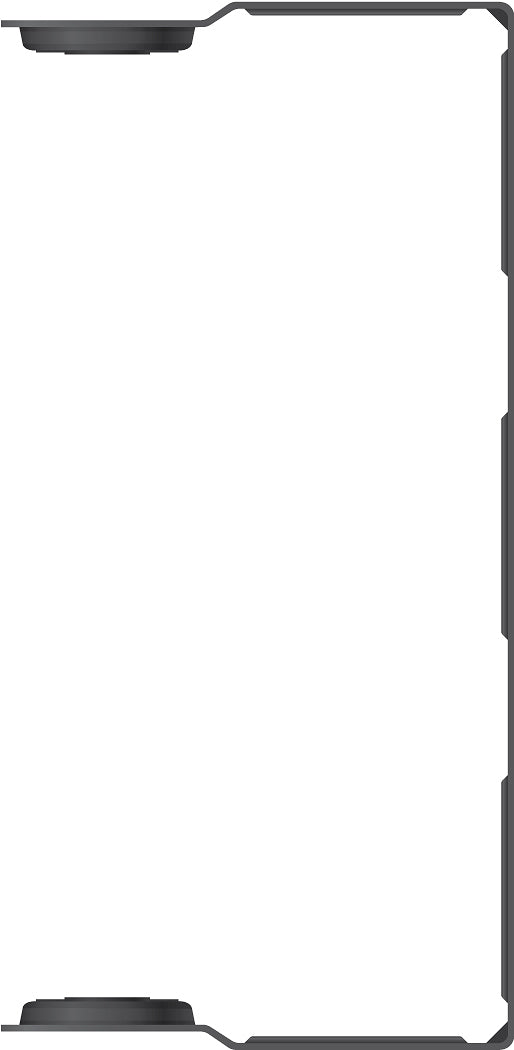

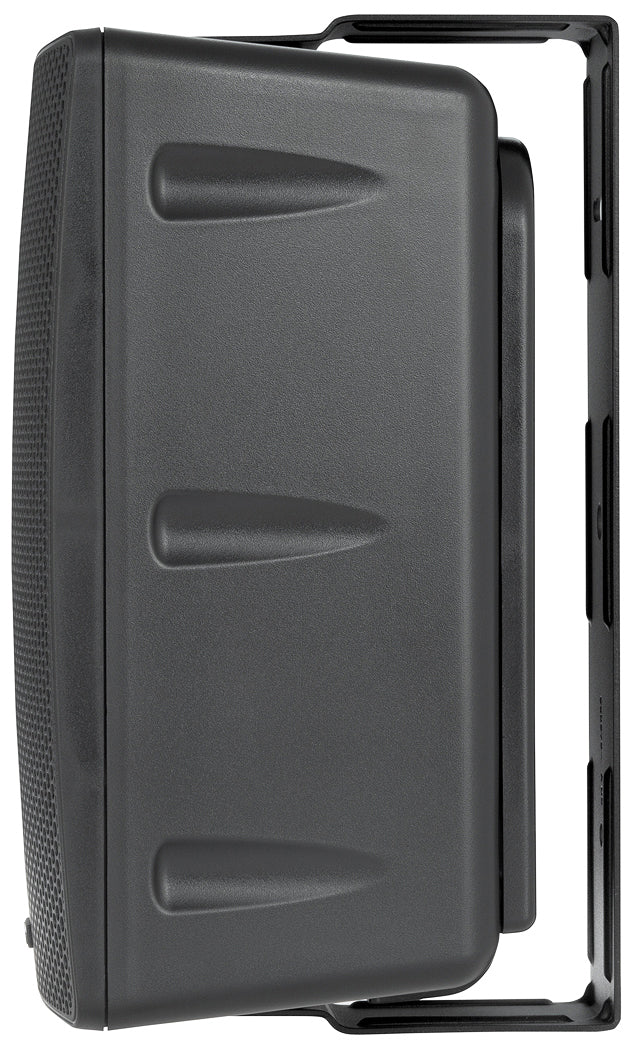

Extron Yoke Mount (part number 70-993-02) — black yoke mount kit, sold as a pair, for the Extron SM 26 SpeedMount surface mount speaker.

Free-angle brackets are a liability on a multi-speaker install. Set six speakers by eye and no two end up on the same axis; come back after a knock and none of them can be returned to their original setting. The Yoke Mount removes the guesswork by making the pivot detented: 180° of travel, indexed in 10° steps, so an angle chosen in the first room can be reproduced exactly in every room after it, and a disturbed speaker can be clicked back to where it was. The yoke does not replace the SpeedMount system — it works alongside it, installing in conjunction with the 0° mounting plate that Extron supplies with the SM 26. Mounting position is flexible: vertical or horizontal on a wall, or overhead on a ceiling.

Key Capabilities

• 180° of speaker pivot, stepped in 10° detents.
• Detents make a chosen angle repeatable across an entire speaker set.
• Mounts vertically or horizontally on a wall, or on a ceiling.
• Installs together with the 0° mounting plate supplied with the SM 26.
• Optional accessory specific to the SM 26 SpeedMount speaker.
• Supplied in pairs, black to match SM 26 cabinets.

Where It Is Used

Distributed audio in gymnasiums, cafeterias, lecture halls, worship spaces and open-plan offices — rooms fitted with several SM 26 speakers where consistent aiming across every position is what determines whether coverage sounds even to the people standing in it.

Specifications at a Glance

• Pivot range: 180°
• Detent increments: 10°
• Compatible speaker: SM 26 SpeedMount surface mount speaker
• Mounting: wall (vertical or horizontal) or ceiling
• Sold as: pair, black

Also referenced as Extron YokeMount, Yoke-Mount, part number 7099302.
