Manufacturer: Extron | Model: XTP II CrossPoint 1600 Frame | Part number: 60-1545-01 (also written 60154501)

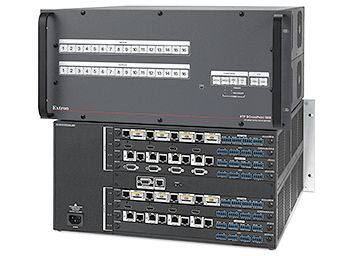

The Extron XTP II CrossPoint 1600 Frame (60-1545-01) is a new modular 16x16 digital matrix switcher enclosure available through Ampronix with a 50 Gbps backplane that supports 4K/60 4:4:4 and 8K video formats. Four input and four output card slots accept any combination of HDMI, fiber, XTP twisted-pair, and analog I/O boards. For the redundant power supply version, see 60-1545-11.

Key capabilities

• Configurable up to 16x16 digital matrix with 4 input and 4 output card slots
• 50 Gbps backplane supports 4K/60 4:4:4 and 8K video formats
• Accepts HDMI, fiber, XTP twisted-pair, and analog I/O boards
• HDCP compliant with EDID Minder and Key Minder
• Ethernet, RS-232, and USB control; RS-232 insertion over Ethernet

Where it is used

Mid-size corporate campuses, higher-education AV closets, and professional AV environments where up to 16x16 signal routing with XTP extension is required.

Specifications at a glance

• Matrix: up to 16x16, 4 input / 4 output slots
• Backplane: 50 Gbps per input and output
• Power: single internal Everlast supply
• Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions

• Is the Extron XTP II CrossPoint 1600 60-1545-01 available new or refurbished? - Ampronix stocks the XTP II CrossPoint 1600 (60-1545-01) as a new unit through its authorized Extron distribution agreement.
• What I/O boards are compatible with the XTP II CrossPoint 1600 frame? - The 60-1545-01 accepts XTP II Series HDMI, fiber, XTP twisted-pair, and analog I/O boards across its four input and four output slots; boards can be mixed in any combination to match system requirements.
• Does Ampronix offer support for the Extron XTP II CrossPoint 1600? - Yes. Ampronix provides repair, exchange, and replacement services for the XTP II CrossPoint 1600 and the broader Extron XTP II matrix line.

Ampronix is an authorized Extron distributor. Need support for your Extron XTP II CrossPoint 1600? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron XTP line.

Also referenced as Extron XTPIICrossPoint1600, XTP-II-CrossPoint-1600-Frame, part number 60154501.
