Extron XTP System Configuration Software (v3.04 or older, part number 79-565-01) — complete setup and management tool for XTP Systems on older firmware.

An XTP System touches a lot of moving parts — input/output ties, HDCP status at each endpoint, audio format per signal path, EDID strategy — and this software puts all of it in one tabbed window instead of forcing a technician to check each transmitter and receiver individually. Because Extron versions this tool to match XTP firmware, this specific release, 79-565-01, targets XTP Systems running firmware v3.04 or older; newer firmware uses a separate release, part 79-641-01.

Key Capabilities

• Comprehensive setup and management tool for Extron XTP Systems

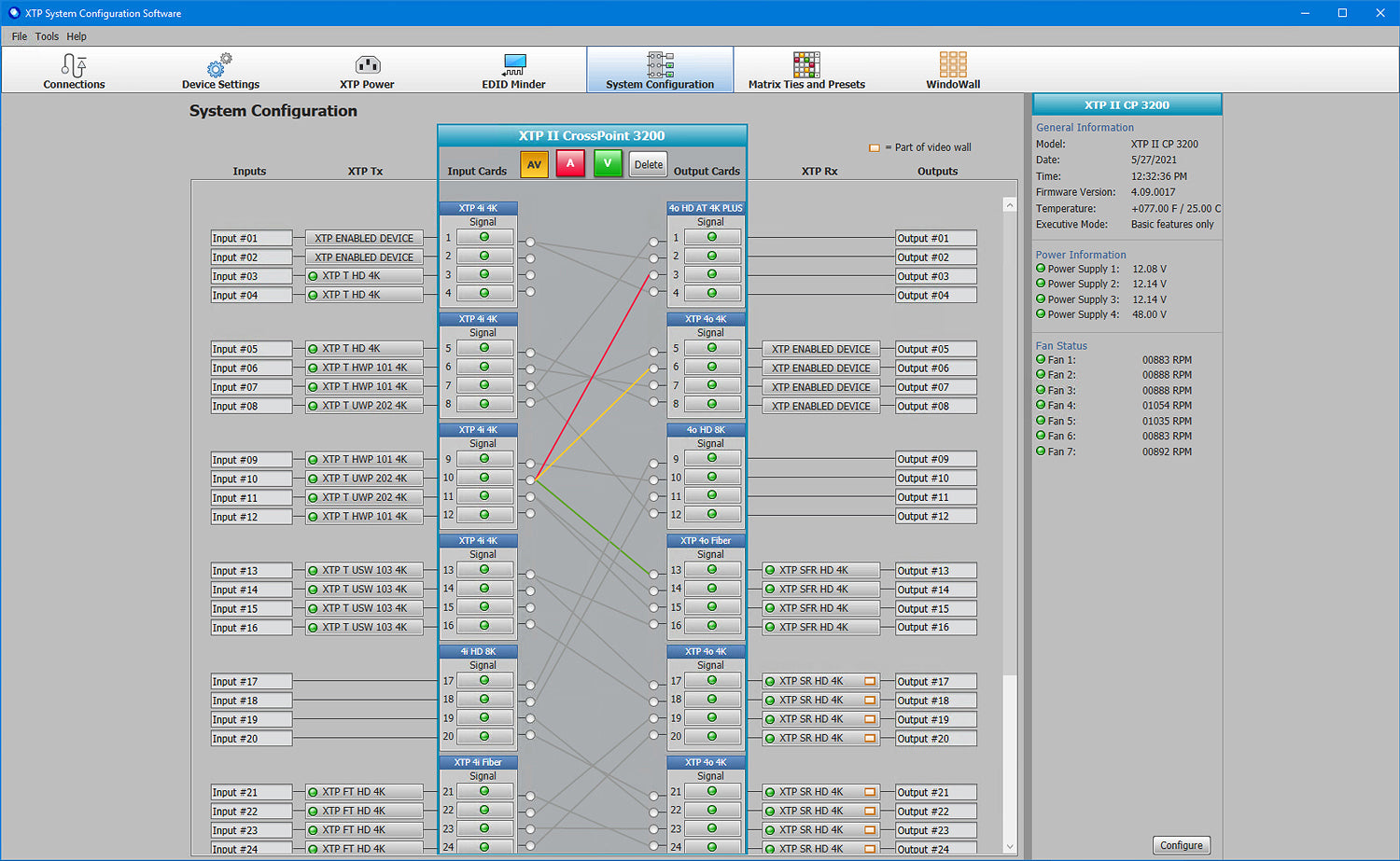

• Manages input and output ties from a single-window system view
• Monitors real-time signal and HDCP status for local and remote endpoints

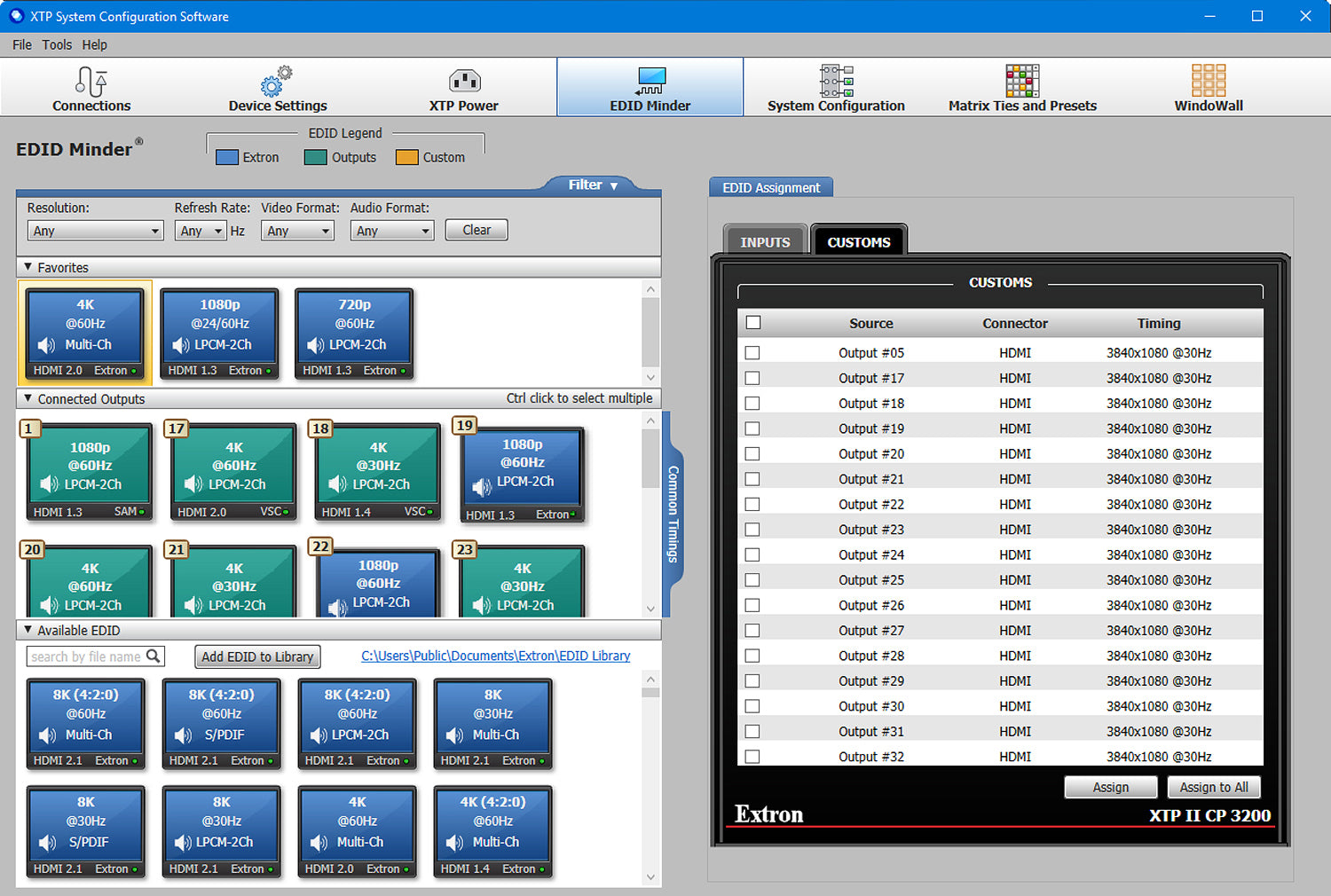

• Verifies audio formats and implements EDID strategies for any signal path
• Configures XTP transmitters and receivers directly from the software
• For XTP Systems running firmware v3.04 or older

Where It Is Used

Used to commission and manage XTP matrix switching systems still running firmware v3.04 or earlier, in control rooms and AV distribution installs built on the XTP platform.

Specifications at a Glance

• Connection: Single Ethernet or USB connection
• Firmware compatibility: XTP Systems v3.04 or older
• Manages: Ties, HDCP status, audio formats, EDID strategies

Also referenced as ExtronXTPSystemConfigurationSoftware, Extron-XTP-System-Configuration-Software-v3-04-or-older, part number 7956501.
