Extron XTP PI 400 Power Injector
- • Extron XTP PI 400 power injector
- • Powers up to 4 XTP endpoints over the signal cable
- • +48 VDC, 0.35 A, 16.8 W per output
- • Sales, replacement and exchange
- • Part# 60-1298-01 / 60129801
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

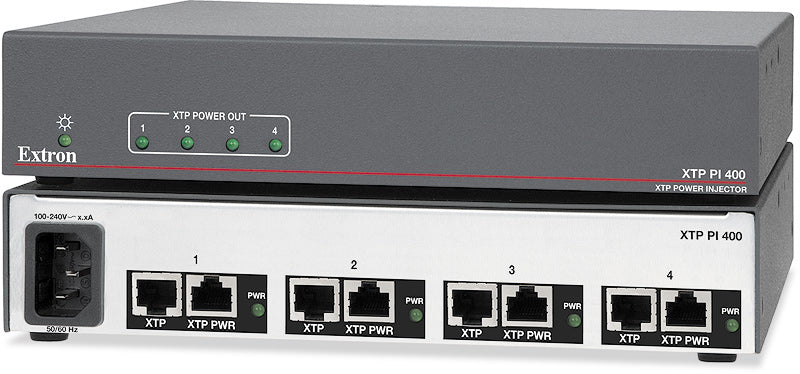

Extron XTP PI 400 (part number 60-1298-01) is a compact power injector that remotely powers an XTP twisted-pair transmitter or receiver over the same shielded twisted-pair cable used for AV signal transmission, eliminating the need for a local power supply at the endpoint.
The unit provides four RJ-45 pass-through input connectors and four RJ-45 power-and-pass-through output connectors, each delivering +48 VDC at up to 16.8 watts. It mounts in a half-rack, 1U-high metal enclosure and can also be furniture- or rack-shelf mounted with optional accessories.
Key Capabilities
- Remotely powers up to 4 XTP twisted-pair endpoints over the AV signal cable
- +48 VDC, 0.35 A, 16.8 watts per output
- Compact 1U-high, half-rack-wide metal enclosure
- Convection cooled, no vents
- Optional 1U rack shelf or under-desk furniture mounting kit
- Backed by Extron's 3-year parts-and-labor warranty
Where It Is Used
The XTP PI 400 is used alongside XTP twisted-pair transmitters and receivers in AV distribution systems where a remote endpoint needs power but a local outlet isn't practical or desired.
Specifications at a Glance
- Power output: +48 VDC, 0.35 A, 16.8 watts per output (4 outputs)
- Power consumption: 55 watts; Thermal dissipation: 187 BTU/hr
- Enclosure: 1.7" H x 8.75" W x 9.5" D (1U, half rack wide), 2.0 lbs
- 4 RJ-45 pass-through inputs, 4 RJ-45 power/pass-through outputs
- 3-year Extron parts-and-labor warranty
Frequently asked questions about the Extron XTP PI 400 Power Injector
Does Ampronix sell the Extron XTP PI 400 Power Injector?
Yes. Ampronix is an authorized Extron distributor and sells the Extron XTP PI 400 Power Injector (60-1298-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron XTP PI 400 Power Injector?
Yes. Ampronix provides sales, replacement and exchange for the Extron XTP PI 400 Power Injector. Call Ampronix for a quote.
Is the Extron XTP PI 400 Power Injector listed under other names?
Yes. The Extron XTP PI 400 Power Injector is also referenced as Extron XTPPI400, XTP-PI-400, part number 60129801.
What are the key features of the Extron XTP PI 400 Power Injector?
Key points: Remotely powers up to 4 XTP twisted-pair endpoints over the AV signal cable; +48 VDC, 0.35 A, 16.8 watts per output; Compact 1U-high, half-rack-wide metal enclosure; Convection cooled, no vents. Call Ampronix to confirm details for your application.
Also referenced as Extron XTPPI400, XTP-PI-400, part number 60129801.
Related: Extron products, Video Solutions.
Specifications
Specifications

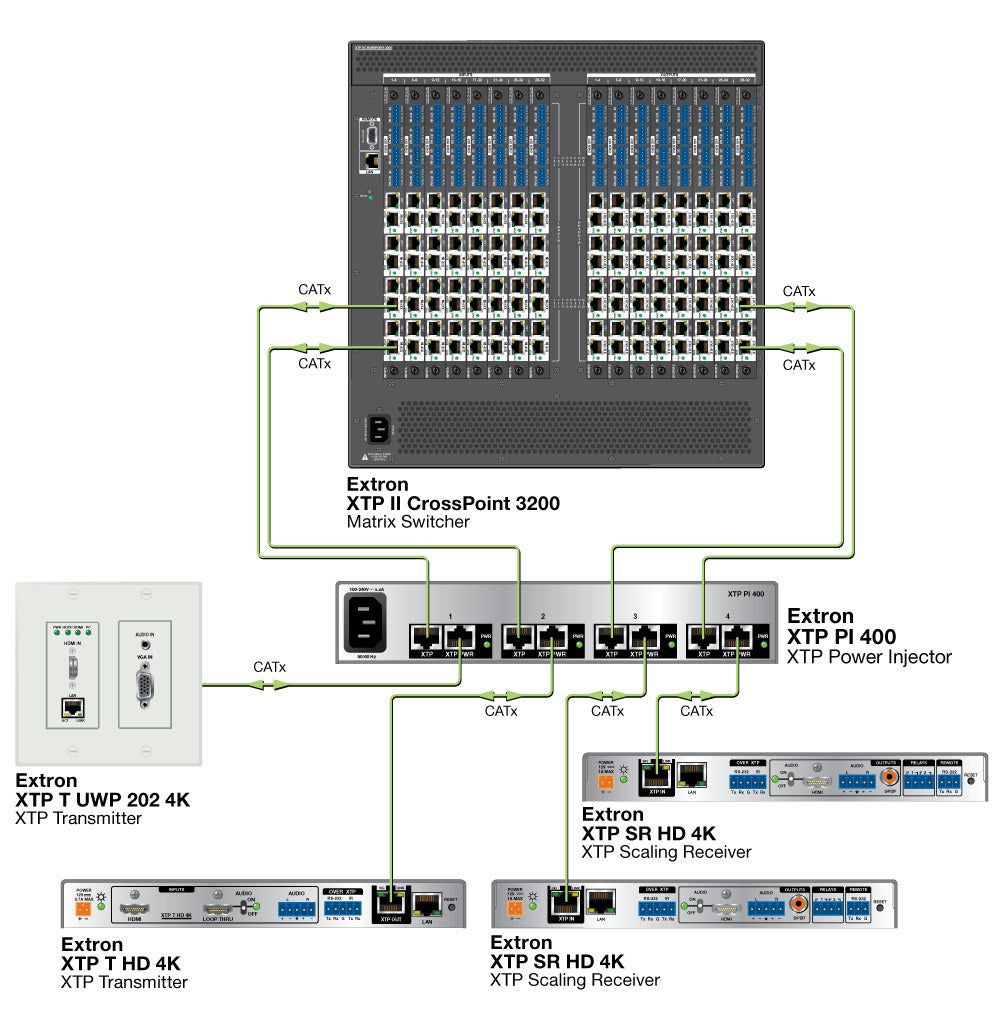

Diagram
