Extron XTP Matrix Blank Plate
- • Metal cover panel for an unused input or output board slot on XTP/XTP II CrossPoint frames
- • Secures with the same two-knob mounting system used by input and output boards
- • Installable or removable without powering down the matrix switcher
- • Compatible with XTP II CrossPoint 1600, 3200, and 6400 frame families
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

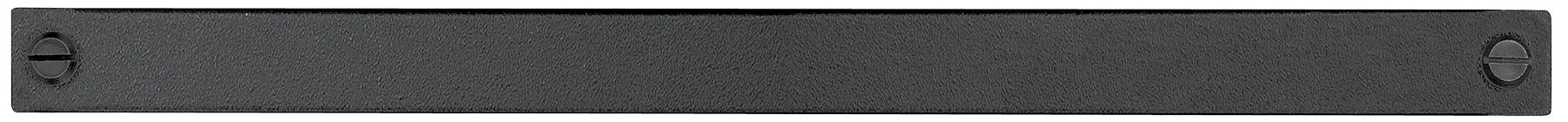

Extron XTP Matrix Blank Plate (part number 70-939-01) is a metal cover panel used to fill an unused input or output board slot on an Extron XTP or XTP II CrossPoint matrix switcher frame.
Every slot in an XTP II CrossPoint frame must have either a board or a blank plate installed. The blank plate secures to the enclosure with the same two-knob mounting system used by the input and output boards, and like the boards, it can be installed or removed without powering down the switcher.
Extron's available documentation for this part does not publish standalone electrical, dimensional, or weight specifications separate from the frame's board-slot mounting system. Contact Ampronix to confirm fitment for your specific XTP or XTP II CrossPoint frame.
Also referenced as Extron XTPMatrixBlankPlate, part number 70093901.
