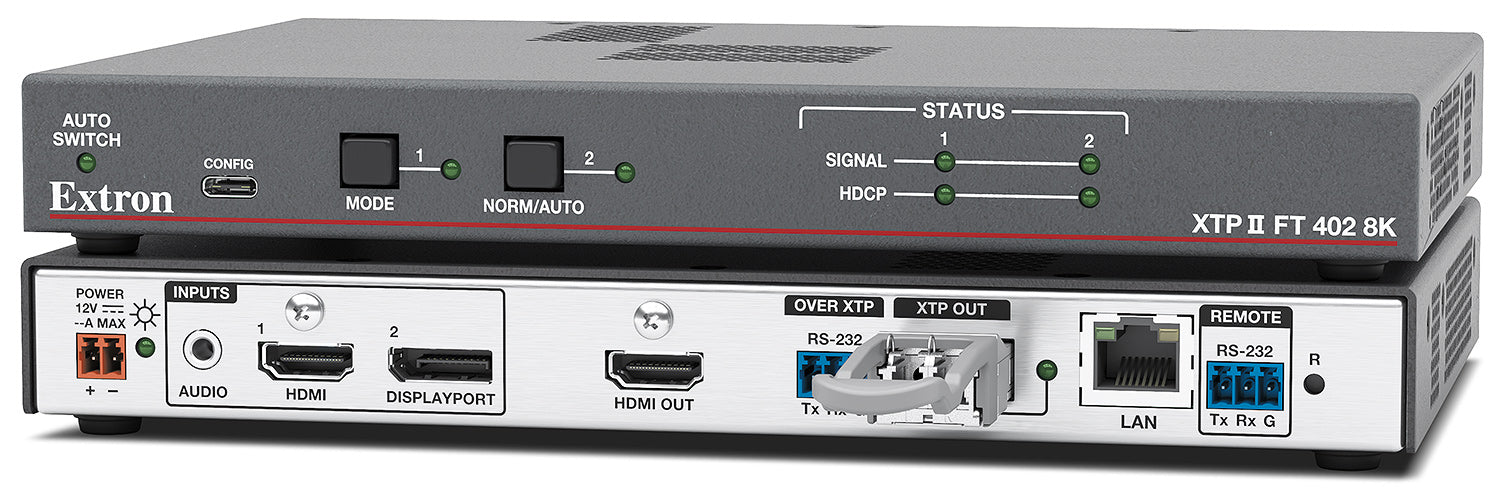

Extron XTP II FT 402 8K SM (part number 60-1779-12) — a 2-input singlemode fiber transmitter for XTP II 8K extension.

This half-rack transmitter accepts HDMI or DisplayPort sources and auto-switches between them, sending video, embedded audio, RS-232, and Ethernet to a remote XTP II receiver over a pair of singlemode fiber runs. A local HDMI output lets a nearby confidence monitor mirror the active source without extra hardware, while a front-panel USB-C port and rear RS-232 pass-through keep room control systems working across the fiber link exactly as they would over copper.

Key Capabilities

Two inputs (HDMI or DisplayPort) auto-switch and transmit over dual fiber
Supports 8K (7680x4320) at 60 Hz over HDMI and 4K/60 over DisplayPort
Reaches 10 km (6.2 miles) on singlemode fiber at up to 40 Gbps
Local HDMI loop-through lets a nearby display mirror the routed source
Passes RS-232, USB-C control, and 1 Gbps Ethernet alongside video

Where It Is Used

FT 402 8K transmitters sit at the source end of long fiber runs in production control rooms, distance-learning classrooms, and campus command centers, feeding an XTP II receiver or CrossPoint frame from a lectern, rack, or equipment closet kilometers beyond copper's practical reach.

Specifications at a Glance

2 inputs: 1 HDMI, 1 DisplayPort
Max HDMI data rate: 40.1 Gbps
Singlemode reach: 10 km (6.2 miles)
Power consumption: 17.3 W device, 19.5 W with power supply
3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron XTPIIFT4028KSM, XTP-II-FT-402-8K-SM, part number 60177912.

Specifications

Part Number: 60-1779-12

Manufacturer: Extron

Model: XTP II FT 402 8K SM

Condition: New

Video Input - Number/Signal Type: 1 single-link HDMI (or DVI-D), 1 DisplayPort

Video Input - Connectors: 1 female HDMI Type A, 1 female DisplayPort

Video Input - Horizontal Frequency: 15 kHz to 130 kHz

Video Input - Vertical Frequency: 30 Hz to 240 Hz

Video Input - HDMI Maximum Data Rate: 40.1 Gbps

Video Input - HDMI Maximum Pixel Clock: 2376 MHz

Video Input - HDMI Resolution Range: Up to 8K (7680x4320) @ 60 Hz, 5K (5120x2880) @ 60 Hz, 4K (4096x2160) @ 60 Hz, 4K (3840x2160) @ 120 Hz, 4K (3840x2160) @ 60 Hz

Video Input - HDMI Formats: RGB and YCbCr digital video

Video Input - HDMI Standards: DVI 1.0, HDMI 2.1, HDCP 1.x, HDCP 2.3

Video Input - DisplayPort Maximum Data Rate: 18 Gbps

Video Input - DisplayPort Maximum Pixel Clock: 600 MHz

Video Input - DisplayPort Standards: DisplayPort 1.2, HDCP 1.x, HDCP 2.3 (Single Stream Transport only)

Video Input - Signal Type: HDMI 2.1, HDCP 2.3

Video Input - Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Video Input - Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Video Input - Color Bit Depth: 8, 10, or 12 bits per color

Video Input - HDR: HDR10, HDR10+, and Dolby Vision

Video Output (Local Loop) - Number/Signal Type: 1 single-link HDMI (or DVI-D)

Video Output (Local Loop) - Connectors: 1 female HDMI Type A

Optical - Number/Signal Type: 1 set of proprietary signals

Optical - Connectors: 2 LC fiber connectors

Optical - Operating Distance (Singlemode): 10 km (6.21 miles) with singlemode (SM) cables

Optical - Nominal Peak Wavelength (Singlemode): 1270 nm, 1290 nm, 1310 nm, 1330 nm

Optical - Data Rate: 40 Gbps

Optical - Transmission Power (Singlemode): -4 dBm, maximum

Optical - Maximum Receiver Sensitivity (Singlemode): -11.5 dBm, maximum

Optical - Optical Loss Budget (Singlemode): 7.5 dB, maximum

Audio - Gain Range: Adjustable, -18 to +24 dB

Audio - Gain Default: Unbalanced output 0 dB; balanced output +6 dB

Audio - Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

Audio - THD + Noise: <0.1%, 20 Hz to 20 kHz at nominal level

Audio - S/N: >90 dB, at maximum balanced output (unweighted)

Audio - Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Audio - Stereo Channel Separation: >80 dB @ 1 kHz

Audio - Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Audio - Bit Depths: 16, 20, 24 bit

Audio Input - Number/Signal Type: 1 analog stereo unbalanced, 1 digital audio de-embedded from HDMI, 1 digital audio de-embedded from DisplayPort

Audio Input - Connectors: 1 female 3.5 mm mini stereo jack, 1 female HDMI Type-A (shared with video input), 1 female DisplayPort (shared with video input)

Audio Input - Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo

Audio Input - Impedance: 10k ohms unbalanced, DC coupled

Audio Input - Nominal Level: -10 dBV (316 mVrms) configurable

Audio Input - Maximum Level: +7 dBv unbalanced

Audio Output - Number/Signal Type: 1 digital audio, embedded with HDMI output

Audio Output - Connectors: 1 female HDMI Type-A (shared with video output)

Audio Output - Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel

Control - Serial Control Port (Switcher Side): 1 bidirectional RS-232, 1 rear panel 3.5 mm captive screw connector, 3 pole

Control - Baud Rate and Protocol (Switcher Side): 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity

Control - Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Control - USB Control Port: 1 front panel female USB Type-C

Control - USB Standard: USB 2.0, low speed

Control - Program Control: Extron XTP System Configuration Software for Windows; Extron Simple Instruction Set (SIS)

Control - Serial Pass-Through Port: RS-232 (±5 V) via 1 x 3.5 mm, 3 pole captive screw connector

Control - Serial Pass-Through Baud Rates: Up to 115200 baud

Control - Serial Pass-Through Protocol: Data bits = 5-8; Stop bits = 1 or 2; Parity = odd, even, none; Flow control = XON, XOFF, none

Control - Ethernet Pass-Through Port: 1 female RJ-45 connector

Control - Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with auto-detect

General - Power Supply: External; Input: 100-240 VAC, 50-60 Hz; Output: 12 VDC, 2.0 A, 24 watts

General - Power Consumption (Device): 17.3 watts, 12 VDC

General - Power Consumption (Device and Power Supply): 19.5 watts, 100-240 VAC, 50-60 Hz

General - Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing

General - Cooling: Convection, vents on sides and top

General - Thermal Dissipation (Device): 54.7 BTU/hr

General - Thermal Dissipation (Device and Power Supply): 62.4 BTU/hr

General - Mounting: Rack mount: yes, with optional 1U high rack shelf. Furniture mount: yes, with optional under-desk mounting kit

General - Enclosure Type: Metal

General - Enclosure Dimensions: 1" H x 8.75" W x 6" D, half rack wide (2.54 cm H x 22.1 cm W x 15.24 cm D); depth excludes connectors

General - Product Weight: 1.4 lbs (0.64 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | XTP II FT 402 8K SM 60-1779-12 | XTP II Systems (xtp_II_systems_revG6.pdf)

Brochure | XTP II FT 402 8K SM 60-1779-12 | XTP II Systems (xtp_II_systems_revG6_FR.pdf)

Brochure | XTP II FT 402 8K SM 60-1779-12 | XTP Systems - Serie XTP II CrossPoint

Brochure | XTP II FT 402 8K SM 60-1779-12 | XTP Systems - XTP II CrossPoint-Serie

Manual | XTP II FT 402 8K SM 60-1779-12 | XTP II FT 402 8K Setup Guide

Manual | XTP II FT 402 8K SM 60-1779-12 | XTP II FT 402 8K User Guide

Specifications | XTP II FT 402 8K SM 60-1779-12 | XTP II FT 402 8K

Panel Drawing | XTP II FT 402 8K SM 60-1779-12 | XTP II FT 402 8K
