Part Number: 60-1779-11
Manufacturer: Extron

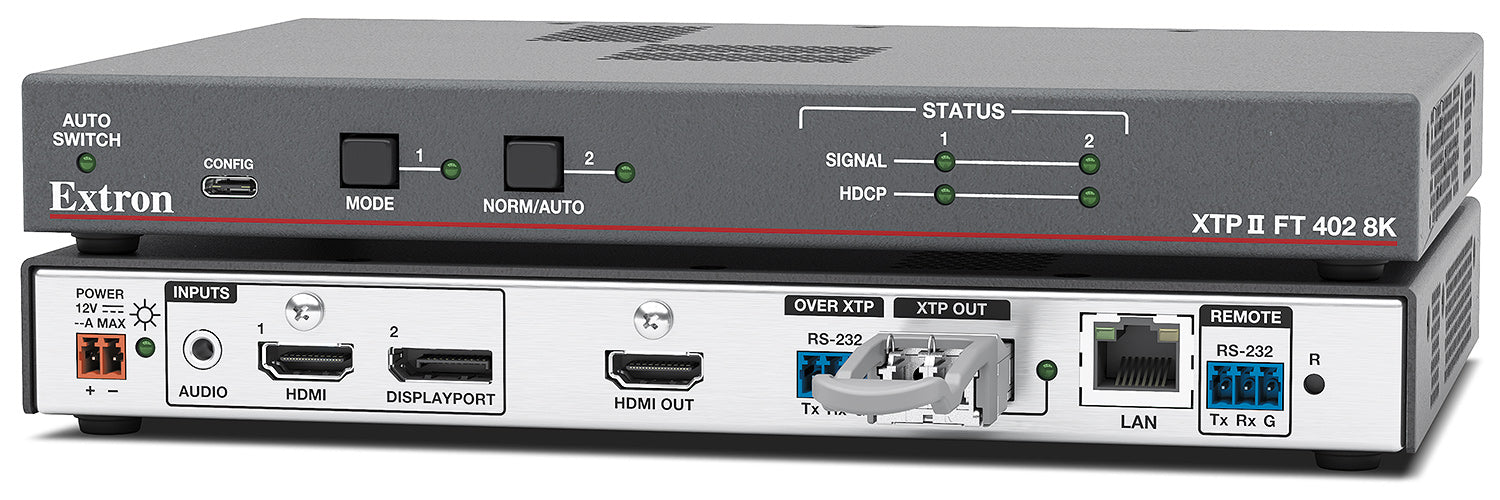

Model: XTP II FT 402 8K MM
Condition: New
Video Input - Number/Signal Type: 1 single-link HDMI (or DVI-D), 1 DisplayPort
Video Input - Connectors: 1 female HDMI Type A, 1 female DisplayPort
Video Input - Horizontal Frequency: 15 kHz to 130 kHz
Video Input - Vertical Frequency: 30 Hz to 240 Hz
Video Input - HDMI Maximum Data Rate: 40.1 Gbps
Video Input - HDMI Maximum Pixel Clock: 2376 MHz
Video Input - HDMI Resolution Range: Up to 8K (7680x4320) @ 60 Hz, 5K (5120x2880) @ 60 Hz, 4K (4096x2160) @ 60 Hz, 4K (3840x2160) @ 120 Hz, 4K (3840x2160) @ 60 Hz
Video Input - HDMI Formats: RGB and YCbCr digital video
Video Input - HDMI Standards: DVI 1.0, HDMI 2.1, HDCP 1.x, HDCP 2.3
Video Input - DisplayPort Maximum Data Rate: 18 Gbps
Video Input - DisplayPort Maximum Pixel Clock: 600 MHz
Video Input - DisplayPort Standards: DisplayPort 1.2, HDCP 1.x, HDCP 2.3 (Single Stream Transport only)
Video Input - Signal Type: HDMI 2.1, HDCP 2.3
Video Input - Frame Rate: 24, 25, 30, 50, 60, or 120 fps
Video Input - Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0
Video Input - Color Bit Depth: 8, 10, or 12 bits per color
Video Input - HDR: HDR10, HDR10+, and Dolby Vision
Video Output (Local Loop) - Number/Signal Type: 1 single-link HDMI (or DVI-D)
Video Output (Local Loop) - Connectors: 1 female HDMI Type A
Optical - Number/Signal Type: 1 set of proprietary signals
Optical - Connectors: 2 LC fiber connectors
Optical - Operating Distance (Multimode): 300 m (980') with 50 µm OM3 2000 MHz bandwidth laser optimized multimode cable; 400 m (1312') with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cable (must use OM3/OM4 cable, not compatible with OM1/OM2 cable)
Optical - Nominal Peak Wavelength (Multimode): 850 nm, 880 nm, 910 nm, 940 nm
Optical - Data Rate: 40 Gbps
Optical - Transmission Power (Multimode): -5.5 dBm, maximum
Optical - Maximum Receiver Sensitivity (Multimode): -9.1 dBm, maximum
Optical - Optical Loss Budget (Multimode): 3.6 dB, maximum
Audio - Gain Range: Adjustable, -18 to +24 dB
Audio - Gain Default: Unbalanced output 0 dB; balanced output +6 dB
Audio - Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
Audio - THD + Noise: <0.1%, 20 Hz to 20 kHz at nominal level
Audio - S/N: >90 dB, at maximum balanced output (unweighted)
Audio - Crosstalk: ≤-80 dB @ 1 kHz, fully loaded
Audio - Stereo Channel Separation: >80 dB @ 1 kHz
Audio - Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Audio - Bit Depths: 16, 20, 24 bit
Audio Input - Number/Signal Type: 1 analog stereo unbalanced, 1 digital audio de-embedded from HDMI, 1 digital audio de-embedded from DisplayPort
Audio Input - Connectors: 1 female 3.5 mm mini stereo jack, 1 female HDMI Type-A (shared with video input), 1 female DisplayPort (shared with video input)
Audio Input - Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo
Audio Input - Impedance: 10k ohms unbalanced, DC coupled
Audio Input - Nominal Level: -10 dBV (316 mVrms) configurable
Audio Input - Maximum Level: +7 dBv unbalanced
Audio Output - Number/Signal Type: 1 digital audio, embedded with HDMI output
Audio Output - Connectors: 1 female HDMI Type-A (shared with video output)
Audio Output - Source Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Control - Serial Control Port (Switcher Side): 1 bidirectional RS-232, 1 rear panel 3.5 mm captive screw connector, 3 pole
Control - Baud Rate and Protocol (Switcher Side): 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity
Control - Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd
Control - USB Control Port: 1 front panel female USB Type-C
Control - USB Standard: USB 2.0, low speed
Control - Program Control: Extron XTP System Configuration Software for Windows; Extron Simple Instruction Set (SIS)
Control - Serial Pass-Through Port: RS-232 (±5 V) via 1 x 3.5 mm, 3 pole captive screw connector
Control - Serial Pass-Through Baud Rates: Up to 115200 baud
Control - Serial Pass-Through Protocol: Data bits = 5-8; Stop bits = 1 or 2; Parity = odd, even, none; Flow control = XON, XOFF, none
Control - Ethernet Pass-Through Port: 1 female RJ-45 connector
Control - Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with auto-detect
General - Power Supply: External; Input: 100-240 VAC, 50-60 Hz; Output: 12 VDC, 2.0 A, 24 watts
General - Power Consumption (Device): 17.3 watts, 12 VDC
General - Power Consumption (Device and Power Supply): 19.5 watts, 100-240 VAC, 50-60 Hz
General - Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing
General - Cooling: Convection, vents on sides and top
General - Thermal Dissipation (Device): 54.7 BTU/hr
General - Thermal Dissipation (Device and Power Supply): 62.4 BTU/hr
General - Mounting: Rack mount: yes, with optional 1U high rack shelf. Furniture mount: yes, with optional under-desk mounting kit
General - Enclosure Type: Metal
General - Enclosure Dimensions: 1" H x 8.75" W x 6" D, half rack wide (2.54 cm H x 22.1 cm W x 15.24 cm D); depth excludes connectors
General - Product Weight: 1.4 lbs (0.64 kg)
Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; complies with the appropriate requirements of RoHS, WEEE
Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
