Extron XTP II CrossPoint 6400 64x64 Matrix Frame 60-1386-02

Extron XTP II CrossPoint 6400 64x64 Matrix Frame 60-1386-02

Manufacturer: Extron

Type: XTP Systems

Extron XTP II CrossPoint 6400 64x64 Matrix Frame

  • • Configurable 64x64 digital matrix with 16 input and 16 output card slots
  • • 50 Gbps backplane throughput per input and output supports 8K formats
  • • Supports up to 128 XTP twisted-pair endpoints with remote power
  • • Ethernet, RS-232/RS-422, and USB control ports for full system integration
  • • Redundant power supply standard on this frame
  • • 20U rack-mount metal enclosure at 35.0 x 17.0 x 17.5 in
  • • Backed by Extron's 3-year parts-and-labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XTPIICROSSPOINT6400FRAME-60138602

Details

Extron XTP II CrossPoint 6400 (part number 60-1386-02) is a modular 64x64 digital matrix switcher enclosure built for large-scale XTP II Systems installations.

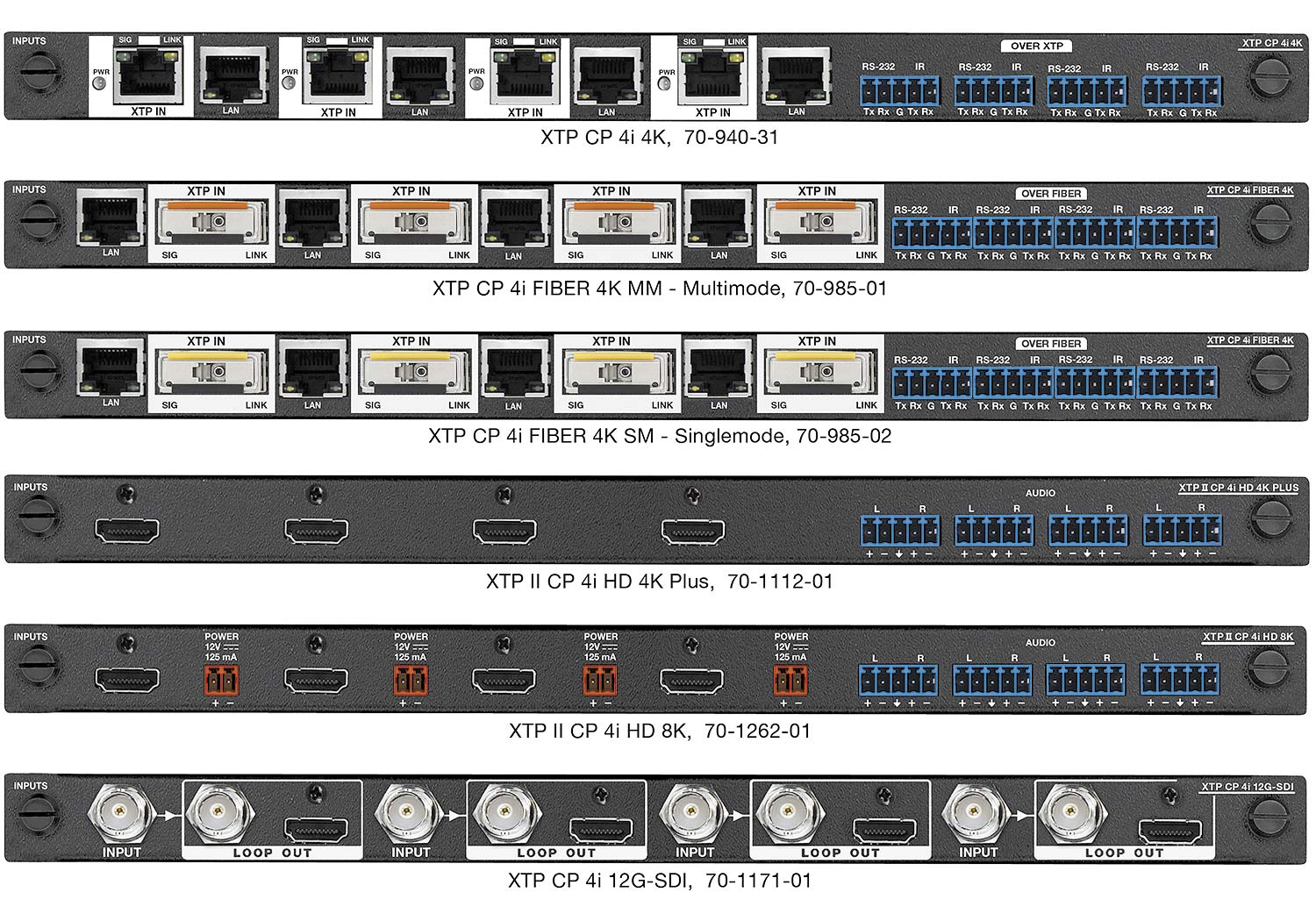

This 20U, full-rack-wide frame provides sixteen input and sixteen output card slots, so integrators can combine HDMI, HD 8K, fiber, and XTP twisted-pair boards to build a matrix scaled up to 64x64. Every slot connects to a 50 Gbps backplane for video, audio, and control, while built-in Ethernet, RS-232/RS-422, and USB ports give it direct third-party control system integration.

Key Capabilities

  • Configurable 64x64 digital matrix with 16 input and 16 output card slots
  • 50 Gbps backplane throughput per input and output supports 8K formats
  • Supports up to 128 XTP twisted-pair endpoints with remote power
  • Ethernet, RS-232/RS-422, and USB control ports for full system integration
  • Redundant power supply standard on this frame
  • 20U rack-mount metal enclosure at 35.0 x 17.0 x 17.5 in
  • Backed by Extron's 3-year parts-and-labor warranty

Where It Is Used

This CrossPoint 6400 frame anchors the largest AV distribution systems — broadcast facilities, large campuses, enterprise control rooms — anywhere a mix of HDMI, 8K, and fiber sources and displays need to pass through one flexible, card-based matrix at scale.

Specifications at a Glance

  • 64x64 matrix, 16 input / 16 output card slots
  • Backplane throughput: 50 Gbps per input and output
  • 20U rack-mount metal enclosure, 35.0" H x 17.0" W x 17.5" D
  • Power consumption: 170 to 3,500 watts depending on configuration
  • 3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICrossPoint6400, XTP-II-CrossPoint-6400, part number 60138602.
