Extron XTP II CrossPoint 3200 32x32 Matrix Frame
- • Configurable 32x32 digital matrix with 8 input and 8 output card slots
- • 50 Gbps backplane throughput per input and output supports 8K formats
- • Supports up to 24 XTP twisted-pair endpoints with remote power
- • Ethernet, RS-232/RS-422, and USB control ports for full system integration
- • Redundant power supply standard; 20A-capable IEC C20 power inlet
- • 10U rack-mount metal enclosure at 17.5 x 17.0 x 17.5 in
- • Backed by Extron's 3-year parts-and-labor warranty, 7-year on the Everlast power supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

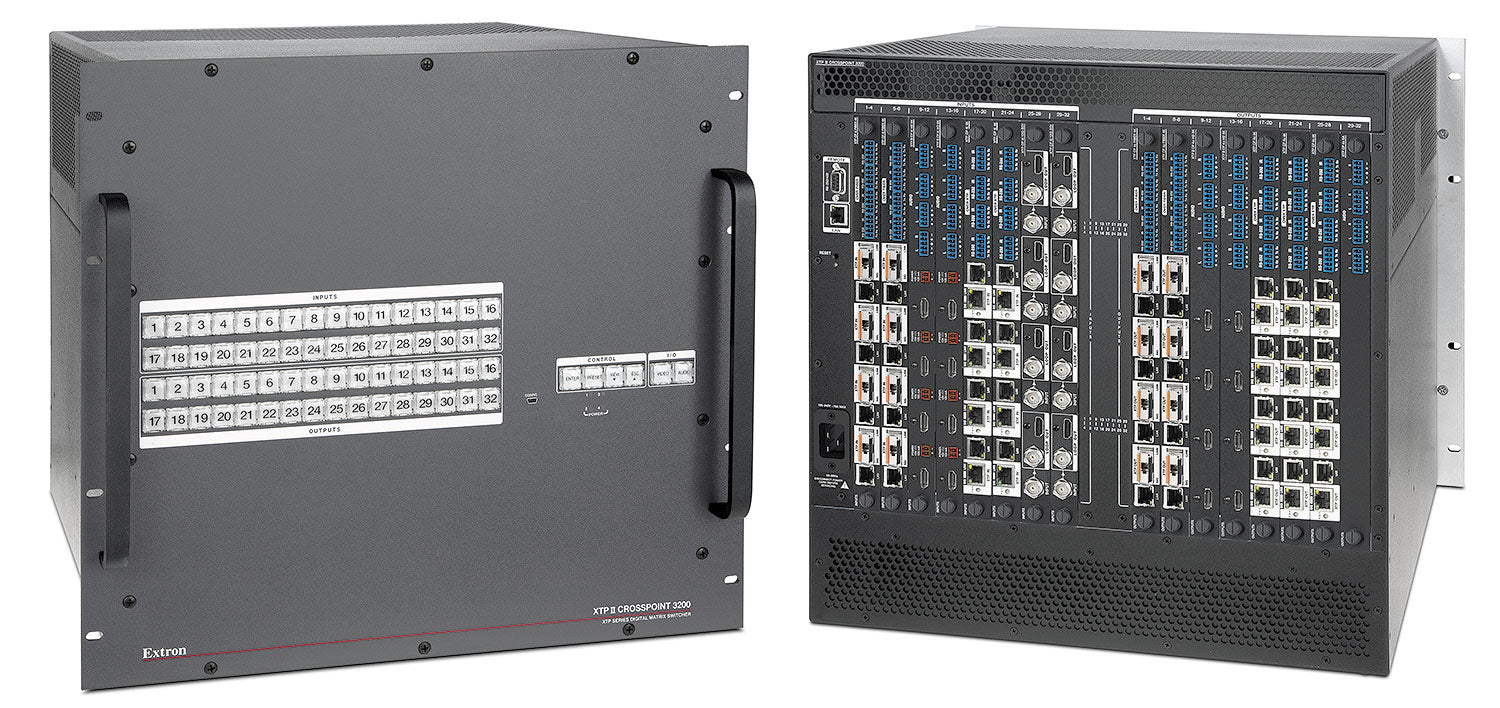

Extron XTP II CrossPoint 3200 (part number 60-1981-01) is a modular 32x32 digital matrix switcher enclosure built for XTP II Systems installations, fitted with a 20A-capable IEC 60320 C20 power inlet.

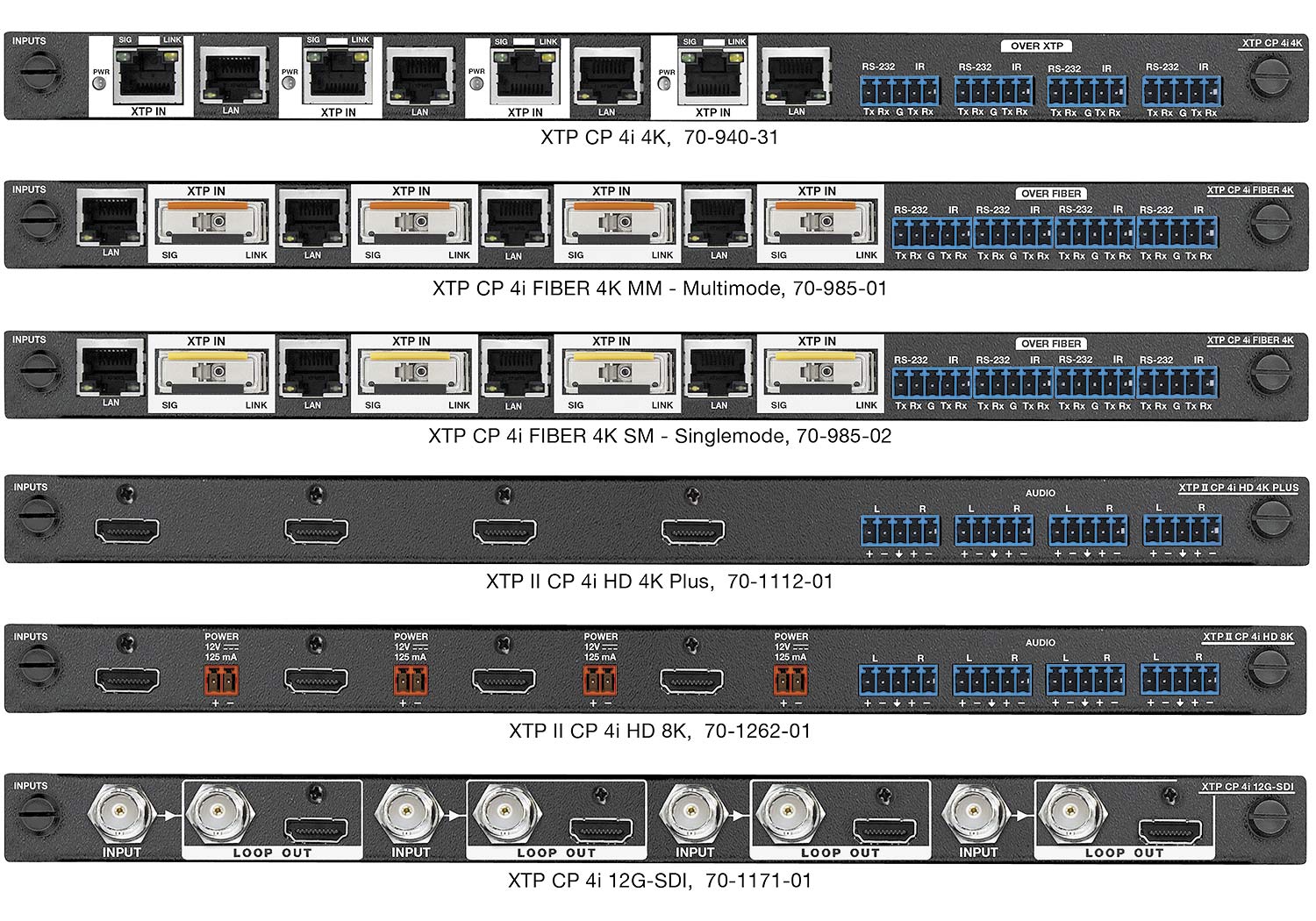

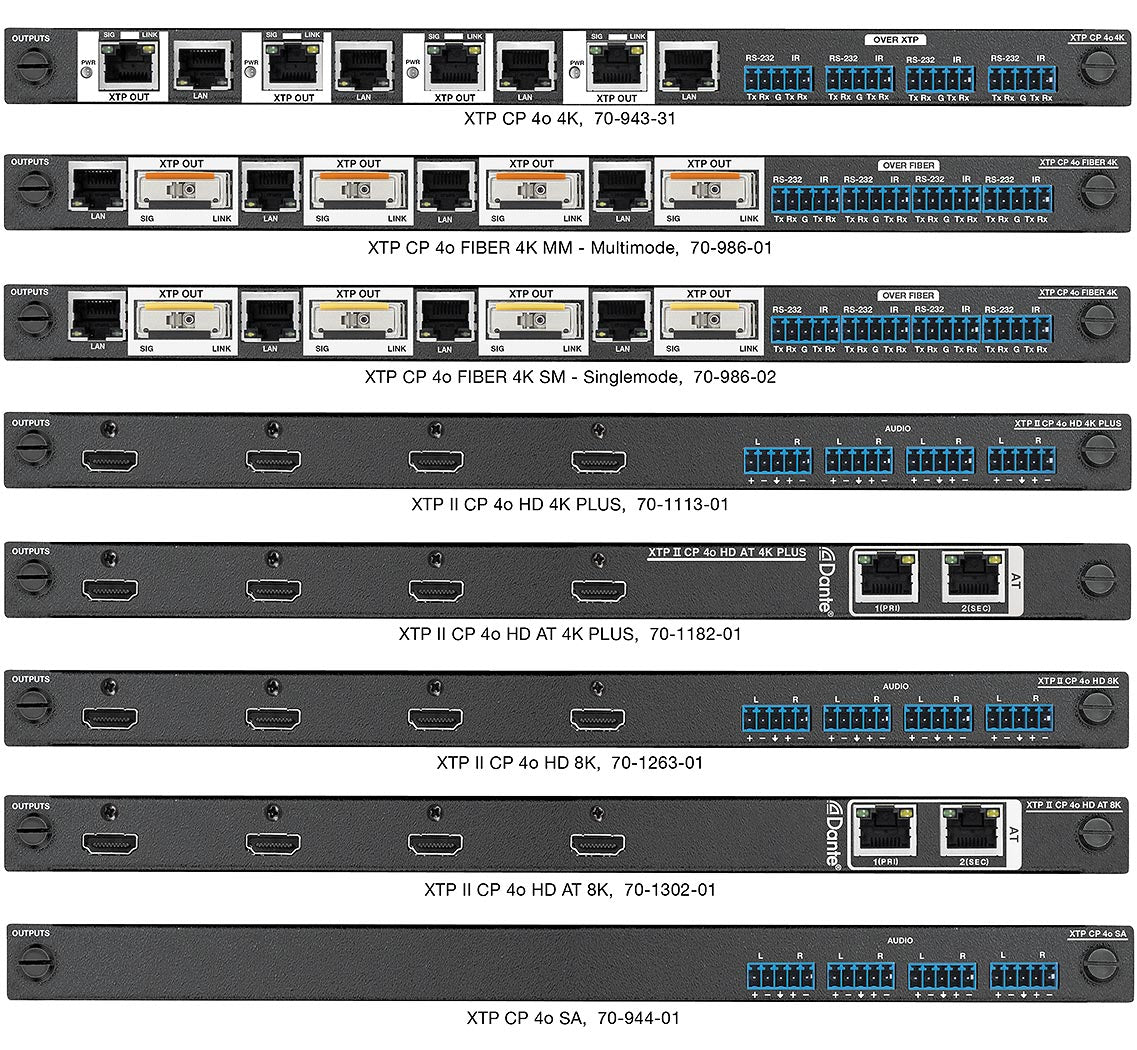

This 10U, full-rack-wide frame provides eight input and eight output card slots, so integrators can combine HDMI, HD 8K, fiber, and XTP twisted-pair boards to build a matrix scaled up to 32x32. Every slot connects to a 50 Gbps backplane for video, audio, and control, while built-in Ethernet, RS-232/RS-422, and USB ports give it direct third-party control system integration.
Key Capabilities
- Configurable 32x32 digital matrix with 8 input and 8 output card slots
- 50 Gbps backplane throughput per input and output supports 8K formats
- Supports up to 24 XTP twisted-pair endpoints with remote power
- Ethernet, RS-232/RS-422, and USB control ports for full system integration
- Redundant power supply standard; 20A-capable IEC C20 power inlet
- 10U rack-mount metal enclosure at 17.5 x 17.0 x 17.5 in
- Backed by Extron's 3-year parts-and-labor warranty (7-year on the Everlast power supply)
Where It Is Used
This CrossPoint 3200 frame anchors larger AV distribution systems — corporate campuses, university lecture halls, broadcast control rooms — anywhere a mix of HDMI, 8K, and fiber sources and displays need to pass through one flexible, card-based matrix at scale.
Specifications at a Glance
- 32x32 matrix, 8 input / 8 output card slots
- Backplane throughput: 50 Gbps per input and output
- 10U rack-mount metal enclosure, 17.5" H x 17.0" W x 17.5" D
- Power consumption: 92 to 1,275 watts depending on configuration
- 3-year Extron parts-and-labor warranty; 7-year Everlast power supply warranty
Also referenced as Extron XTPIICrossPoint3200, XTP-II-CrossPoint-3200, part number 60198101.
