Extron XTP II CrossPoint 3200 Frame 60-1546-01

Details

Manufacturer: Extron | Model: XTP II CrossPoint 3200 Frame | Part number: 60-1546-01 (also written 60154601)

The Extron XTP II CrossPoint 3200 Frame (60-1546-01) is a modular 32x32 digital matrix switcher enclosure for XTP II Systems. Eight input card slots and eight output card slots accept any combination of HDMI, HD 8K, fiber, and XTP twisted-pair boards to build a custom matrix from 4x4 up to 32x32. A 50 Gbps backplane per slot handles 4K/60 4:4:4 at 16 bits per color and supports 8K video formats for future headroom. Ethernet, RS-232/RS-422, and USB control ports connect directly to third-party control systems, and the chassis supports remote power to up to 24 XTP twisted-pair endpoints over a single CATx cable.

Key Capabilities

Configurable 32x32 digital matrix with 8 input and 8 output card slots
50 Gbps backplane throughput per input and output supports 4K/60 4:4:4 and 8K video formats

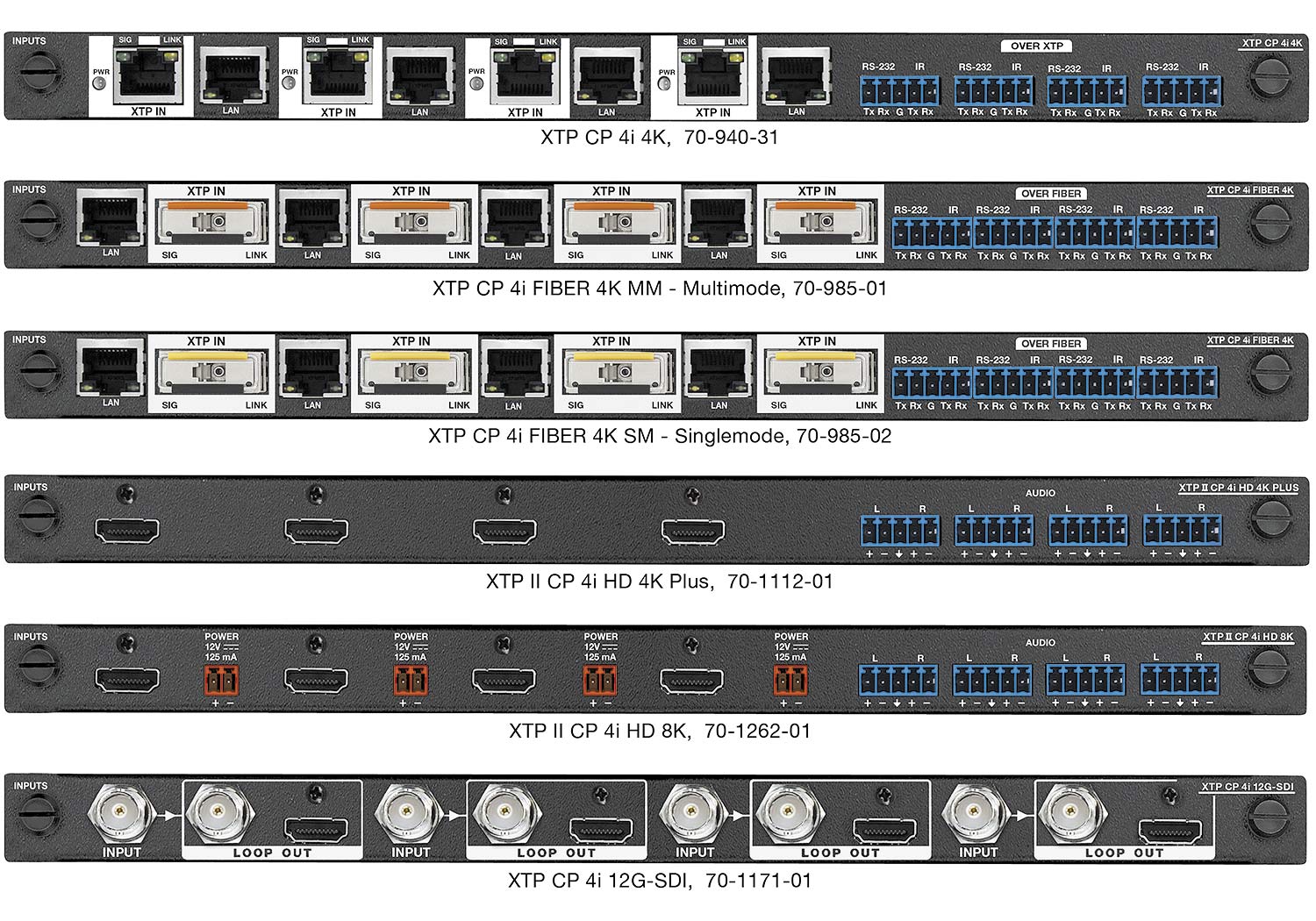

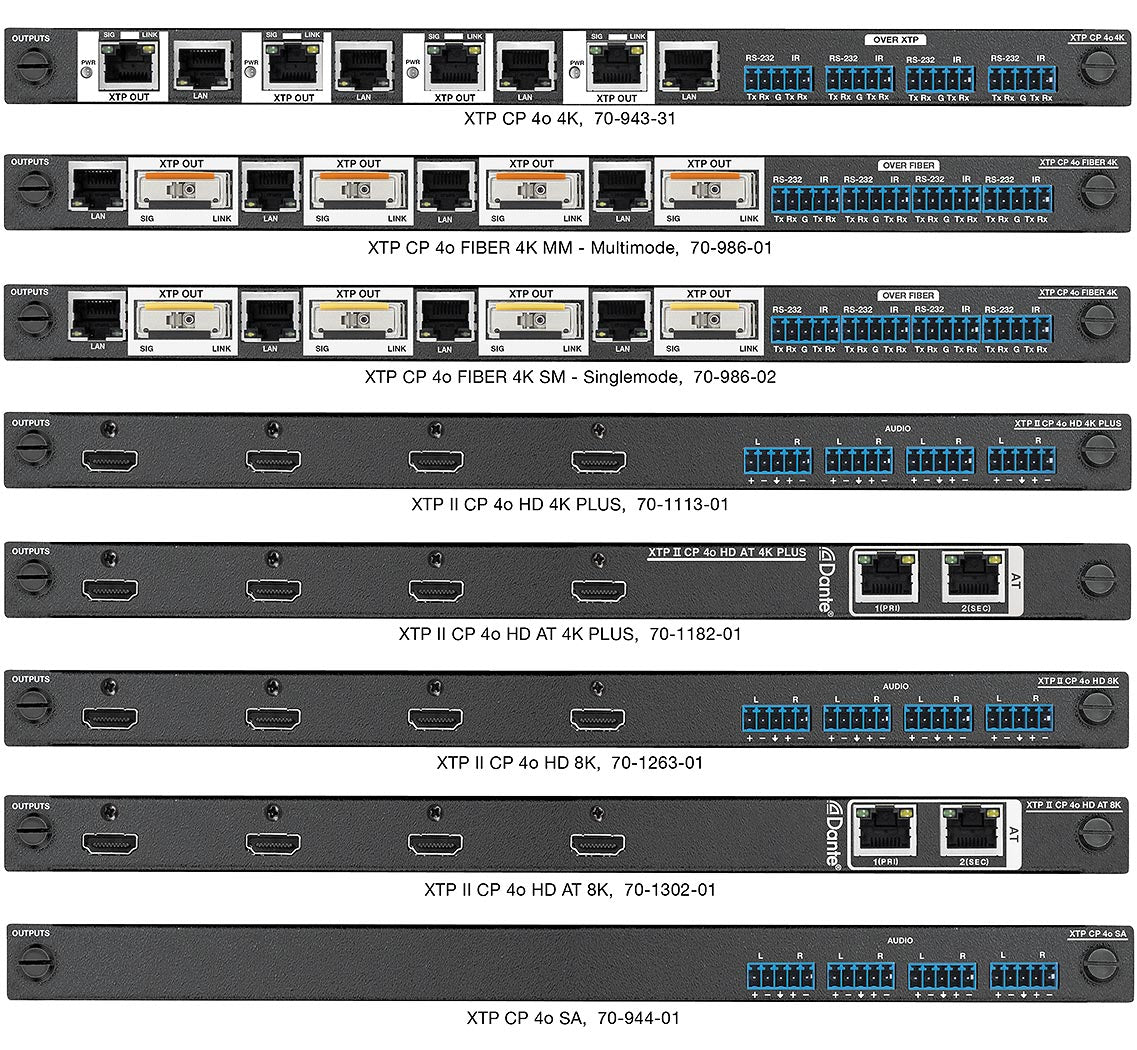

Accepts HDMI, HD 8K, 3G-SDI, 12G-SDI, RGBHV, analog video, XTP, and fiber I/O boards
Remote power to up to 24 XTP twisted-pair endpoints over CATx
Ethernet, RS-232/RS-422, and USB control ports for full third-party system integration
WindoWall Mode for videowall applications using scaling receivers across multiple displays

Where It Is Used

Corporate campuses, university AV infrastructure, broadcast control rooms, government command centers, and large-venue installations where a mix of HDMI, 8K, SDI, and fiber sources must be routed to any of up to 32 displays, recorders, or remote endpoints.

Specifications at a Glance

Enclosure: 17.5 in H x 17.0 in W x 17.5 in D, 10U high, full rack wide, metal
Backplane: 50 Gbps per input and output slot
Power: internal Everlast supply, C14 inlet, 102 to 1,185 W depending on configuration
Operating: +32 to +122 F, 10% to 90% noncondensing; fan cooled right to left
Warranty: 3-year parts and labor; 7-year Everlast power supply

Also referenced as Extron XTPIICrossPoint3200, XTP-II-CrossPoint-3200-Frame, part number 60154601.

Specifications

Part Number: 60-1546-01

Manufacturer: Extron

Condition: New

115 VAC, 60 Hz: 116 watts (no load); 170 watts (4 load boards installed)

240 VAC, 50 Hz: 102 watts (no load); 167 watts (4 load boards installed)

Power: Internal (IEC 60320 C14 inlet). Input: 100-240 VAC, 50-60 Hz. Standard IEC cord and 15A power source. Redundant power supply is standard.

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Backplane throughput: 50 Gbps per input and output

Baud rate and protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, 12, or 16 bits per color

Cooling: Fan, right to left (as viewed from front panel)

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI, KC

Enclosure dimensions: 17.5" H x 17.0" W x 17.5" D (10U high, full rack wide) (44.5 cm H x 43.2 cm W x 44.5 cm D) (Depth excludes connectors. Width excludes rack ears.)

Enclosure type: Metal

Environmental: Complies with the appropriate requirements of RoHS, WEEE.

Ethernet control port: 1 female RJ-45

Ethernet data rate (for network communication): 10/100Base-T, half/full duplex with autodetect

Ethernet default settings: Link speed and duplex level = autodetected. IP address = 192.168.254.254. Subnet mask = 255.255.0.0. Default gateway = 0.0.0.0. DHCP = off

Ethernet protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

Everlast power supply warranty: 7 years parts and labor

Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Input audio signal format: PCM up to 8 ch, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, analog stereo

Input video signal format: HDMI, DVI, 3G-SDI, 12G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber

Maximum throughput: 50 Gbps

Number of input slots: 8

Number of output slots: 8

Output audio signal format: PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo

Output video signal format: HDMI, DVI, XTP twisted pair, XTP fiber

Power consumption: 102 to 1,185 watts, depending on the configuration

Product warranty: 3 years parts and labor

Product weight with boards installed: 64.0 lbs (29.0 kg)

Program control: Extron XTP System Configuration Software for Windows®. Extron Simple Instruction Set (SIS™). Microsoft® Internet Explorer® ver. 6 or higher, Telnet

RS-232: 2 = Tx, 3 = Rx, 5 = GND

RS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+

Rack mount: Yes

Remote power capability: Supports up to 24 XTP twisted pair endpoints

Safety: CE, c-UL, UL

Serial host control port: 1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector

Switcher: 32x32 matrix

Thermal dissipation: 348 to 4,043 BTU/hr, depending on the configuration

USB control port: 1 front panel female mini USB B

USB standards: USB 2.0, low speed

Vibration: ISTA 1A in carton (International Safe Transit Association)

Web server: Up to 200 simultaneous sessions. 7.0 MB nonvolatile user memory
