Extron XTP II CrossPoint 1600 16x16 Matrix Frame w/ RPS 60-2031-11

Extron XTP II CrossPoint 1600 16x16 Matrix Frame w/ RPS 60-2031-11

Manufacturer: Extron

Type: XTP Systems

Extron XTP II CrossPoint 1600 Frame w/ RPS 16x16 Matrix

  • • Configurable 16x16 digital matrix with 4 input and 4 output card slots
  • • 50 Gbps backplane throughput per input and output supports 8K formats
  • • Supports up to 28 XTP twisted-pair endpoints with remote power
  • • Ethernet, RS-232/RS-422, and USB control ports for full system integration
  • • Redundant, hot-swappable power supply standard on this frame
  • • 5U rack-mount metal enclosure at 8.75 x 17.0 x 17.5 in
  • • Backed by Extron's 3-year parts-and-labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XTPIICROSSPOINT1600FRAMEWRPS-60203111

Details

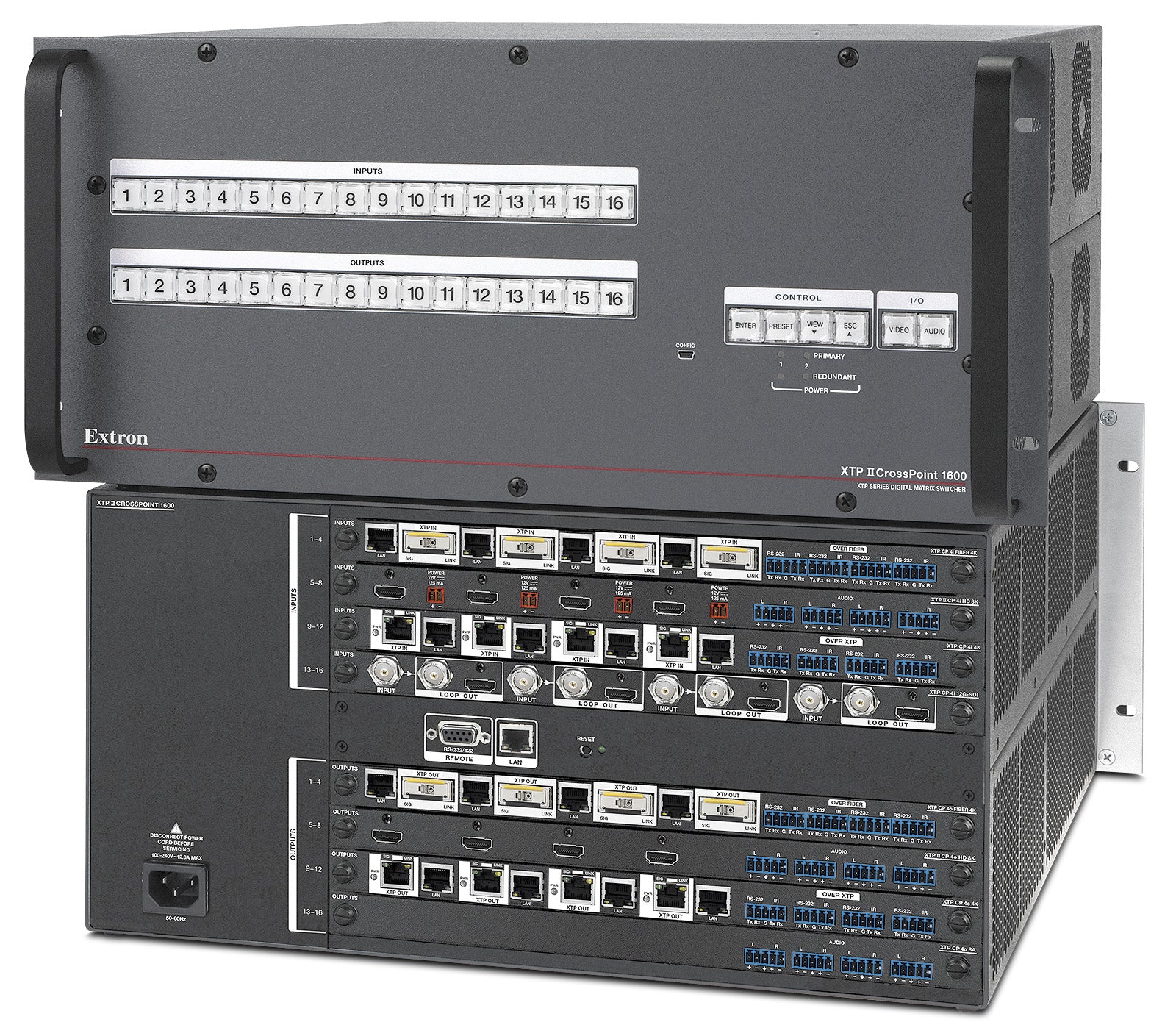

Extron XTP II CrossPoint 1600 Frame w/ RPS (part number 60-2031-11) is a modular 16x16 digital matrix switcher enclosure for XTP II Systems, built around the same 5U, 8-slot frame as the standard XTP II CrossPoint 1600 and shipped with its redundant power supply installed.

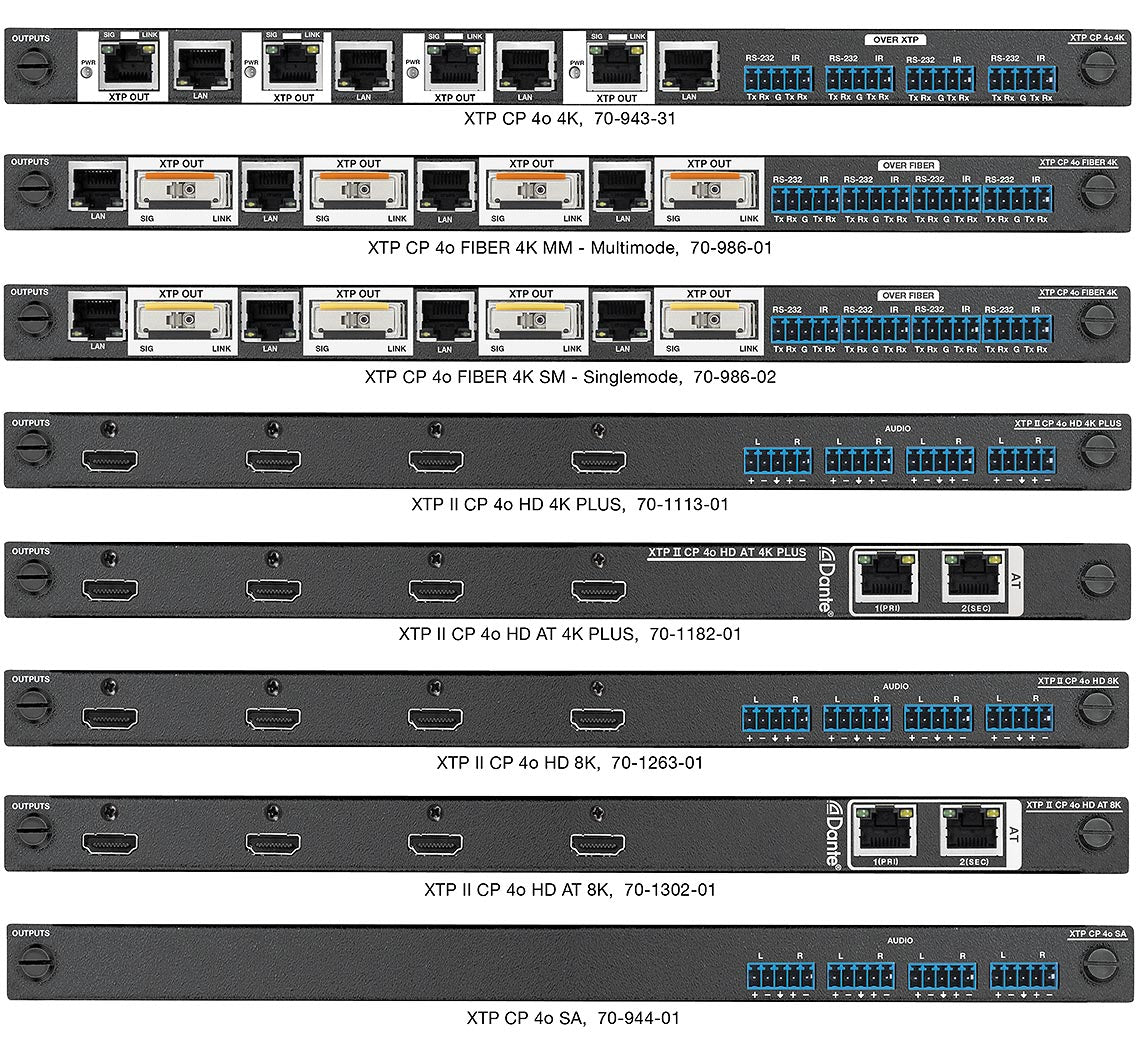

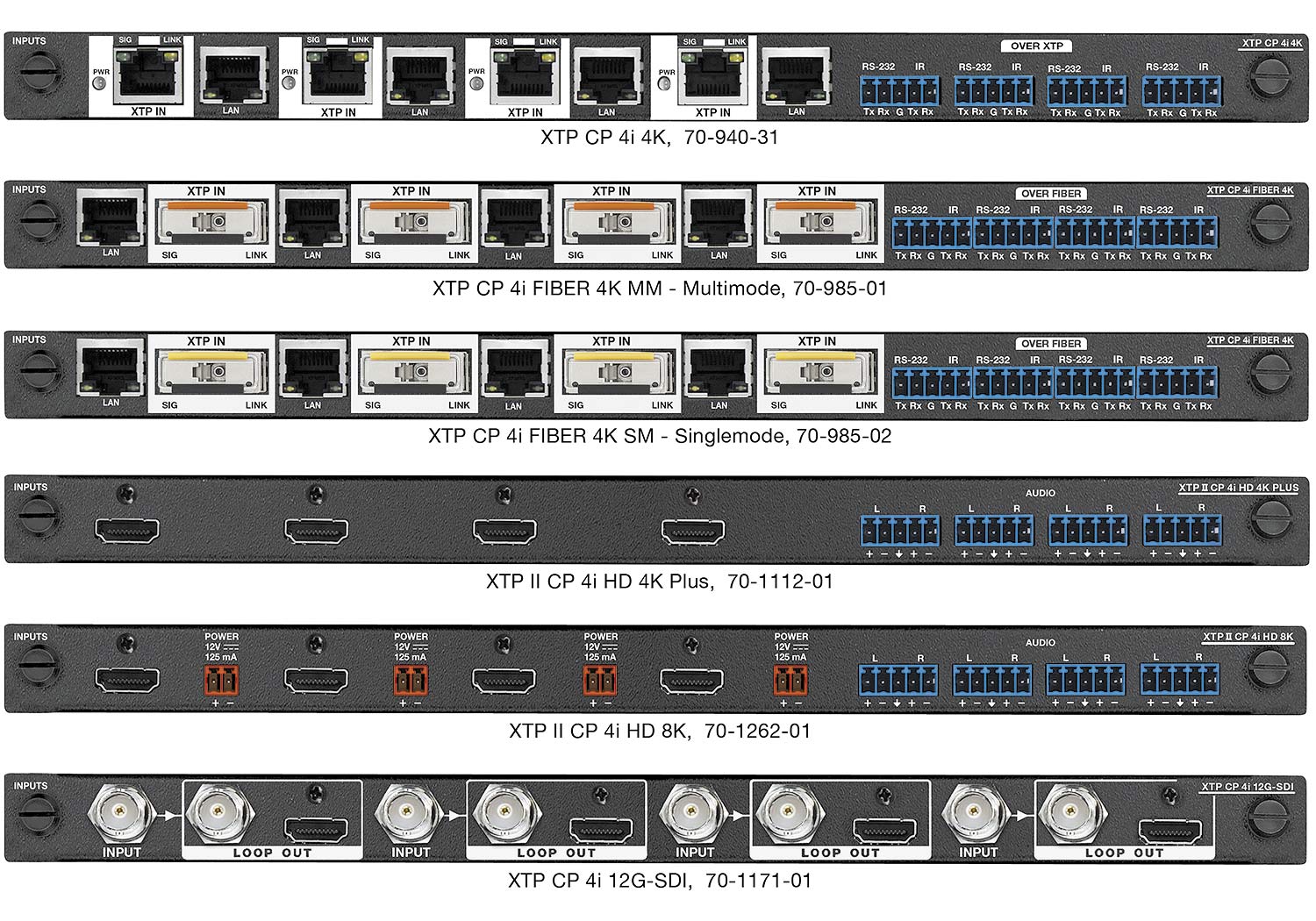

Four input and four output card slots let integrators mix and match HDMI, HD 8K, fiber, and XTP twisted-pair boards to build a matrix scaled up to 16x16, all moving across a 50 Gbps backplane. Onboard Ethernet, RS-232/RS-422, and USB ports handle control and third-party integration without additional hardware.

Key Capabilities

  • Configurable 16x16 digital matrix with 4 input and 4 output card slots
  • 50 Gbps backplane throughput per input and output supports 8K formats
  • Supports up to 28 XTP twisted-pair endpoints with remote power
  • Ethernet, RS-232/RS-422, and USB control ports for full system integration
  • Redundant, hot-swappable power supply standard on this frame
  • 5U rack-mount metal enclosure at 8.75 x 17.0 x 17.5 in
  • Backed by Extron's 3-year parts-and-labor warranty

Where It Is Used

This frame anchors mid-size AV distribution systems — corporate campuses, university lecture halls, broadcast control rooms — anywhere a mix of HDMI, 8K, and fiber sources and displays need to pass through one flexible, card-based matrix with power redundancy built in.

Specifications at a Glance

  • 16x16 matrix, 4 input / 4 output card slots
  • Backplane throughput: 50 Gbps per input and output
  • 5U rack-mount metal enclosure, 8.75" H x 17.0" W x 17.5" D
  • Power consumption: 45 to 875 watts depending on configuration
  • 3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICrossPoint1600FrameWRPS, XTP-II-CrossPoint-1600-w-RPS, part number 60203111.
