Extron XTP II CrossPoint 1600 16x16 Matrix Frame 60-2031-01

Extron XTP II CrossPoint 1600 16x16 Matrix Frame 60-2031-01

Manufacturer: Extron

Type: XTP Systems

Extron XTP II CrossPoint 1600 16x16 Matrix Frame

  • • Configurable 16x16 digital matrix with 4 input and 4 output card slots
  • • 50 Gbps backplane throughput per input and output supports 8K formats
  • • Supports up to 28 XTP twisted-pair endpoints with remote power
  • • Ethernet, RS-232/RS-422, and USB control ports for full system integration
  • • Redundant power supply keeps the matrix running through a PSU failure
  • • 5U rack-mount metal enclosure at 8.75 x 17.0 x 17.5 in
  • • Backed by Extron's 3-year parts-and-labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XTPIICROSSPOINT1600FRAME-60203101

Details

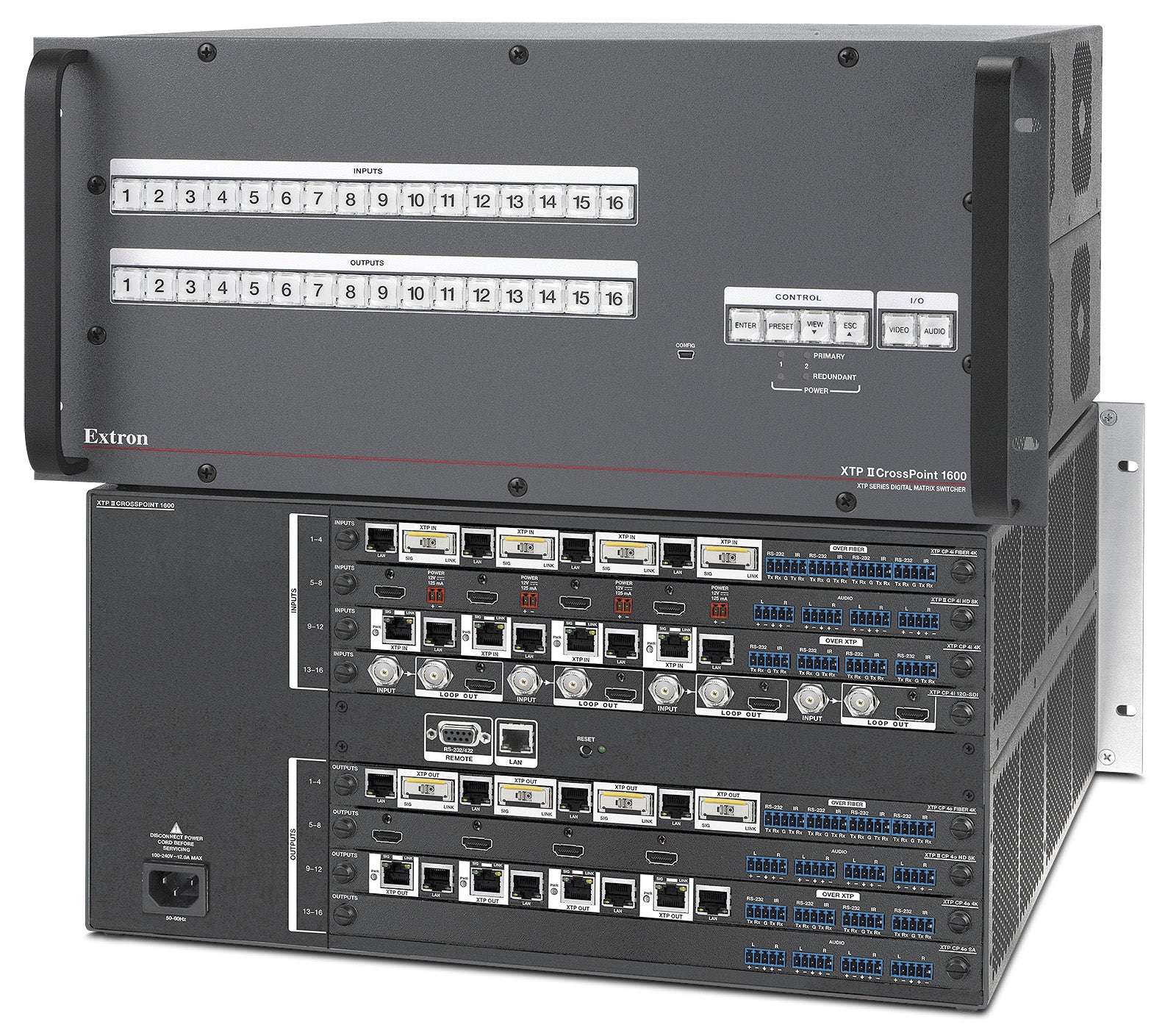

Extron XTP II CrossPoint 1600 (part number 60-2031-01) is a modular 16x16 digital matrix switcher enclosure built for XTP II Systems installations.

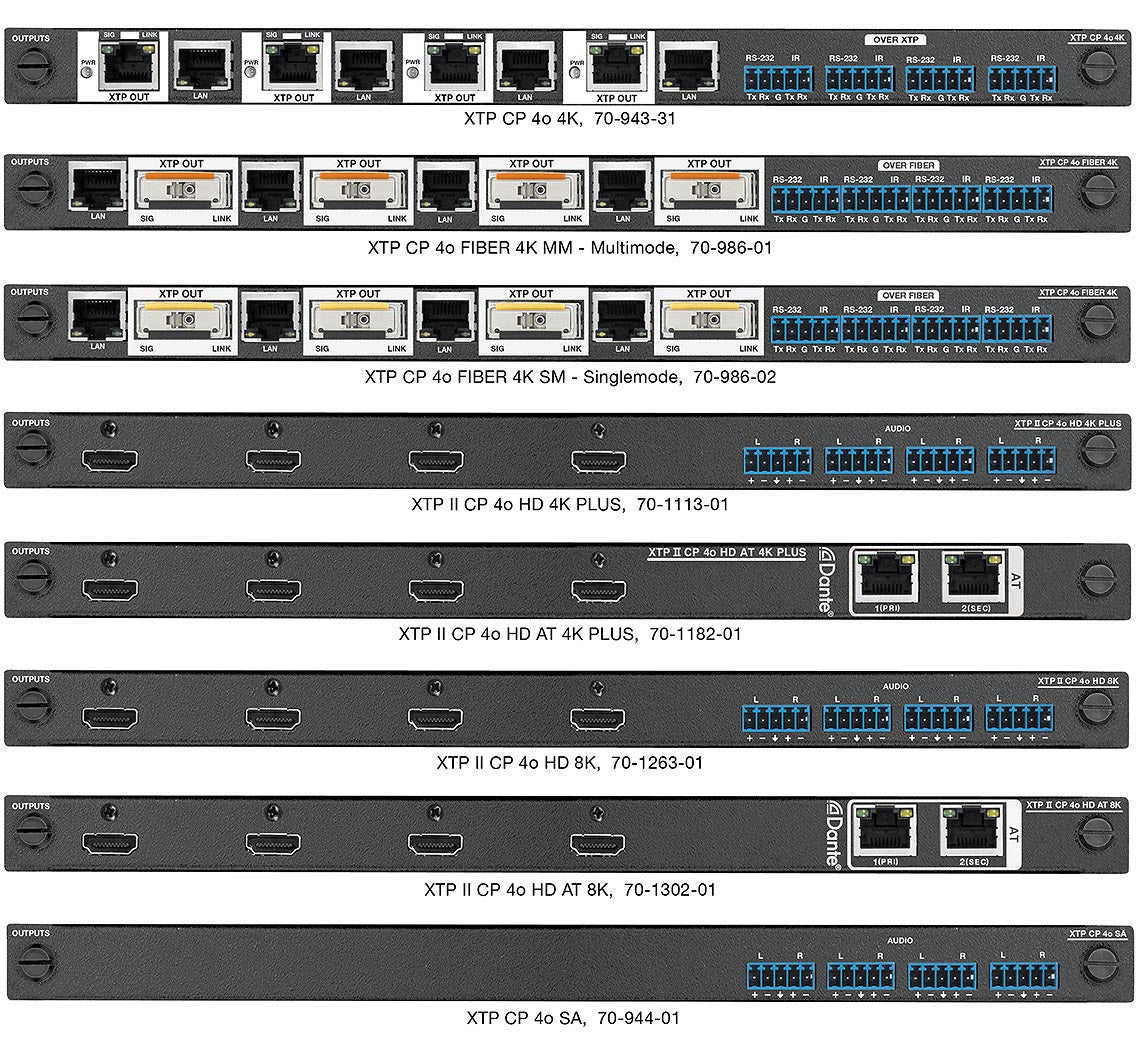

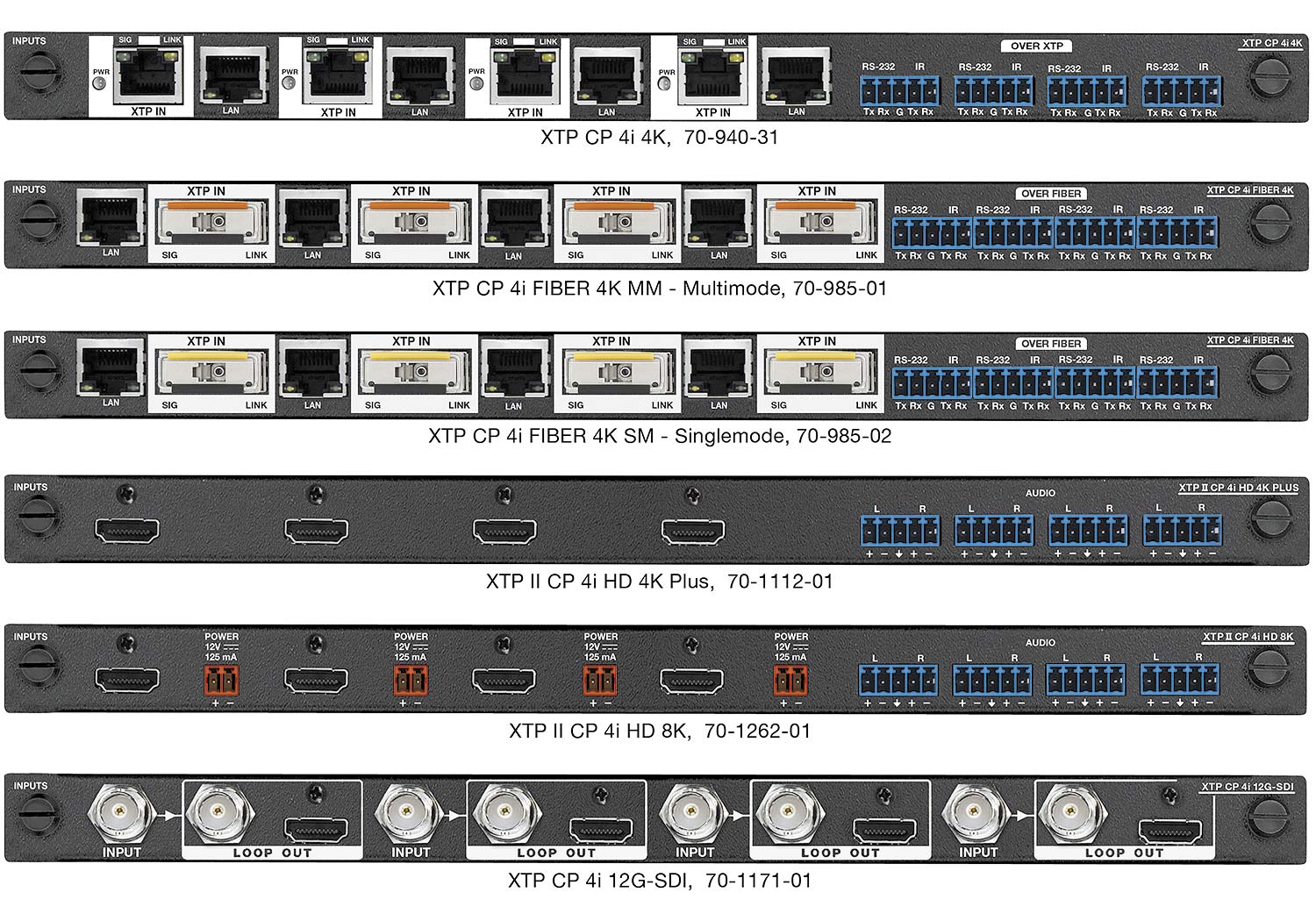

This 5U, full-rack-wide frame provides four input and four output card slots, so integrators can combine HDMI, HD 8K, fiber, and XTP twisted-pair boards to build a matrix scaled up to 16x16. Every slot connects to a 50 Gbps backplane for video, audio, and control, while built-in Ethernet, RS-232/RS-422, and USB ports give it direct third-party control system integration.

Key Capabilities

  • Configurable 16x16 digital matrix with 4 input and 4 output card slots
  • 50 Gbps backplane throughput per input and output supports 8K formats
  • Supports up to 28 XTP twisted-pair endpoints with remote power
  • Ethernet, RS-232/RS-422, and USB control ports for full system integration
  • Redundant power supply keeps the matrix running through a PSU failure
  • 5U rack-mount metal enclosure at 8.75 x 17.0 x 17.5 in
  • Backed by Extron's 3-year parts-and-labor warranty

Where It Is Used

This CrossPoint 1600 frame is suited to mid-size AV distribution systems — corporate campuses, university lecture halls, broadcast control rooms — anywhere a mix of HDMI, 8K, and fiber sources and displays need to pass through one flexible, card-based matrix.

Specifications at a Glance

  • 16x16 matrix, 4 input / 4 output card slots
  • Backplane throughput: 50 Gbps per input and output
  • 5U rack-mount metal enclosure, 8.75" H x 17.0" W x 17.5" D
  • Power consumption: 45 to 875 watts depending on configuration
  • 3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICrossPoint1600, XTP-II-CrossPoint-1600, part number 60203101.
