Details

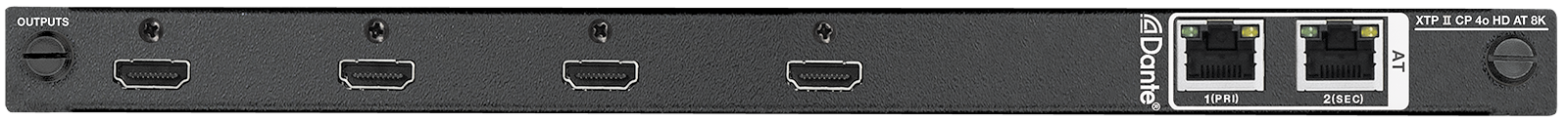

Extron XTP II CP 4o HD AT 8K (part number 70-1302-01) — a 4-output HDMI 2.1 board with Dante audio transport for XTP II CrossPoint 8K matrix switching.

This card plugs into an XTP II CrossPoint frame and drives four HDMI 2.1 outputs at up to true 8K/60 while a pair of RJ-45 AT ports pushes the same program audio onto a Dante/AES-67 network as up to eight discrete channels. An integrator can send video to an 8K display over HDMI and simultaneously feed a Dante-based DSP or amplifier from the identical source, without a separate audio breakout card.

Key Capabilities

Four HDMI 2.1 outputs deliver true 8K (7680x4320) at 60 Hz to displays
Dual RJ-45 AT ports transmit up to 8 channels of Dante/AES-67 audio
Dante audio runs uncompressed at 24-bit/48 kHz with selectable latency
Automatic re-clocking cleans up the signal before it reaches the display
Outputs 4 analog stereo channels with ±0.1 dB channel-to-channel gain error

Where It Is Used

4o HD AT 8K output boards fit XTP II CrossPoint systems already running a Dante audio network — houses of worship, performing arts venues, large conference centers — feeding native 8K HDMI displays while audio joins the building's Dante infrastructure from the same card.

Specifications at a Glance

4 HDMI 2.1 outputs, up to 8K/60
Dante/AES-67: up to 8 channels, 24-bit/48 kHz
Selectable latency: 0.25 ms to 5.0 ms
Power consumption: 15 watts
3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICP4oHDAT8K, XTP-II-CP-4o-HD-AT-8K, part number 70130201.

Specifications

Part Number: 70-1302-01

Manufacturer: Extron

Model: XTP II CP 4o HD AT 8K

Condition: New

Video Output - Number/Signal Type: 4 HDMI 2.1 links

Video Output - Connectors: 4 female HDMI Type A

Video Output - Signal Type: Single-link HDMI (or DVI-D)

Video Output - Resolution Range: Up to 8K (7680x4320) @ 60 Hz, 5K (5120x2880) @ 60 Hz, 4K (4096x2160) @ 60 Hz, 4K (3840x2160) @ 120 Hz, UHD (3840x2160) @ 60 Hz; uncompressed 8K/30 at 4:4:4 requires installation in an XTP II CrossPoint frame

Video Output - Gain: Unity

Video Output - Maximum Data Rate: 40.1 Gbps

Video Output - Maximum Pixel Clock: 2376 MHz

Video Output - Digital Video: RGB digital video or Y, Cr, Cb digital component video (HDMI), actively buffered; supports single-link DVI (with optional adapter) and HDMI from 640x480 @ 60 Hz to 7680x4320 @ 60 Hz

Video Output - EDID and DDC: Supports EDID and DDC data using DVI and HDMI standards; signals actively buffered

Video Output - HDCP: Compliant with HDCP using DVI and HDMI standards

Video Output - HPD: Supports hot plug detection (HPD) of display as a pass-through signal

Video Output - HDR: HDR10, HDR10+, and Dolby Vision

Video Output - Standards: DVI 1.0, HDMI 2.1, HDCP 2.3

Video Output - Video Format: HDMI and DVI

Video Output - Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Video Output - Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Video Output - Color Bit Depth: 8, 10, or 12 bits per color

Video Output - Re-Clocking: Automatic

Video Output - Peripheral Device Power: 5 VDC, 250 mA per output

Audio Output - Number/Signal Type: 4 analog stereo, balanced/unbalanced, or 4 digital audio embedded with HDMI

Audio Output - Connectors: 4 x 3.5 mm captive screw connector (5-pole); 4 female HDMI Type A (shared with video output)

Audio Output - Supported Formats (HDMI, Pass-Through): LPCM up to 7.1/24-bit/192 kHz, Dolby Digital EX, Dolby Digital Plus, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS-X, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS-Digital Surround 5.1, DTS 2-Channel

Audio Output - Supported Formats (Analog): Analog stereo

Audio Output - Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output - Gain Error: ±0.1 dB channel to channel

Audio Output - Maximum Level (Hi-Z): >+21 dBu, balanced or unbalanced at 1% THD+N

Audio Output - Maximum Level (600 ohm): >+20 dBm, balanced or unbalanced at 1% THD+N

Audio Output - Volume Control Range: -64 dB to 0 dB (volume numbers 0 through 64) in 1 dB increments from steps 0 to 64; default = 64 (0 dB)

AT Ports (Audio Transport) - Transmission Type: Dante/AES-67, software selectable

AT Ports (Audio Transport) - Connectors: 2 RJ-45 to Dante interface

AT Ports (Audio Transport) - Outputs: Up to 8 channels (4 stereo channels)

AT Ports (Audio Transport) - Audio Format: Uncompressed, 24-bit, 48 kHz

AT Ports (Audio Transport) - Latency: Deterministic, based on user selection: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms

General - Power: Supplied by XTP CrossPoint or XTP II CrossPoint enclosure

General - Power Consumption: 15 watts

General - Product Weight: 2.10 lbs (0.95 kg)

Regulatory Compliance: UL, FCC Class A; complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor
