Extron XTP II CP 4o HD AT 4K PLUS Dante Output Board
- • Four HDMI outputs deliver single-link HDMI or DVI-D signals up to 4K/60 4:4:4
- • Dual RJ-45 AT ports transmit up to 8 channels of Dante/AES-67 audio
- • Dante audio runs uncompressed at 24-bit/48 kHz with selectable latency
- • Delivers 5 VDC at 250 mA per output for connected peripheral devices
- • Outputs 4 analog stereo channels with ±0.1 dB channel-to-channel gain error
- • Draws just 14 watts, powered directly from the XTP II CrossPoint frame
- • Backed by Extron's 3-year parts-and-labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

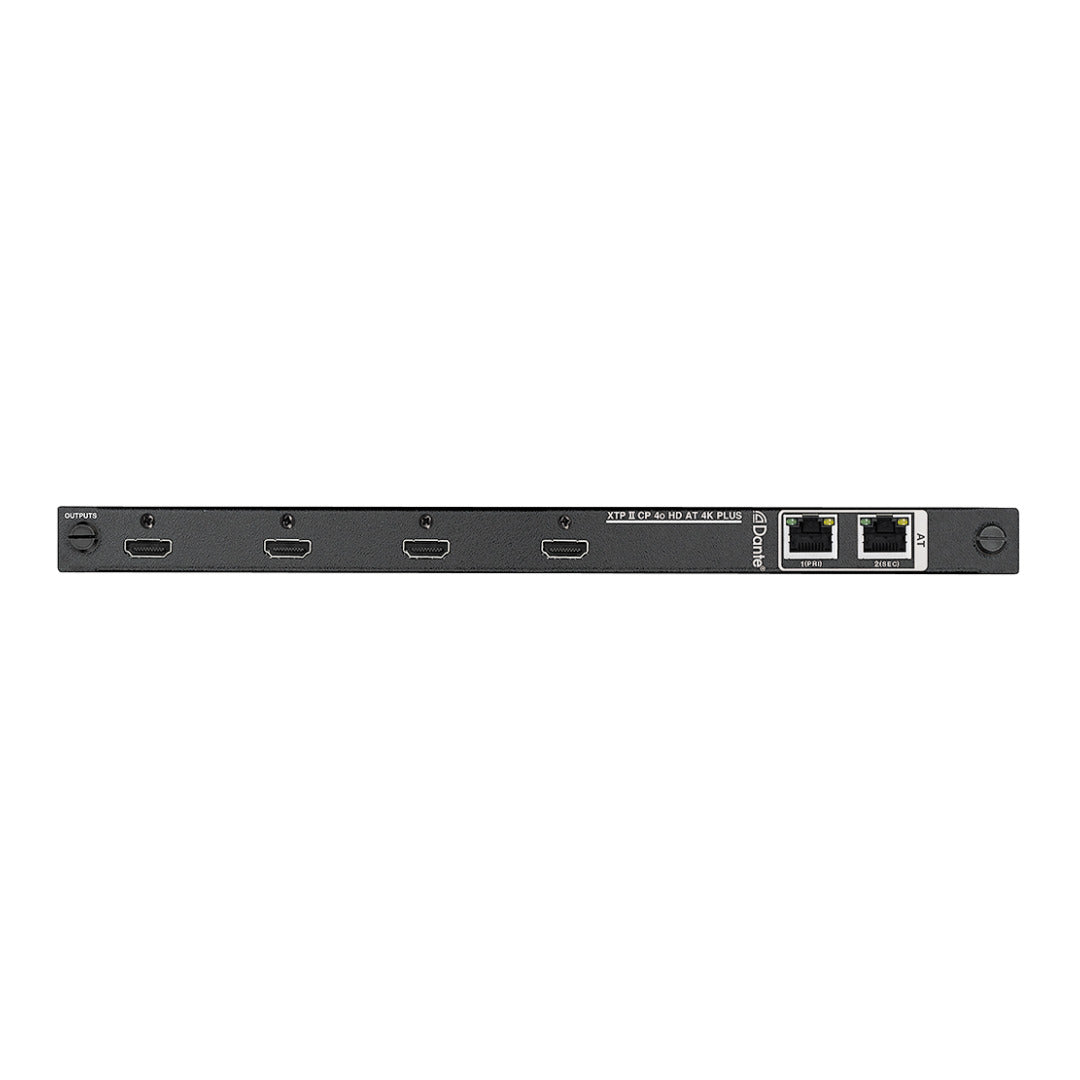

Extron XTP II CP 4o HD AT 4K PLUS (part number 70-1182-01) — a 4-output HDMI board with Dante audio transport for XTP II CrossPoint 4K matrix switching.
This card plugs into an XTP II CrossPoint frame and drives four HDMI or DVI-D outputs while a pair of RJ-45 AT ports pushes the same program audio onto a Dante/AES-67 network as up to eight discrete channels. An integrator can route video to a display over HDMI and simultaneously feed a Dante-based DSP or amplifier from the identical source, without a separate audio breakout. Automatic re-clocking and hot plug detect keep the video path as clean as a direct HDMI run.
Key Capabilities
- Four HDMI outputs deliver single-link HDMI or DVI-D signals up to 4K/60 4:4:4
- Dual RJ-45 AT ports transmit up to 8 channels of Dante/AES-67 audio
- Dante audio runs uncompressed at 24-bit/48 kHz with selectable latency
- Delivers 5 VDC at 250 mA per output for connected peripheral devices
- Outputs 4 analog stereo channels with ±0.1 dB channel-to-channel gain error
Where It Is Used
4o HD AT 4K PLUS output boards fit XTP II CrossPoint systems that already run a Dante audio network — houses of worship, performing arts venues, large conference centers — where video stays on HDMI while audio joins the building's Dante infrastructure from the same card.
Specifications at a Glance
- 4 HDMI/DVI-D outputs, 4:4:4 up to 4K/60
- Dante/AES-67: up to 8 channels, 24-bit/48 kHz
- Selectable latency: 0.25 ms to 5.0 ms
- Power consumption: 14 watts
- 3-year Extron parts-and-labor warranty
Also referenced as Extron XTPIICP4oHDAT4KPLUS, XTP-II-CP-4o-HD-AT-4K-PLUS, part number 70118201.
