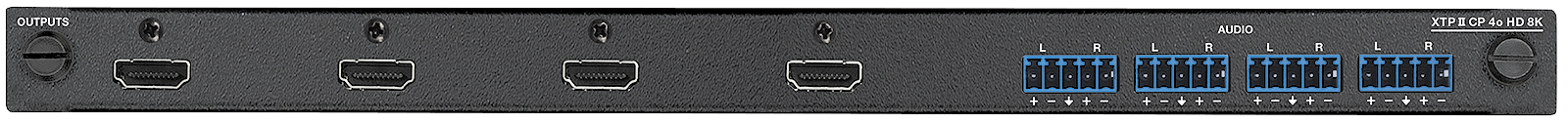

Extron XTP II CP 4o HD 8K 70-1263-01

Extron XTP II CP 4o HD 8K 4-Output HDMI I/O Board 70-1263-01

Extron XTP II CP 4o HD 8K 4-Output HDMI I/O Board 70-1263-01

Manufacturer: Extron

Type: XTP Systems

Extron XTP II CP 4o HD 8K HDMI Output Board

  • • Four HDMI 2.1 outputs deliver true 8K (7680x4320) at 60 Hz to displays
  • • Automatic re-clocking cleans up the signal before it reaches the display
  • • Delivers 5 VDC at 250 mA per output for connected peripheral devices
  • • Embeds Dolby Atmos, DTS-X, and other HD audio formats into HDMI
  • • Outputs 4 analog stereo channels with ±0.1 dB channel-to-channel gain error
  • • Draws just 14 watts, powered directly from the XTP II CrossPoint frame
  • • Backed by Extron's 3-year parts-and-labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XTPIICP4OHD8K-70126301

Details

Extron XTP II CP 4o HD 8K (part number 70-1263-01) — a 4-output HDMI 2.1 board for XTP II CrossPoint 8K matrix switching.

This card plugs into an XTP II CrossPoint frame and drives four HDMI 2.1 outputs at up to true 8K/60, re-clocking automatically so long display runs stay clean. Each output also carries analog or embedded digital audio with independent volume control, and a 5-volt peripheral feed can power a connected extender or receiver at the display end. Hot plug detect passes display status back through the system exactly as a direct HDMI connection would.

Key Capabilities

  • Four HDMI 2.1 outputs deliver true 8K (7680x4320) at 60 Hz to displays
  • Automatic re-clocking cleans up the signal before it reaches the display
  • Delivers 5 VDC at 250 mA per output for connected peripheral devices
  • Embeds Dolby Atmos, DTS-X, and other HD audio formats into HDMI
  • Outputs 4 analog stereo channels with ±0.1 dB channel-to-channel gain error

Where It Is Used

4o HD 8K output boards fit XTP II CrossPoint systems feeding native 8K or high-frame-rate 4K HDMI displays — medical imaging suites, production control rooms, digital signage command centers — wherever full HDMI 2.1 bandwidth is needed at the display end.

Specifications at a Glance

  • 4 HDMI 2.1 outputs, up to 8K/60
  • Max video data rate: 40.1 Gbps
  • Peripheral power: 5 VDC, 250 mA per output
  • Power consumption: 14 watts
  • 3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICP4oHD8K, XTP-II-CP-4o-HD-8K, part number 70126301.
