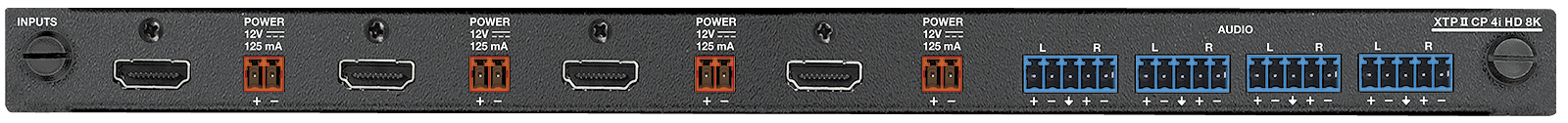

Extron XTP II CP 4i HD 8K 70-1262-01

Extron XTP II CP 4i HD 8K 4-Input HDMI I/O Board 70-1262-01

Extron XTP II CP 4i HD 8K 4-Input HDMI I/O Board 70-1262-01

Manufacturer: Extron

Type: XTP Systems

Extron XTP II CP 4i HD 8K HDMI Input Board

  • • Four HDMI 2.1 inputs support true 8K (7680x4320) at 60 Hz over the matrix
  • • Delivers 12 VDC at 125 mA per input for connected peripheral devices
  • • Passes Dolby Atmos, DTS-X, and other HD audio formats embedded in HDMI
  • • Accepts 4 analog stereo audio inputs with -18 to +18 dB gain adjustment
  • • Supports HDR10, HDR10+, and Dolby Vision pass-through
  • • Draws 20 watts, powered directly from the XTP II CrossPoint frame
  • • Backed by Extron's 3-year parts-and-labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XTPIICP4IHD8K-70126201

Details

Extron XTP II CP 4i HD 8K (part number 70-1262-01) — a 4-input HDMI 2.1 board for XTP II CrossPoint 8K matrix switching.

This card plugs into an XTP II CrossPoint frame and accepts four HDMI 2.1 sources at up to true 8K/60, buffering EDID and HDCP 2.3 so displays and sources negotiate normally through the matrix. A dedicated 12-volt peripheral power feed on each input can run a connected camera or extender, while independent analog and digital audio inputs keep sources leveled separately with per-channel gain trim.

Key Capabilities

  • Four HDMI 2.1 inputs support true 8K (7680x4320) at 60 Hz over the matrix
  • Delivers 12 VDC at 125 mA per input for connected peripheral devices
  • Passes Dolby Atmos, DTS-X, and other HD audio formats embedded in HDMI
  • Accepts 4 analog stereo audio inputs with -18 to +18 dB gain adjustment
  • Supports HDR10, HDR10+, and Dolby Vision pass-through

Where It Is Used

4i HD 8K input boards fit XTP II CrossPoint deployments handling native 8K and high-frame-rate 4K HDMI sources — medical imaging suites, production control rooms, digital signage command centers — where full HDMI 2.1 bandwidth matters.

Specifications at a Glance

  • 4 HDMI 2.1 inputs, up to 8K/60
  • Max video data rate: 40.1 Gbps
  • Peripheral power: 12 VDC, 125 mA per input
  • Power consumption: 20 watts
  • 3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICP4iHD8K, XTP-II-CP-4i-HD-8K, part number 70126201.
