Extron XTP II CP 4i HD 4K PLUS 4-Input HDMI I/O Board 70-1112-01

Extron XTP II CP 4i HD 4K PLUS 4-Input HDMI I/O Board 70-1112-01

Manufacturer: Extron

Type: XTP Systems

Extron XTP II CP 4i HD 4K PLUS HDMI Input Board

  • • Four HDMI inputs accept single-link HDMI or DVI-D sources up to 4K/60 4:4:4
  • • Drives cable runs up to 25 ft (7.6 m) at 4K 4:4:4 8-bit before the switch
  • • Passes Dolby Atmos, DTS-X, and other HD audio formats embedded in HDMI
  • • Accepts 4 analog stereo audio inputs with -18 to +18 dB gain adjustment
  • • Supports HDR10, HDR10+, and Dolby Vision pass-through
  • • Draws 18 watts, powered directly from the XTP II CrossPoint frame
  • • Backed by Extron's 3-year parts-and-labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-XTPIICP4IHD4KPLUS-70111201

Details

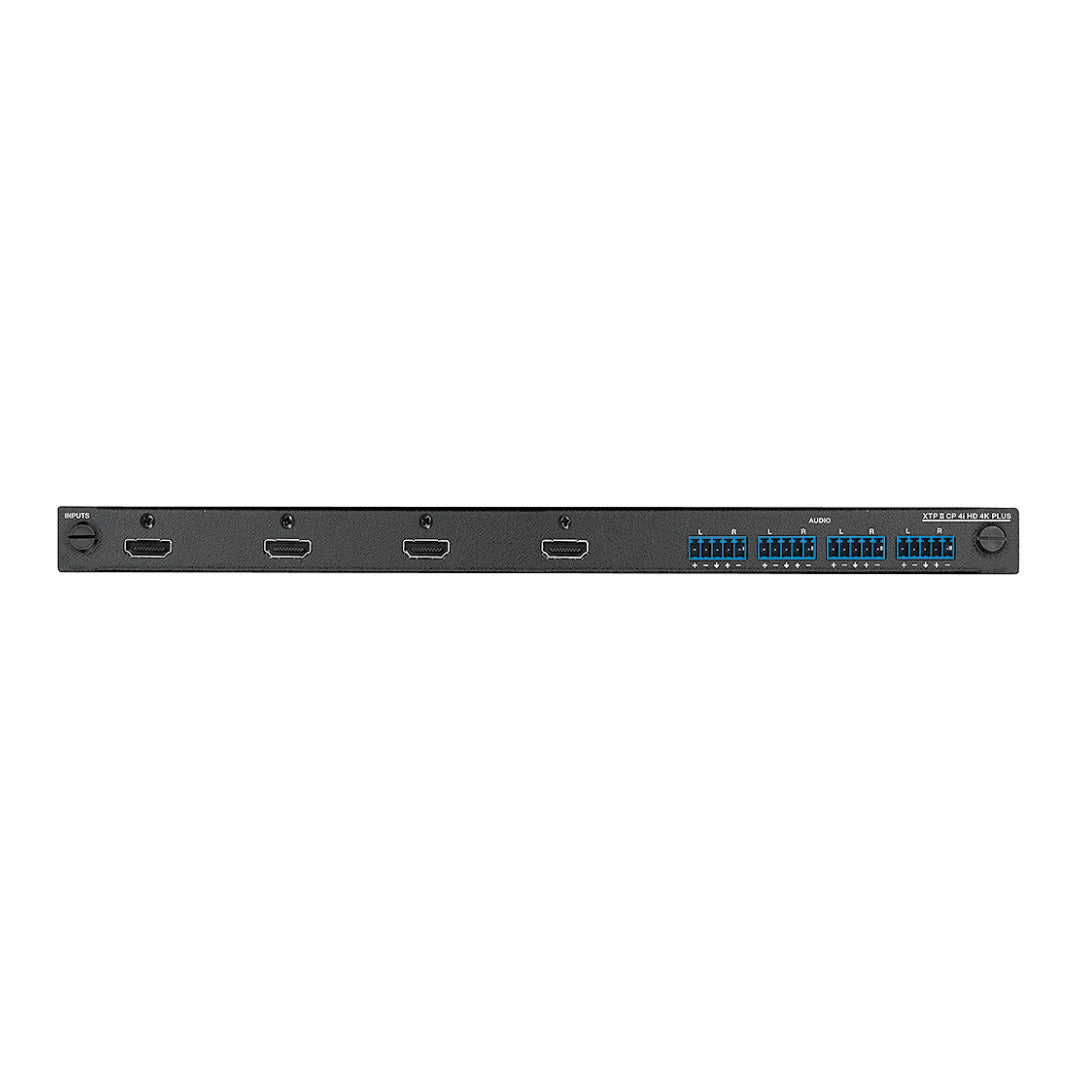

Extron XTP II CP 4i HD 4K PLUS (part number 70-1112-01) — a 4-input HDMI board for XTP II CrossPoint 4K matrix switching.

This card plugs into an XTP II CrossPoint frame and accepts four HDMI or DVI-D sources, buffering EDID and HDCP so displays and sources negotiate normally through the matrix. Each input also carries analog or embedded digital audio with independent gain trim, so a boardroom camera feed and a laptop's HDMI audio can be leveled separately before they ever reach the switch. Automatic cable equalization keeps runs up to 25 feet stable at full 4K 4:4:4.

Key Capabilities

  • Four HDMI inputs accept single-link HDMI or DVI-D sources up to 4K/60 4:4:4
  • Drives cable runs up to 25 ft (7.6 m) at 4K 4:4:4 8-bit before the switch
  • Passes Dolby Atmos, DTS-X, and other HD audio formats embedded in HDMI
  • Accepts 4 analog stereo audio inputs with -18 to +18 dB gain adjustment
  • Supports HDR10, HDR10+, and Dolby Vision pass-through

Where It Is Used

4i HD 4K PLUS input boards fit XTP II CrossPoint deployments handling standard HDMI sources — laptops, conferencing codecs, cable boxes — in boardrooms, classrooms, and control rooms where 4K/60 4:4:4 and independent per-input audio trim matter.

Specifications at a Glance

  • 4 HDMI/DVI-D inputs, 4:4:4 up to 4K/60
  • Max video data rate: 18 Gbps (6 Gbps per color)
  • Input cable length: up to 25 ft at 4K 4:4:4 8-bit
  • Power consumption: 18 watts
  • 3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICP4iHD4KPLUS, XTP-II-CP-4i-HD-4K-PLUS, part number 70111201.
