Details

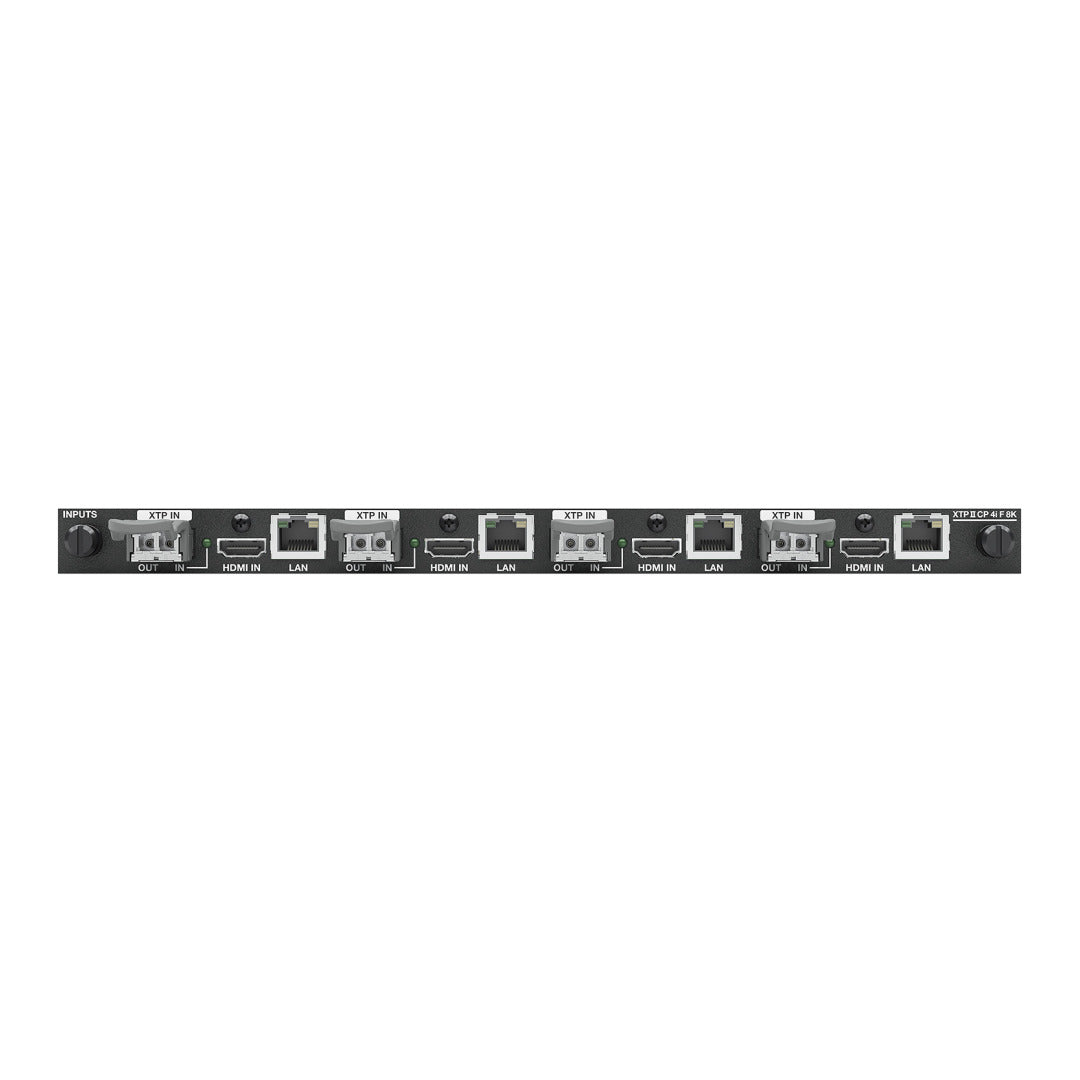

Extron XTP II CP 4i F 8K MM (part number 70-1114-01) — a 4-input multimode fiber board for XTP II CrossPoint 8K matrix switching.

This board plugs into an XTP II CrossPoint frame and accepts four sources on HDMI/DVI-D connectors or over XTP fiber, selectable per input. Video, embedded audio, RS-232, and Ethernet all travel together across a pair of multimode fiber links to the frame, letting an integrator place true 8K sources hundreds of meters from the switcher without a separate control-wiring run. HDCP 2.3, HDR10, HDR10+, and Dolby Vision pass through intact for demanding production and command-room sources.

Key Capabilities

Four inputs switch between HDMI/DVI-D or XTP fiber, selectable per port
Supports 8K (7680x4320) at 60 Hz and 4K at up to 120 Hz over HDMI 2.1
Two multimode fiber runs reach 400 m (1312 ft) on OM4 cable at 40 Gbps
De-embeds up to 7.1-channel digital audio, including Dolby Atmos and DTS-X
Passes RS-232 to XTP transmitters and 1 Gbps Ethernet over 4 RJ-45 ports

Where It Is Used

4i F 8K MM input boards fit XTP II CrossPoint deployments where 8K or high-frame-rate 4K sources — production control rooms, medical imaging suites, command centers — sit a building or more away from the matrix frame and need fiber's distance and noise immunity.

Specifications at a Glance

4 HDMI/XTP-selectable inputs, 8 LC fiber connectors
Max video data rate: 40.1 Gbps (10 Gbps per color)
Multimode reach: 400 m (1312 ft) on OM4 fiber
Power consumption: 40 watts
3-year Extron parts-and-labor warranty

Also referenced as Extron XTPIICP4iF8KMM, XTP-II-CP-4i-F-8K-MM, part number 70111401.

Specifications

Part Number: 70-1114-01

Manufacturer: Extron

Model: XTP II CP 4i F 8K MM

Condition: New

Video Input - Number/Signal Type: 4 single-link HDMI (or DVI-D) or XTP (selectable)

Video Input - Connectors: 4 female HDMI Type A, 8 LC fiber connectors

Video Input - Resolution Range: Up to 8K (7680x4320) @ 60 Hz, 5K (5120x2880) @ 60 Hz, 4K (4096x2160) @ 60 Hz, 4K (3840x2160) @ 120 Hz, 4K (3840x2160) @ 60 Hz (uncompressed 8K/30 at 4:4:4 requires installation in an XTP II CrossPoint frame)

Video Input - Signal Type: HDMI 2.1, HDCP 2.3

Video Input - Maximum Data Rate: 40.1 Gbps (10 Gbps per color)

Video Input - Maximum Pixel Clock: 2376 MHz

Video Input - Color Bit Depth: 8, 10, or 12 bits per color, subject to the maximum data rate limit

Video Input - Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Video Input - Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Video Input - Video Formats: HDMI and DVI

Video Input - Gain: Unity

Video Input - Equalization: Automatic

Video Input - Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 40.1 Gbps

Video Input - Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 40.1 Gbps

Video Input - EDID and DDC: Supports EDID and DDC data using DVI and HDMI standards. EDID and DDC signals are actively buffered.

Video Input - HDCP: Compliant with HDCP using DVI and HDMI standards

Video Input - HDR: HDR10, HDR10+, and Dolby Vision

Video Input - Standards: DVI 1.0; HDMI 2.1; HDCP 1.x, HDCP 2.3

Audio Input - Number/Signal Type: 4 digital audio, de-embedded from HDMI

Audio Input - Connectors: 4 female HDMI Type A (shared with video input)

Audio Input - Supported Formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Digital EX, Dolby Digital Plus, Dolby Digital 5.1, Dolby Digital 2.0 Surround, Dolby Digital 2.0, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS-X, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS-Digital Surround 5.1, DTS 2-Channel

Optical - Number/Signal Type: 4 sets of proprietary signals

Optical - Connectors: 8 LC connectors

Optical - Operating Distance (Multimode): 300 m (980') with 50 µm OM3 2000 MHz bandwidth laser optimized multimode cable; 400 m (1312') with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cable (must use OM3/OM4 cable, not compatible with OM1/OM2 cable)

Optical - Nominal Peak Wavelength (Multimode): 850 nm, 880 nm, 910 nm, 940 nm

Optical - Data Rate: 40 Gbps

Optical - Transmission Power (Multimode): -5.5 dBm, maximum

Optical - Maximum Receiver Sensitivity (Multimode): -9.1 dBm, maximum

Optical - Optical Loss Budget (Multimode): 3.6 dB, maximum

Control - Serial Control: RS-232 can be transmitted to and from XTP Tx via Ethernet insertion

Control - Baud Rate: Up to 115200 baud

Control - Protocol: Data bits = 5-8; Stop bits = 1 or 2; Parity = odd, even, none; Flow Control = XON, XOFF, none

Control - Ethernet Pass-Through Port: 4 female RJ-45 connectors

Control - Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with auto-detect

General - Power: Supplied by XTP CrossPoint or XTP II CrossPoint enclosure

General - Power Consumption: 40 watts

General - Product Weight: 2.90 lbs (1.31 kg)

Regulatory Compliance: UL, FCC Class A; complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | XTP II CP 4i F 8K MM 70-1114-01 | XTP II Systems (xtp_II_systems_revG6.pdf)

Brochure | XTP II CP 4i F 8K MM 70-1114-01 | XTP II Systems (xtp_II_systems_revG6_FR.pdf)

Brochure | XTP II CP 4i F 8K MM 70-1114-01 | XTP Systems - Serie XTP II CrossPoint

Brochure | XTP II CP 4i F 8K MM 70-1114-01 | XTP Systems - XTP II CrossPoint-Serie

Manual | XTP II CP 4i F 8K MM 70-1114-01 | XTP II CrossPoint Series User Guide

Specifications | XTP II CP 4i F 8K MM 70-1114-01 | XTP II CP Fiber 8K Boards

Panel Drawing | XTP II CP 4i F 8K MM 70-1114-01 | XTP II CP Fiber 8K I/O Boards
