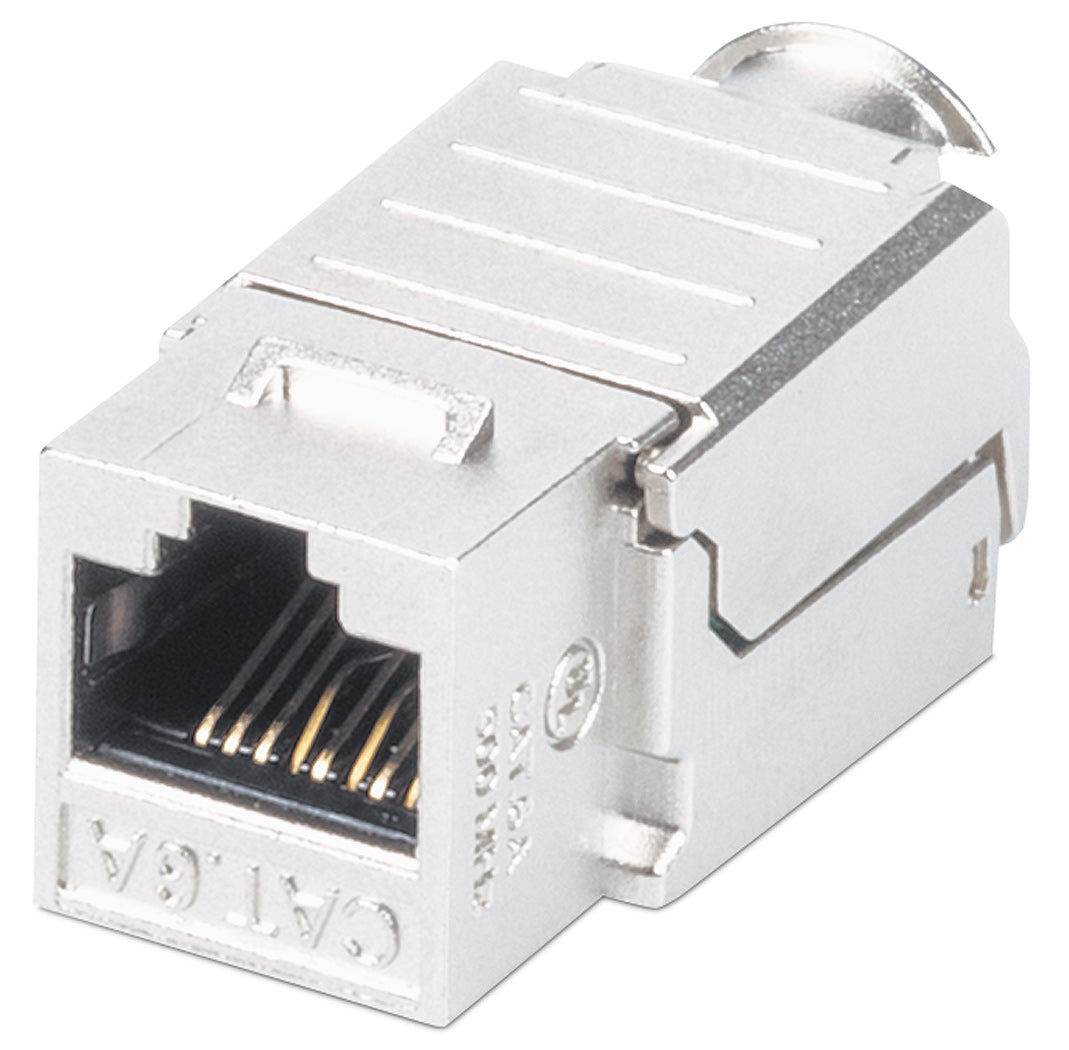

Extron XTP DTP Jack (part number 101-038-01) — a package of ten fully shielded Category 6A RJ-45 keystone punch down jacks for Extron XTP DTP shielded twisted pair cable.

This is the wall-end half of an XTP or DTP link. The jack accepts either XTP DTP 22 or XTP DTP 24 cable and is terminated with a punch down tool rather than a crimp, which is why Extron supplies a connector stand holder to hold the body steady while the conductors are seated. The shell is fully shielded and carries metal strain relief with ground bonding, so the cable's shield stays continuous through the termination instead of stopping at the faceplate. Keystone geometry drops it into wallplates, AAP AV Connectivity Modules and similar frames.

Key Capabilities

• Works with both Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair cable.
• High-performance Category 6A RJ-45 keystone jack.
• Fully shielded, with metal strain relief and ground bonding.

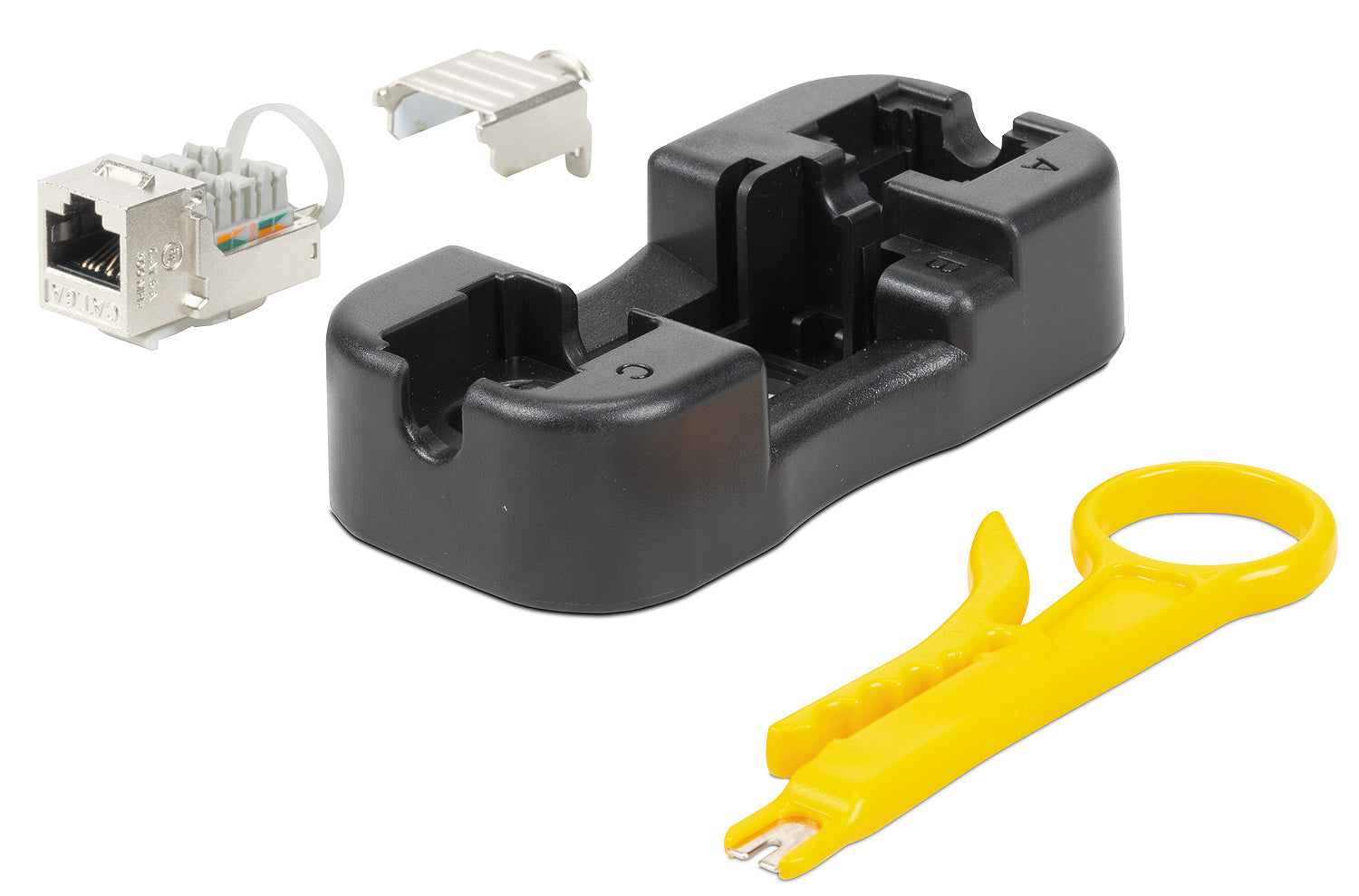

• Punch down termination; a connector stand holder secures the jack during assembly.
• Keystone snap-in design for wallplates, AAP AV Connectivity Modules and similar mounting frames.
• Gold-plated contacts; wires to TIA/EIA 568A or 568B.
• Supplied ten jacks to a package.

Where It Is Used

Room-side terminations across structured AV: decorator wallplates behind displays, AAP faceplates at lecterns and conference tables, floor boxes, patient-room and operating-suite plates, and rack-side punch panels where XTP or DTP cable lands on a fixed connector.

Specifications at a Glance

• Category 6A shielded RJ-45 keystone punch down jack, gold-plated contacts
• Cable compatibility: Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair
• Wiring standards: TIA/EIA 568A and 568B
• Package quantity: 10 jacks

Also referenced as Extron XTPDTPJack, XTP-DTP-Jack, part number 10103801.
