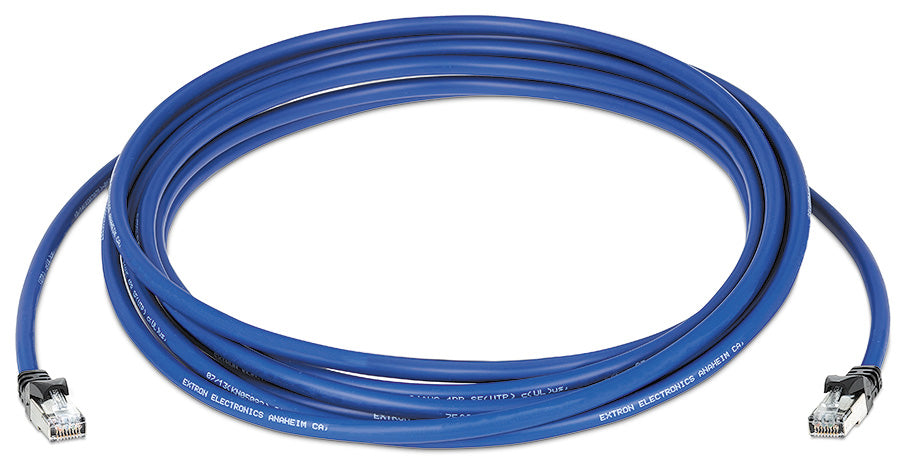

Extron XTP DTP 24P/9 (part number 26-695-09) — a 9 ft plenum shielded twisted pair jumper for Extron XTP Systems and DTP Systems.

Nine feet is the length that bridges a rack to a nearby wall plate, or one shelf of equipment to another across a credenza. Hand-crimping shielded RJ-45 plugs for a run this short is rarely worth the labour, and a poorly drained shield on a short jumper can undo the noise immunity of the whole link. This assembly ships already terminated on both ends with Extron XTP DTP 24 plugs over molded strain relief.

Key Capabilities

• Built from XTP DTP 24 bulk stock certified to 475 MHz over 330 ft (100 m)
• SF/UTP build — four 24 AWG solid bare copper twisted pairs
• Aluminum/Mylar foil under a 55% tinned copper braid for double screening
• Exceeds the HDMI pixel error limit — under one error per billion pixels at 100 m
• Extron XTP DTP 24 plugs installed at the factory, with molded strain relief
• Independently verified against HDBaseT Alliance performance requirements

Where It Is Used

Typical placements include lectern-to-wall-plate hops in classrooms, transmitter-to-patch-panel links in equipment racks, and short interconnects between an XTP matrix and a nearby endpoint in control rooms, medical imaging suites and divisible meeting spaces.

Specifications at a Glance

• Length: 9' (2.7 m)
• Bandwidth: 475 MHz certified to 330' (100 m)
• Construction: 4 twisted pairs, 24 AWG solid bare copper, 100 ohm nominal impedance
• Jacket: blue fire-resistant PVC, NEC 800 CMP / UL 910, 75 °C
• Extron lists part 26-695-09 as retired

Also referenced as Extron XTPDTP24P9, XTP-DTP-24P-9, part number 2669509.
