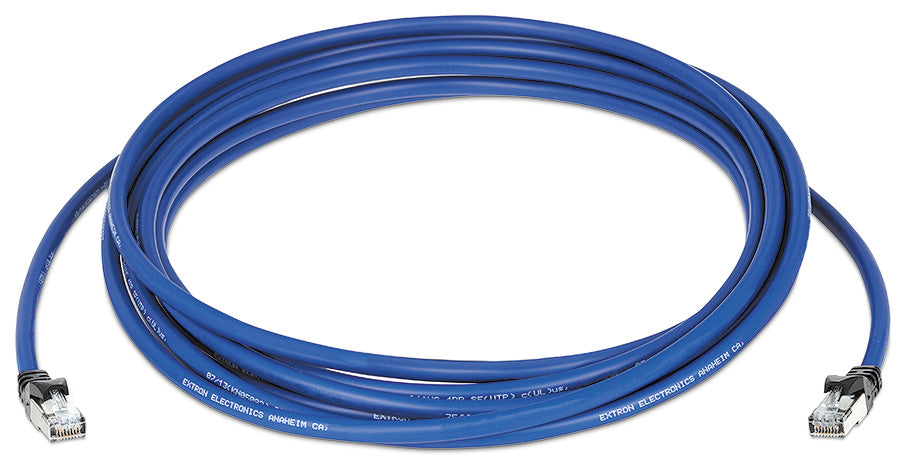

Extron XTP DTP 24P/75 (part number 26-695-75) — a 75 ft plenum shielded twisted pair assembly for Extron XTP Systems and DTP Systems.

At three-quarters of a hundred feet, an AV twisted pair link is usually crossing a ceiling void full of lighting ballasts, HVAC motors and building data cable. This assembly is built for that environment: a braid-and-foil screen wraps all four pairs, the jacket carries a CMP plenum rating, and both ends leave the factory already terminated with Extron plugs and molded strain relief, so nobody has to crimp a connector overhead.

Key Capabilities

• Bandwidth certified to 475 MHz on runs reaching 330 ft (100 m)
• SF/UTP build — four 24 AWG solid bare copper twisted pairs
• Aluminum/Mylar foil under a 55% tinned copper braid for double screening
• Exceeds the HDMI pixel error limit — under one error per billion pixels at 100 m
• Extron XTP DTP 24 plugs installed at the factory, with molded strain relief
• Independently verified against HDBaseT Alliance performance requirements

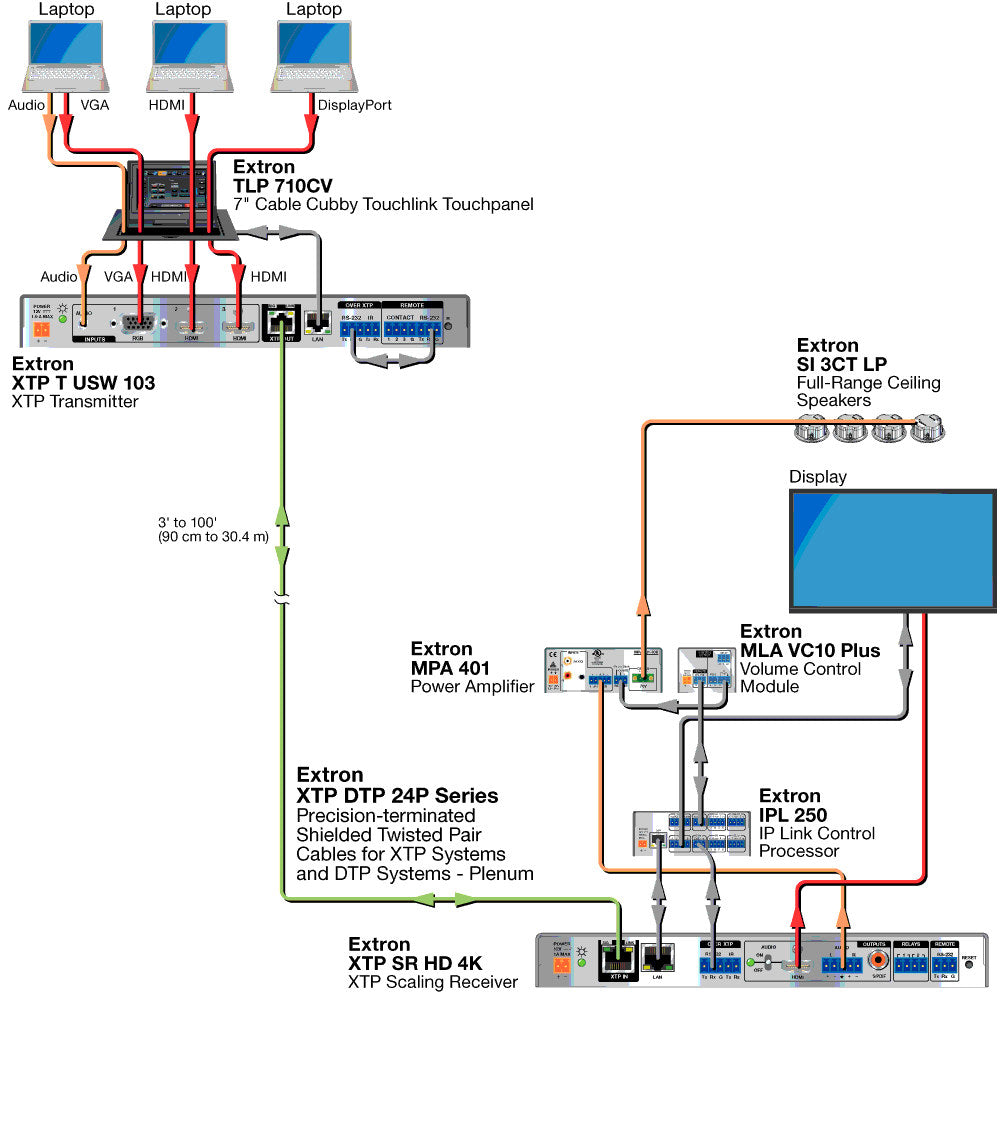

Where It Is Used

Seventy-five feet handles rack-to-projector runs in auditoriums and lecture theatres, floor-to-floor risers in multi-level offices, and equipment-room-to-display links in command centres and hospital imaging suites. The CMP jacket makes it legal to route the cable through plenum ceiling spaces without additional conduit.

Specifications at a Glance

• Length: 75' (22.8 m)
• Bandwidth: 475 MHz certified to 330' (100 m)
• Construction: 4 twisted pairs, 24 AWG solid bare copper, 100 ohm nominal impedance
• Jacket: blue fire-resistant PVC, NEC 800 CMP / UL 910, 75 °C
• Shipping carton: 2.0 x 11.5 x 12.5 in (5.1 x 29.2 x 31.8 cm), 2.94 lbs (1.33 kg)

Also referenced as Extron XTPDTP24P75, XTP-DTP-24P-75, part number 2669575.
