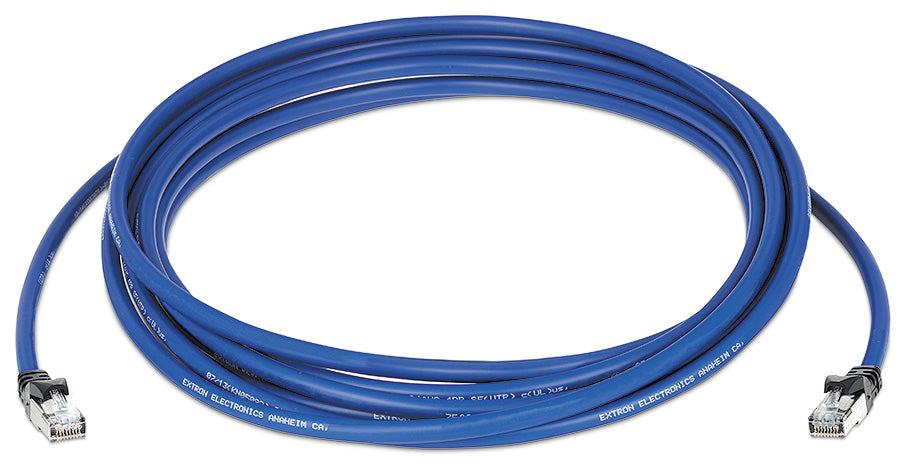

Extron XTP DTP 24P/6 (part number 26-695-06) — a short 6 ft plenum shielded twisted pair jumper for Extron XTP Systems and DTP Systems.

Short twisted pair jumpers do the unglamorous work inside a rack: transmitter to patch panel, wall plate to endpoint, coupler to matrix card. Buying them pre-made saves an installer from crimping two connectors for a two-metre run, and it keeps the assembly identical in construction to the long cable pulls elsewhere in the same system. Extron fits both ends with XTP DTP 24 plugs and molded strain relief at the factory.

Key Capabilities

• Built from XTP DTP 24 bulk stock certified to 475 MHz over 330 ft (100 m)
• SF/UTP build — four 24 AWG solid bare copper twisted pairs
• Aluminum/Mylar foil under a 55% tinned copper braid for double screening
• Exceeds the HDMI pixel error limit — under one error per billion pixels at 100 m
• Extron XTP DTP 24 plugs installed at the factory, with molded strain relief
• Independently verified against HDBaseT Alliance performance requirements

Where It Is Used

Six feet is a rack-internal or wall-plate-to-device length: linking a DTP transmitter to a shielded patch field, feeding an XTP matrix card from a coupler, or connecting a lectern plate to a nearby scaler. Common in classroom racks, boardroom credenzas, control room consoles and hospital AV cabinets.

Specifications at a Glance

• Length: 6' (1.8 m)
• Bandwidth: 475 MHz certified to 330' (100 m)
• Construction: 4 twisted pairs, 24 AWG solid bare copper, 100 ohm nominal impedance
• Jacket: blue fire-resistant PVC, NEC 800 CMP / UL 910, 75 °C
• Extron lists part 26-695-06 as retired

Also referenced as Extron XTPDTP24P6, XTP-DTP-24P-6, part number 2669506.
