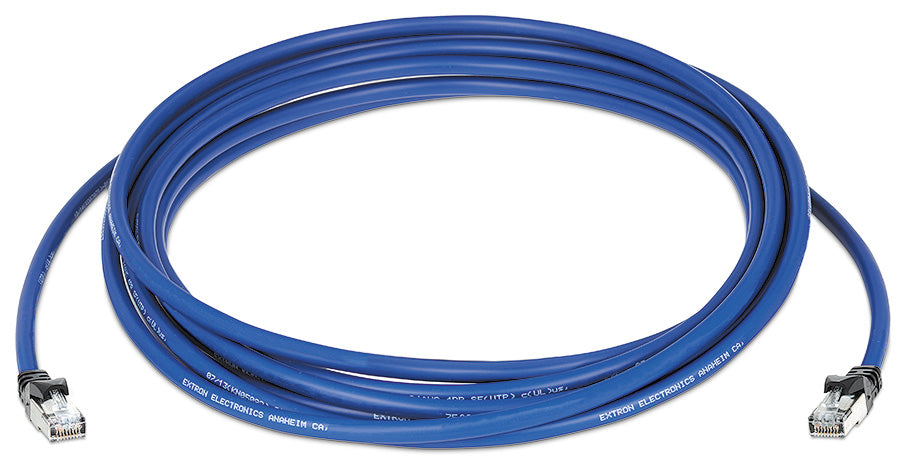

Extron XTP DTP 24P/50 (part number 26-695-50) — a 50 ft plenum-rated twisted pair assembly for Extron XTP Systems and DTP Systems extension.

Longer twisted pair runs are where sloppy field terminations show up first: a marginal crimp that passes a continuity test can still drop packets once 4K video is on the link. Extron sidesteps that by terminating this cable in the factory. XTP DTP 24 bulk stock is cut to 50 ft, fitted with Extron XTP DTP 24 plugs, and finished with molded strain relief at each end. The CMP jacket allows installation in return-air ceiling spaces.

Key Capabilities

• Bandwidth certified to 475 MHz on runs reaching 330 ft (100 m)
• SF/UTP build — four 24 AWG solid bare copper twisted pairs
• Aluminum/Mylar foil under a 55% tinned copper braid for double screening
• Exceeds the HDMI pixel error limit — under one error per billion pixels at 100 m
• Extron XTP DTP 24 plugs installed at the factory, with molded strain relief
• Independently verified against HDBaseT Alliance performance requirements

Where It Is Used

Fifty feet reaches from a floor rack to a display on the far wall of a large conference room, from a lectern to a ceiling projector in a lecture hall, or between adjacent rooms in a divisible training space. The plenum jacket suits hospital corridors, campus buildings and control rooms where cable must run above a suspended ceiling.

Specifications at a Glance

• Length: 50' (15.2 m)
• Bandwidth: 475 MHz certified to 330' (100 m)
• Construction: 4 twisted pairs, 24 AWG solid bare copper, 100 ohm nominal impedance
• Jacket: blue fire-resistant PVC, NEC 800 CMP / UL 910, 75 °C
• Shipping carton: 2.25 x 9.5 x 9.5 in (5.7 x 24.1 x 24.1 cm), 1.98 lbs (0.9 kg)

Also referenced as Extron XTPDTP24P50, XTP-DTP-24P-50, part number 2669550.
