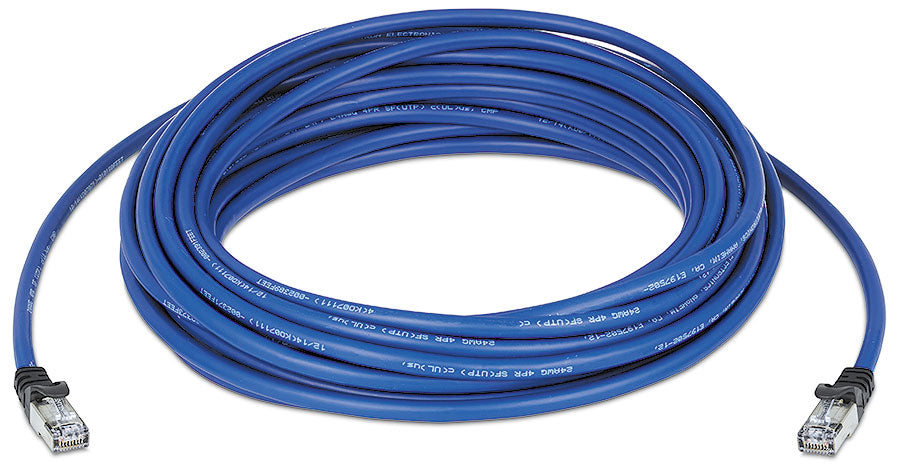

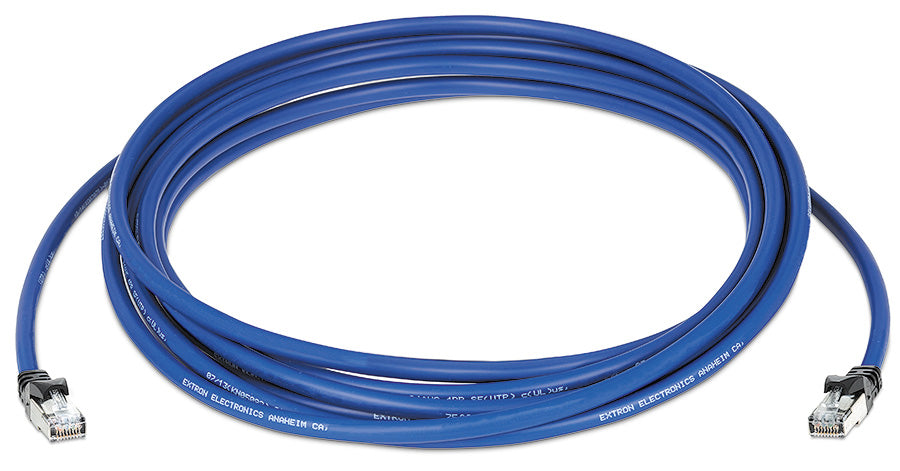

Extron XTP DTP 24P/35 (part number 26-695-35) — a 35 ft factory-terminated plenum cable for Extron XTP Systems and DTP Systems links.

Pulling an AV link through a return-air ceiling normally ends with an installer crimping RJ-45 plugs on a ladder and hoping the terminations survive 4K data rates. This assembly removes that step. Extron builds it from XTP DTP 24 bulk stock, fits Extron XTP DTP 24 plugs on both ends at the factory, and adds molded strain relief so pulling force lands on the plug body rather than on the conductors. The CMP-rated jacket clears it for air-handling voids.

Key Capabilities

• Bandwidth certified to 475 MHz on runs reaching 330 ft (100 m)
• Four twisted pairs of 24 AWG solid bare copper in an SF/UTP build
• Two-layer screening: aluminum/Mylar foil under a 55% tinned copper braid
• Exceeds the HDMI pixel error limit — under one error per billion pixels at 100 m
• Extron XTP DTP 24 plugs installed at the factory, with molded strain relief
• Independently verified against HDBaseT Alliance performance requirements

Where It Is Used

A 35 ft run typically covers the distance from an equipment closet or credenza rack to a ceiling projector or wall display in a mid-size classroom, boardroom or training room. Because the jacket carries a CMP rating, the same cable can be pulled through plenum ceiling voids in commercial buildings, hospitals and campus facilities.

Specifications at a Glance

• Length: 35' (10.6 m)
• Bandwidth: 475 MHz certified to 330' (100 m)
• Construction: 4 twisted pairs, 24 AWG solid bare copper, 100 ohm nominal impedance
• Jacket: blue fire-resistant PVC, NEC 800 CMP / UL 910, 75 °C
• Shipping carton: 1.25 x 10.0 x 10.0 in (3.2 x 25.4 x 25.4 cm), 1.4 lbs (0.64 kg)

Also referenced as Extron XTPDTP24P35, XTP-DTP-24P-35, part number 2669535.
