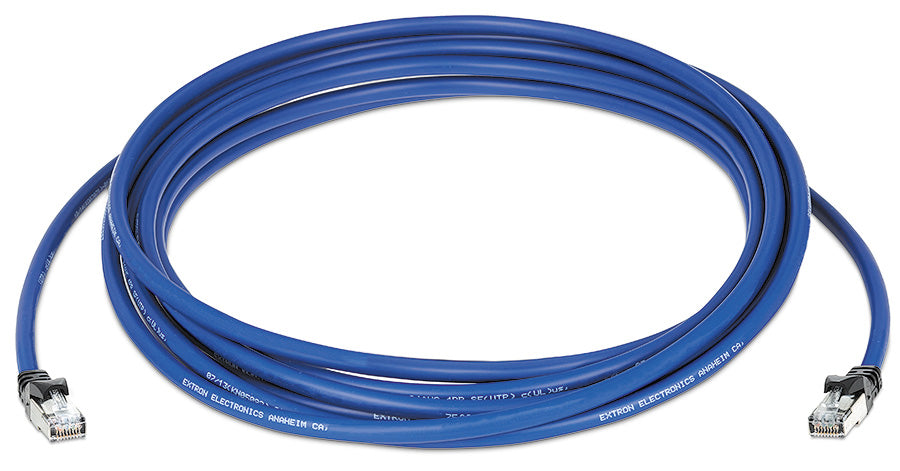

Extron XTP DTP 24P/300 (part number 26-695-300) — a 300' (91.4 m) CMP plenum-rated shielded twisted pair assembly, the longest length Extron built in the XTP DTP 24P Series. Now retired.

Three hundred feet approaches the published limit of the cable itself, which Extron certifies to 475 MHz at distances up to 330 feet (100 m). Specify it with the distance table in hand: DTP3 uncompressed 4K/60 at 4:4:4 is rated only to 175 feet (53 m) on XTP DTP 24 cable, so at 300 feet the assembly is intended for DTP2, DTP, XTP II and XTP. Everything else matches the shorter members of the family — SF/UTP with four 24 AWG twisted pairs inside an overall braid and foil shield, XTP DTP 24 Plugs and molded strain reliefs at both ends, and a plenum jacket for the whole run.

Key Capabilities

• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• Supports DTP2, DTP, XTP II and XTP at this length
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Stadiums, arenas and exhibition halls, transport terminals with distributed displays, large campus links where the plenum is the pathway, and service work on legacy XTP or DTP systems that used this length.

Specifications at a Glance

• Cable length: 300' (91.4 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• DTP3 4K/60 4:4:4 is specified to 175' (53 m) on XTP DTP 24 cable
• Status: retired by Extron

Also referenced as Extron XTPDTP24P300, XTP-DTP-24P-300, part number 26695300.
