Extron XTP DTP 24P/3 Plenum Shielded Twisted Pair Cable
- • Extron XTP DTP 24P/3 3 ft plenum STP cable
- • 3 ft (90 cm) CMP plenum-rated STP assembly
- • 475 MHz certified on runs up to 330 ft (100 m)
- • Sales, replacement and exchange
- • Part# 26-695-03 / 2669503
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

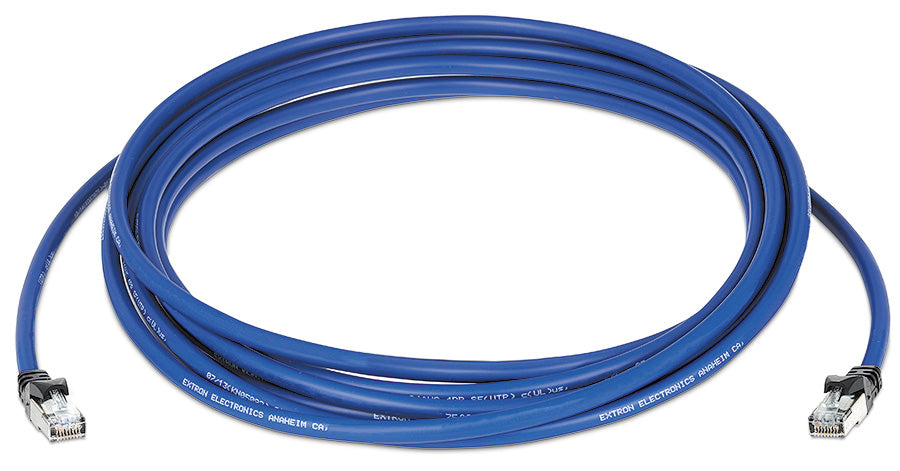

Extron XTP DTP 24P/3 (part number 26-695-03) - a 3' (90 cm) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems, retired by Extron.
The plenum jacket is the reason this short length existed: once a specification calls for CMP throughout, every segment has to comply, including the three-foot jumper between a transmitter and a punch-down jack. Extron builds the assembly on XTP DTP 24 bulk cable - SF/UTP, four 24 AWG twisted pairs inside an overall braid and foil shield - and terminates both ends in the factory with XTP DTP 24 Plugs and molded strain reliefs. The bulk cable is certified to 475 MHz at distances up to 330 feet (100 m).
Key Capabilities
- CMP plenum-rated jacket for return-air ceiling spaces
- Bandwidth certified to 475 MHz at distances up to 330' (100 m)
- DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
- SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
- Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
- Independently tested against HDBaseT Alliance performance requirements
Where It Is Used
Ceiling-mounted receivers fed from a nearby jack, plenum-rated equipment enclosures above the tile line, projector mounts with a local punch-down point, and any installation where fire code rules out a non-plenum patch lead.
Specifications at a Glance
- Cable length: 3' (90 cm)
- Jacket: CMP plenum-rated
- Bandwidth: certified to 475 MHz to 330' (100 m)
- Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
- Status: retired by Extron
Frequently asked questions about the Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable
Does Ampronix sell the Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable (26-695-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable. Call Ampronix for a quote.
Is the Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable listed under other names?
Yes. The Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable is also referenced as Extron XTPDTP24P3, XTP-DTP-24P-3, part number 2669503.
What are the key features of the Extron XTP DTP 24P/3 3 ft Plenum Shielded Twisted Pair Cable?
Key points: CMP plenum-rated jacket for return-air ceiling spaces; Bandwidth certified to 475 MHz at distances up to 330' (100 m); DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m); SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield. Call Ampronix to confirm details for your application.
Also referenced as Extron XTPDTP24P3, XTP-DTP-24P-3, part number 2669503.
