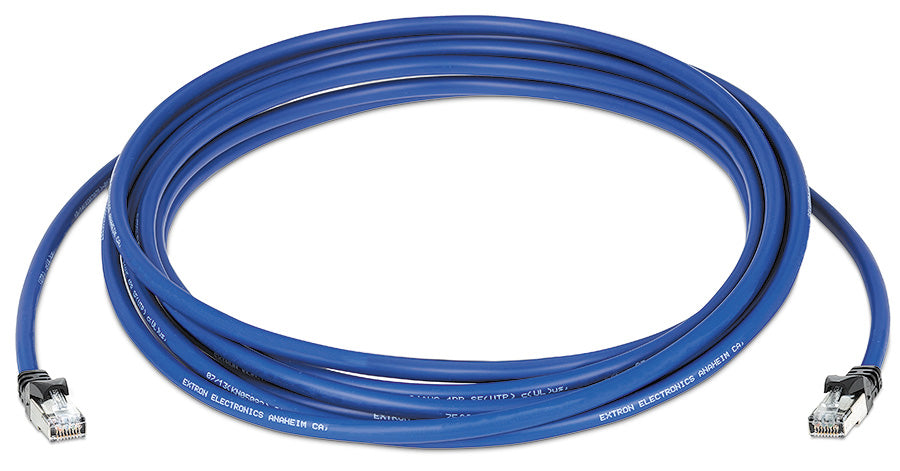

Extron XTP DTP 24P/25 (part number 26-695-25) — a 25' (7.6 m) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems.

Twenty-five feet is the shortest current length in the XTP DTP 24P range and the one that covers most single-room ceiling routes: rack to projector, wall plate to a receiver above the display, or a run across a classroom void. Because the jacket is CMP plenum-rated, it can take the direct route through a return-air ceiling instead of being pulled in conduit. Underneath it is Extron XTP DTP 24 bulk cable, SF/UTP, four 24 AWG twisted pairs inside an overall braid and foil shield, certified to 475 MHz at up to 330 feet (100 m).

Key Capabilities

• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Classrooms and meeting rooms with ceiling-mounted projectors, huddle spaces with a display on the far wall, laboratory and clinical rooms with strict fire separation, and commercial fit-outs where the AV route runs through the plenum.

Specifications at a Glance

• Cable length: 25' (7.6 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Connectors: Extron XTP DTP 24 Plugs, factory-terminated

Also referenced as Extron XTPDTP24P25, XTP-DTP-24P-25, part number 2669525.
