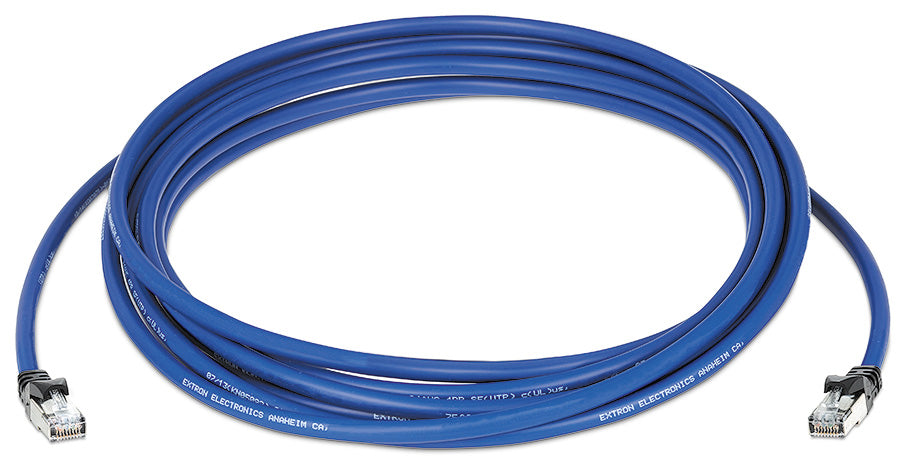

Extron XTP DTP 24P/200 (part number 26-695-200) — a 200' (61.0 m) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems, retired by Extron.

Two hundred feet of plenum-rated cable delivered as one finished assembly removes both the field-termination risk and the jacket-rating argument on a long ceiling route. One planning note: Extron specifies DTP3 uncompressed 4K/60 at 4:4:4 over XTP DTP 24 cable only out to 175 feet (53 m), so at this length the assembly is intended for DTP2, DTP, XTP II and XTP. The cable remains certified to 475 MHz at distances up to 330 feet (100 m), with four 24 AWG twisted pairs inside an overall braid and foil shield.

Key Capabilities

• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• Supports DTP2, DTP, XTP II and XTP at this length
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Arenas and convention centres, transport hubs with distributed signage, multi-building campus links routed through return-air ceilings, and maintenance of plenum-specified XTP or DTP infrastructure built around this length.

Specifications at a Glance

• Cable length: 200' (61.0 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• DTP3 4K/60 4:4:4 is specified to 175' (53 m) on XTP DTP 24 cable
• Status: retired by Extron

Also referenced as Extron XTPDTP24P200, XTP-DTP-24P-200, part number 26695200.
