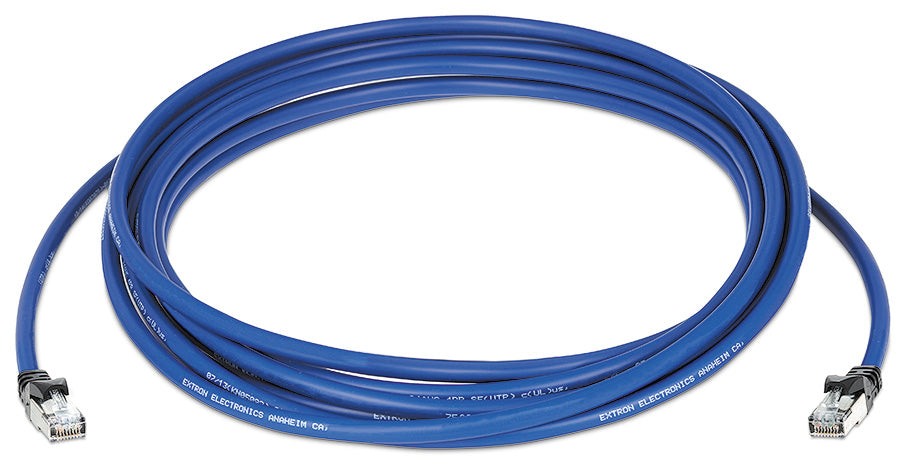

Extron XTP DTP 24P/175 (part number 26-695-175) — a 175' (53.3 m) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems, retired by Extron.

This is a deliberately chosen length. Extron specifies 175 feet (53 m) as the maximum distance for DTP3 uncompressed 4K/60 at 4:4:4 over XTP DTP 24 cable, so this assembly is the longest plenum-rated member of the family that still carries that mode. Beyond it, DTP2, DTP, XTP II and XTP remain supported. Construction is the standard build: SF/UTP with four 24 AWG twisted pairs inside an overall braid and foil shield, XTP DTP 24 Plugs and molded strain reliefs at both ends.

Key Capabilities

• 175' (53.3 m) is the stated distance limit for DTP3 4K/60 at 4:4:4 on this cable
• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Venues designed right up to the DTP3 distance budget with a plenum pathway, large auditoriums and convention halls, hospital campuses with strict fire separation, and replacement work on systems specified around this exact length.

Specifications at a Glance

• Cable length: 175' (53.3 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Status: retired by Extron

Also referenced as Extron XTPDTP24P175, XTP-DTP-24P-175, part number 26695175.
