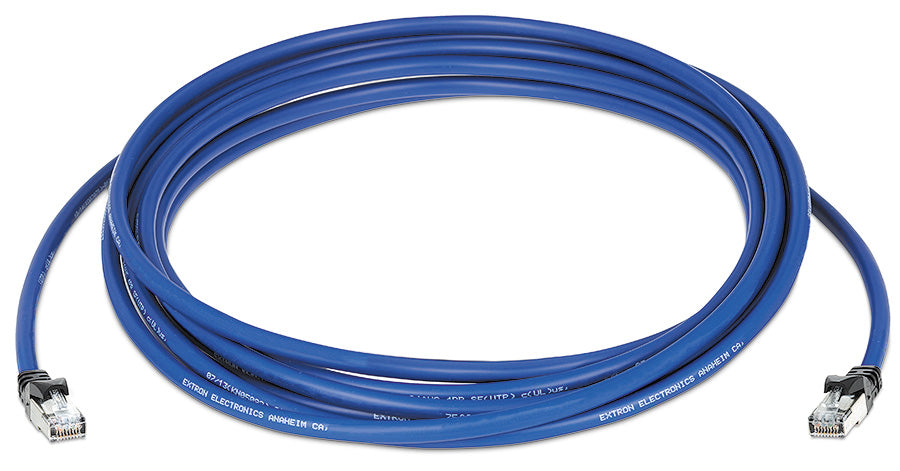

Extron XTP DTP 24P/150 (part number 26-695-150) — a 150' (45.7 m) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems, retired by Extron.

At 150 feet this part behaves like structured cabling but ships as one factory-finished item, which is exactly what a contractor wants when the route is a return-air ceiling and every metre of it has to be CMP. The cable is Extron XTP DTP 24 bulk in an SF/UTP arrangement — four 24 AWG twisted pairs inside an overall braid and foil shield — and both ends carry XTP DTP 24 Plugs with molded strain reliefs. Extron certifies the bulk cable to 475 MHz out to 330 feet (100 m) and has had it verified independently against HDBaseT Alliance requirements.

Key Capabilities

• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Auditoriums and convention space, hospital wings served from a central equipment room, campus buildings with long horizontal ceiling routes, and maintenance of plenum-specified XTP or DTP systems built around this length.

Specifications at a Glance

• Cable length: 150' (45.7 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Status: retired by Extron

Also referenced as Extron XTPDTP24P150, XTP-DTP-24P-150, part number 26695150.
