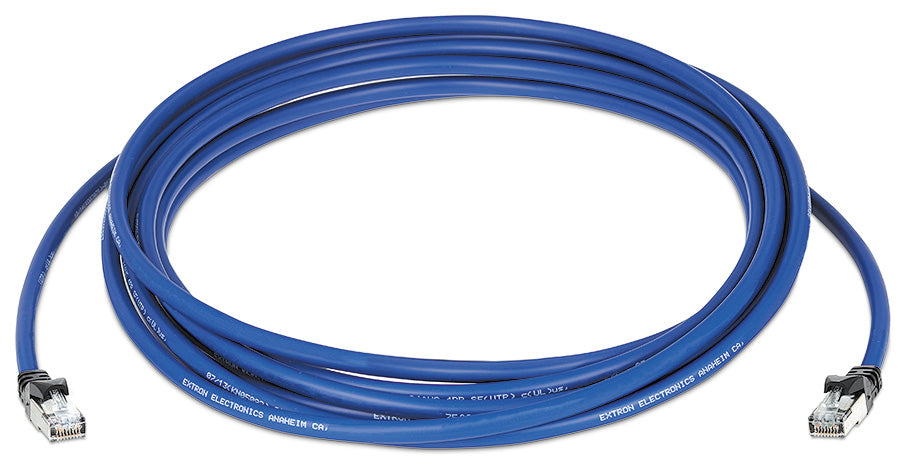

Extron XTP DTP 24P/125 (part number 26-695-125) — a 125' (38.1 m) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems, retired by Extron.

Extron once offered the plenum range well beyond a hundred feet for buildings where the ceiling void was the pathway and a splice was not an option. This is one of those extended lengths. Construction matches the rest of the family: XTP DTP 24 bulk cable, SF/UTP, four 24 AWG twisted pairs inside an overall braid and foil shield, with XTP DTP 24 Plugs and molded strain reliefs fitted at both ends. The bulk cable is certified to 475 MHz at distances up to 330 feet (100 m).

Key Capabilities

• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Large venues and campus buildings with long in-ceiling routes, legacy XTP or DTP infrastructure needing a like-for-like plenum replacement, and service work on systems commissioned before this length was withdrawn.

Specifications at a Glance

• Cable length: 125' (38.1 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Status: retired by Extron

Also referenced as Extron XTPDTP24P125, XTP-DTP-24P-125, part number 26695125.
