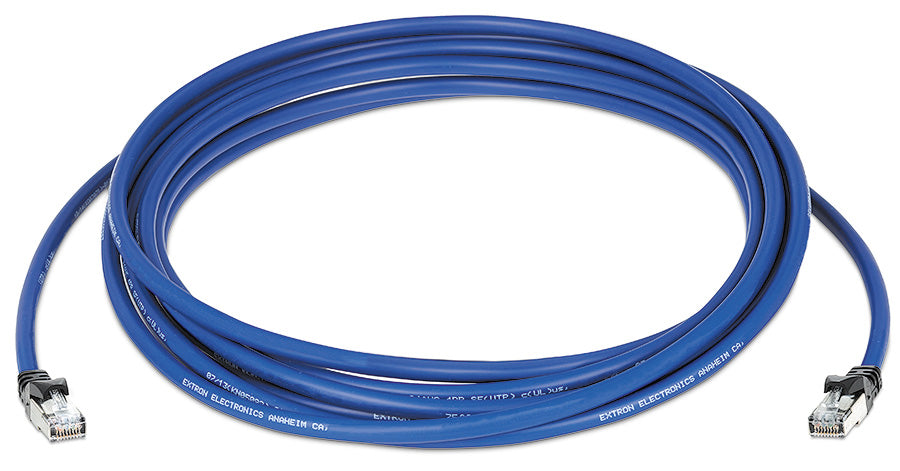

Extron XTP DTP 24P/12 (part number 26-695-12) — a 12' (3.6 m) CMP plenum-rated shielded twisted pair assembly for Extron XTP and DTP systems, retired by Extron.

Twelve feet covers the hop from a ceiling jack to a projector mount, or from an above-tile enclosure to a display bracket, and the plenum jacket keeps the whole path compliant. Extron uses XTP DTP 24 bulk cable in an SF/UTP arrangement — four 24 AWG twisted pairs inside an overall braid and foil shield — and fits XTP DTP 24 Plugs with molded strain reliefs at both ends in the factory, so the shield stays continuous through the connector rather than stopping at a field crimp.

Key Capabilities

• CMP plenum-rated jacket for return-air ceiling spaces
• Bandwidth certified to 475 MHz at distances up to 330' (100 m)
• DTP3 uncompressed 4K/60 at 4:4:4 supported out to 175' (53 m)
• SF/UTP construction: four 24 AWG twisted pairs in a braid and foil shield
• Factory-terminated with Extron XTP DTP 24 Plugs and molded strain reliefs
• Independently tested against HDBaseT Alliance performance requirements

Where It Is Used

Classroom and meeting-room ceilings where the receiver sits beside the projector, plenum enclosures serving a display a few feet away, and retrofit work in buildings whose AV pathway shares a return-air space with mechanical services.

Specifications at a Glance

• Cable length: 12' (3.6 m)
• Jacket: CMP plenum-rated
• Bandwidth: certified to 475 MHz to 330' (100 m)
• Cable: SF/UTP, four 24 AWG twisted pairs, overall braid and foil shield
• Status: retired by Extron

Also referenced as Extron XTPDTP24P12, XTP-DTP-24P-12, part number 2669512.
